Description

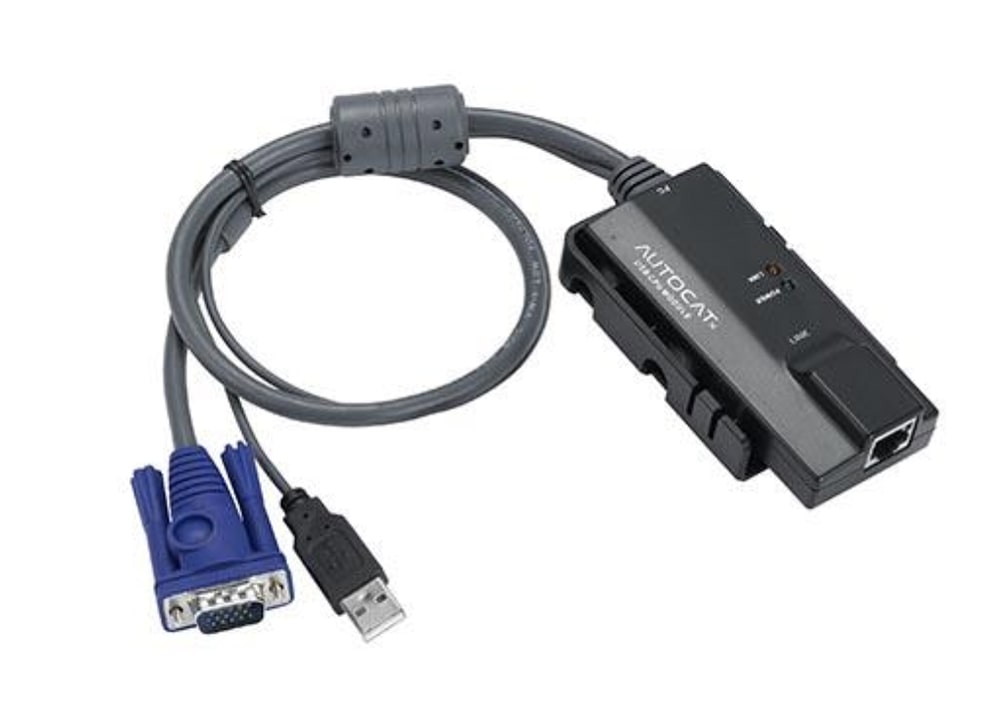

Product ID: TR9200AU
Description:
Product Features:
- Hot-pluggable --add or remove computers without having to power down the switch
- Keyboard Mouse Simulation-The server is working normally when the KVM cables are pulled out or be connected to another port
- Superior video quality-Resolution is up to 1600x1200 within 150m
- Support firmware update
- Small and lightweight
|
Power light flashing green |
The product is power on |
|
Power light is green |
The product has been connected to the KVM switch |
|
Link light fast blink |
The product is communicating with the computer |
|
Link light is orange |
The product is selected by the KVM switch |
|
PC VGA connector |
SPHD-15F（including keyboard and mouse） |
|
Keyboard Mouse connector of PC |
USB Type A |
|
Console Connector |
RJ-45 |
|
Keyboard and Mouse |
USB |
|
Max transmitting distance |
150M |
|
Material |
Plastic |
|
Working Temperature |
0~50℃ |
|
Store Temperature |
-20~60℃ |
|
Humidity |
0~80％，Non-Condensing |
|
Weight（kg） |
200g |
