Description
Product ID: TRS101KED
Description:
The TRS101KED USB DVI HDBaseT™ KVM Extender offers you simple integration with any USB supportive PC system with incredible remote-control via single Cat5 / Cat6 cable connector.
A great remote powering option for control centers, medical facilities, industrial warehouses, and extended workstations that need the additional room to work from a distance.
The USB DVI console offers you a versatile powering solution for all your USB supportive devices that also displays video in premier 1920 x 1200@60Hz screen resolution.
Multiple USB ports in the rear allow you to connect several peripherals like a mouse, keyboard, monitor, printer and more!

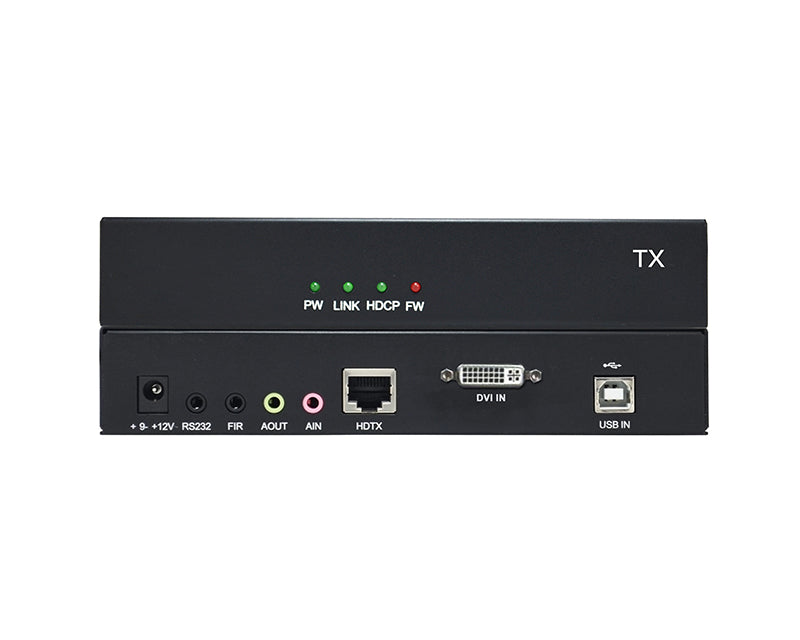

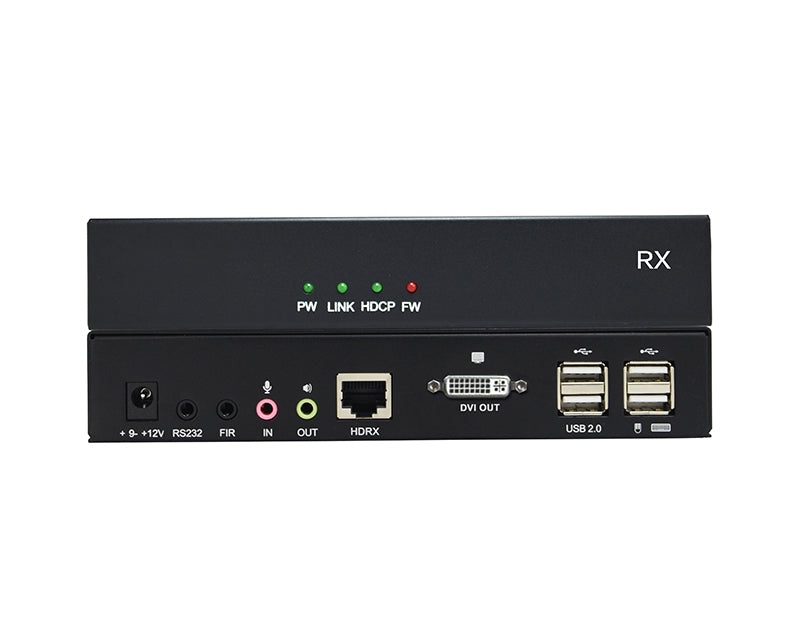

The KVM extender consists of two parts, a local unit transmitter and a remote unit that makes set up easy and effortless without the need for additional software or cables.
Experience the convenience of remote access over your computer system with our USB DVI over cat5e or cat6 KVM Extender and order yours online today!
Product Features:
- Allows access to your computer from a remote console up to 100m.
- Uncompressed video extension with zero loss and in real-time.
- Support USB keyboard and mouse.
- Uncompressed DVI HD video, resolution up to 1920 x 1200 @60Hz
- Transparent USB 2.0 – Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter. .
- Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT
- Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable
- Easy to install - no software required - connecting cables to the devices is all it takes
- Support widescreen
- Plug and play
- Support EDID transparent transmission.

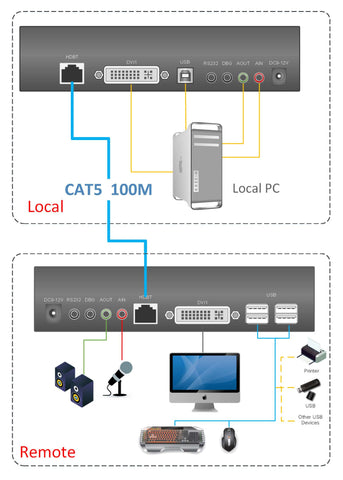

Connection Diagram
Specifications
| Model | TRS101KED (TX) | TRS101KED (RX) | |
| Connector | DVI Input | 1 | NA |
| DVI Output | NA | 1 | |
| Power | 12V | 12V | |
| Network | RJ45 x1 | RJ45 x 1 | |
| Microphone | 3.5MM Stereo Jack (pink) x1 |
3.5MM Stereo Jack (pink) x1 | |
| Speaker | 3.5MM Stereo Jack (green) x1 |
3.5MM Stereo Jack (green) x1 |
|
| USB | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 1920×1200 @ 60 Hz | ||
| Cable | CAT 5E / 6 | ||
| I/R Value | DC12V / 2A | DC12V / 2A | |
| Power Consumption | 4W | 7W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Net Weight (kg) | 0.66 kg | 0.66kg | |
| Product Dimension (W × D × H) |
180mmx122mmx44mm | ||
| Package Dimension (W × D × H) |
395 mm x 274 mm x 110mm | ||
