Description
Product ID: TRS108KFD
Description:

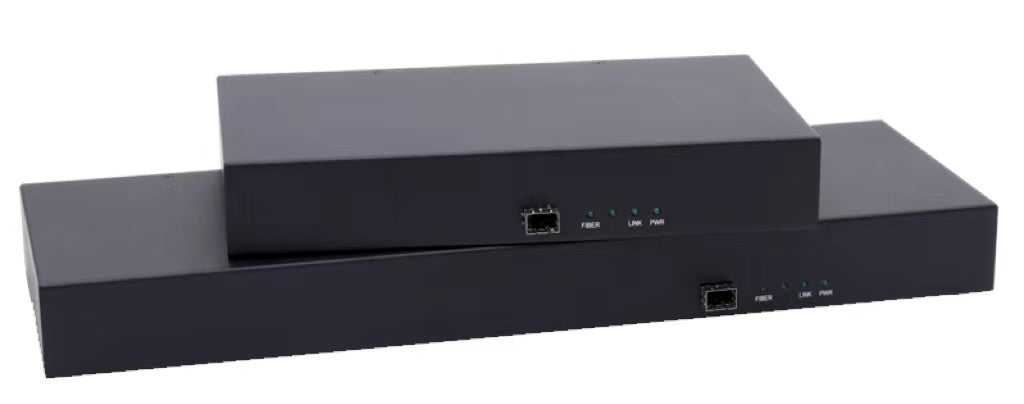

The TRS108KFD DVI high-definition digital KVM extender is a KVM signal extension device that can transmit 1-channel video, mouse, keyboard, audio microphone, and other signals through the optical fiber.
A complete set of TRS108KFD consists of two parts, namely the transmitter (TRS108KFD_TX) and the receiver (TRS108KFD_RX). The sender can connect to the signal source that needs to be transmitted, such as a PC or server. In addition, the sender supports connecting a set of keyboard, mouse, and monitor for control, and can cut off the keyboard, mouse, and video signals of the receiver through the buttons on the sender. The receiver can Connect monitors, keyboards, mice, audio players, and other devices, and can cut off the keyboard, mouse, and video signals of the sender through the buttons on the receiver.
The TRS108KFD DVI high-definition digital KVM extender uses optical fiber for connection and supports single-mode and multi-mode optical fibers. The single-mode transmission distance is 10km and the multi-mode transmission distance is 300m. It supports the transmission of 1 high-quality DVI signal and has a wide range of uses. Note: The optical module bandwidth needs to reach 10Gbit/sec
Order online now to experience the convenience of remote access over your computer system with our USB DVI over fiber KVM Extender!
Product Features:
- Extends video, audio, USB, RS-232 signals via fiber cable
- Supports single-mode and multi-mode optical fiber. The single-mode transmission distance is 10km, and the multi-mode transmission distance is 300m
- Uncompressed video extension with zero loss and in real-time.
- Support USB keyboard and mouse.
- Uncompressed DVI HD video, resolution up to 1920 x 1200 @60Hz
- Transparent USB 2.0 – Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter. .
- Support 1 channel RS232 asynchronous serial port transparent transmission
- Easy to install - no software required - connecting cables to the devices is all it takes
- Plug and play
- Support EDID transparent transmission.
Connection Diagram
Specifications
| Model | TRS108KFD (TX) | TRS108KFD (RX) | |
| Connector | HDMI Input | 1 | NA |
| HDMI Output | 1 | 1 | |
| Power | 220V | 220V | |
| Fiber Module | SFP+ x 1 | SFP+ x 1 | |
| Microphone | 3.5MM Stereo Jack (pink) x1 |
3.5MM Stereo Jack (pink) x1 | |
| Speaker | 3.5MM Stereo Jack (green) x1 |
3.5MM Stereo Jack (green) x1 |
|
| USB | 1 | N/A | |
| USB 2.0 | 2 | USB x 2 | |
| Resolution | 1920×1200 @ 60 Hz | ||
| Cable | Fiber cable | ||
| I/R Value | 100V-240Vac, 50-60Hz , <1.5A | 100V-240Vac, 50-60Hz , <1.5A | |
| Power Consumption | 7.5W | 5.5W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Net Weight (kg) | 2 kg | 1.3kg | |
| Product Dimension (W × D × H) TX |
440×146×44mm | ||
|
Product Dimension (W × D × H) RX |
265×146×44mm | ||
