Description
Product ID: TRS201KFH
Description
With fiber optic connections, you can seamlessly integrate your PC system or any USB enabled device for great remote access that can be used at control centers, medical facilities, industrial warehouses, and extended workstations.
The TRS201KFH USB Dual HDMI over fiber KVM extender integrates the latest HDBaseT™ technology and delivers dual HD HDMI video, USB and stereo audio signals up to 300m by using fiber optics; if the cable type is single mode, the transmitting distance is up to 10km.
Offering you a versatile powering solution for all your USB supportive devices that also displays video in premier 1920x1200 HDMI screen resolution.
Multiple USB ports in the rear allow you to connect several peripherals like a mouse, keyboard, monitor, printer and more!

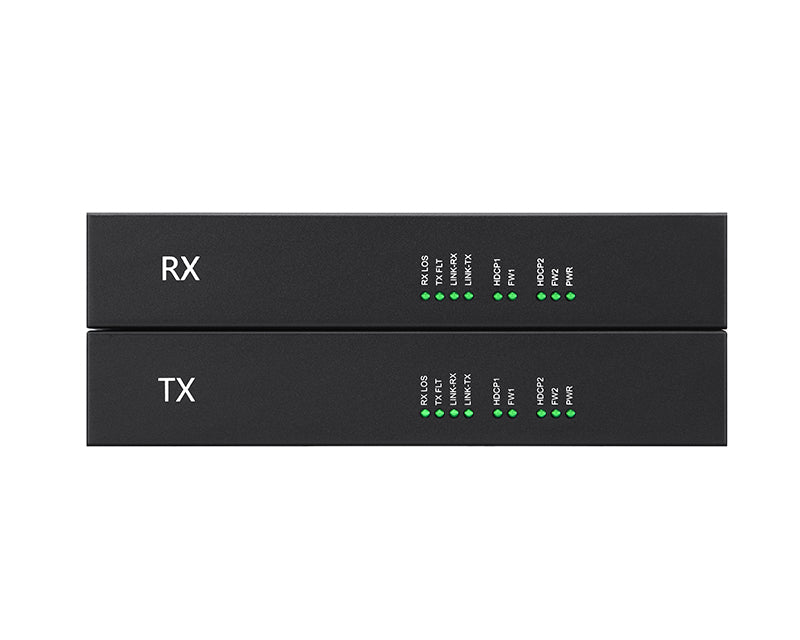

The KVM extender consists of two parts, a local unit transmitter and a remote unit that makes set up easy and effortless without the need for additional software or cables.
Experience the convenience of remote access over your computer system with our USB Dual HDMI over Fiber KVM Extender and order yours online today!
Product Features
- Uses one fiber optic cable to connect the transmitter and receiver units
- Allows HDMI dual view access to your computer from a remote console up to 300m by using multimode type cable, if the cable type is single mode, transmitting distance is up to 10km.
- Uncompressed HDMI HD video, resolution up to 1920 x 1200 @60Hz

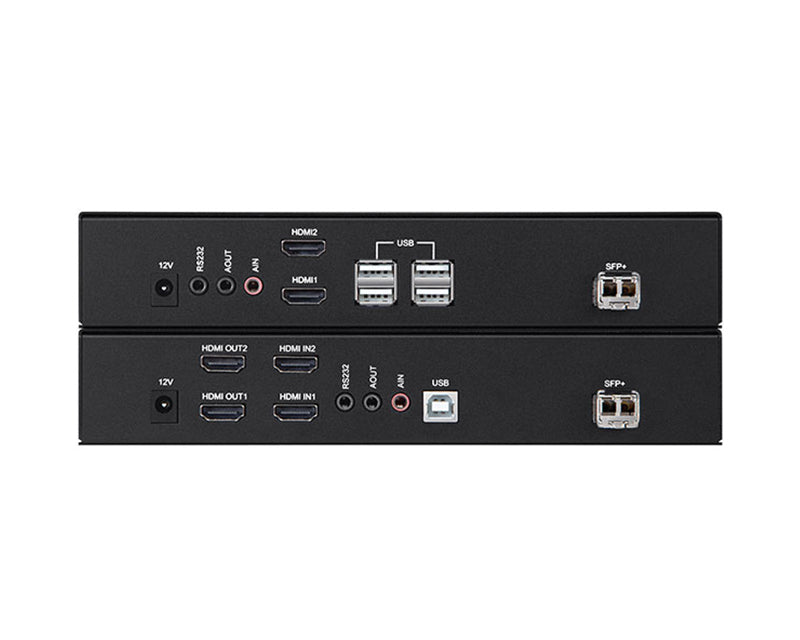

- Transparent USB 2.0 – Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter.
- Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT.
- RS232 serial port – support connection to a serial terminal.
- Support local HDMI output
- Easy to install - no software required - connecting cables to the devices is all it takes
- Plug and play

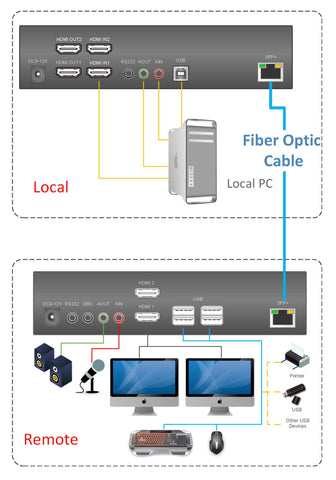

Connection Diagram
Specifications
| Model No. | TRS201KFH_TX | TRS201KFH_RX | |
| Connector | HDMI Input | 2 | NA |
| HDMI Output | 2 | 2 | |
| Power | 12V | 12V | |
| Fiber Module | SFP+ x 1 | SFP+ x 1 | |
| Microphone | 3.5MM Stereo Jack (Pink) |
3.5MM Stereo Jack (Pink) |
|
| Speaker | 3.5MM Stereo Jack (Green) |
3.5MM Stereo Jack (Green) |
|
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | Single-channel: 4K@60Hz (YCbCr 4:2:0) Dual-channel: 1920 X 1200 @ 60 Hz |
||
| Connection Cable | Fiber cable | ||
| Power Input | DC12V / 2A | DC12V / 2A | |
| Power Consumption | 16.5W | 14.5W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Material | Metal | ||
| Net Weight (kg) | 0.85 kg | 0.85kg | |
| Product Dimension (W × D × H) |
214 mm x 113.5 mm x 44mm | ||
| Package Dimension (W × D × H) |
260 mm x 102 mm x 179mm | ||
