Description
Product ID: TRS202KED
Description:
The TRS202KED USB Dual DVI HDBaseT™ KVM extender integrates the latest HDBaseT™ technology and delivers high quality Dual DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable.
A great remote powering option for control centers, medical facilities, industrial warehouses, and extended workstations that need the additional room to work from a distance.
The USB Dual DVI HDBaseT™ KVM extender offers you a versatile powering solution for all your USB supportive devices that also displays video in premier 1920 x 1200@60Hz screen resolution.
Multiple USB ports in the rear allow you to connect several peripherals like a mouse, keyboard, monitor, printer and more!

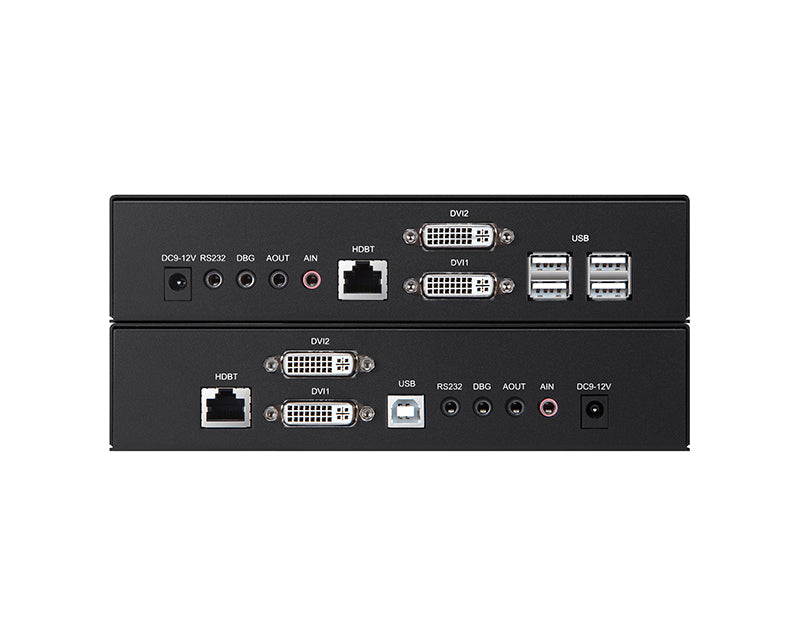

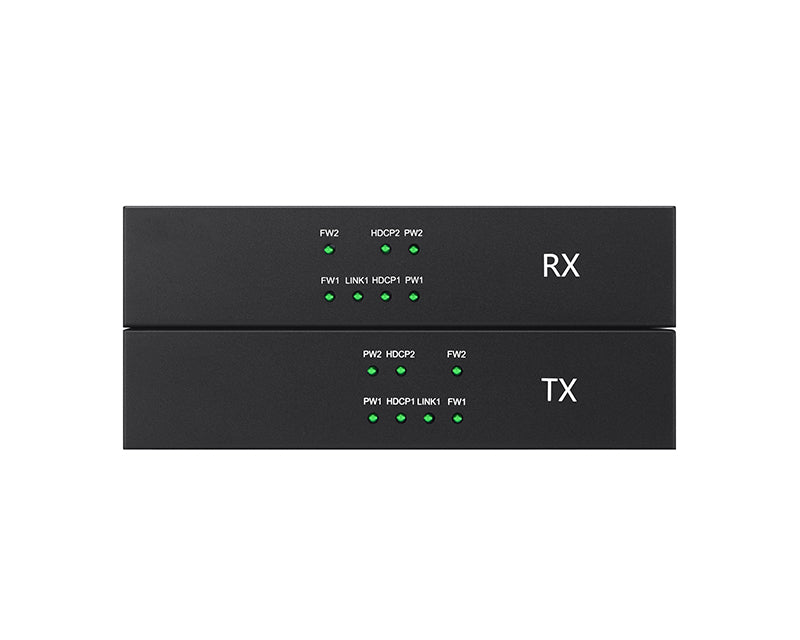

The KVM extender consists of two parts, a local unit transmitter and a remote unit that makes set up easy and effortless without the need for additional software or cables.
Experience the convenience of remote access over your computer system with our USB Dual DVI over cat5e or cat6 KVM Extender and order yours online today!
Product Features:
- Allows dual DVI access to your computer from a remote console up to 100m.
- Support USB keyboard and mouse.
- Uncompressed DVI HD video, resolution up to 1920 x 1080 @60Hz at 100m.
- Transparent USB 2.0 – Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter.
- Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT
- Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable
- Easy to install - no software required - connecting cables to the devices is all it takes.
- Support widescreen.
- Plug and play
- SSupport EDID transparent transmission

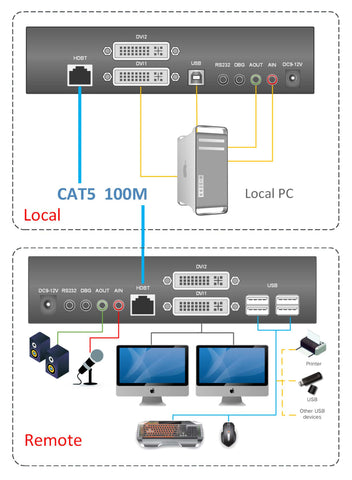

Connection Diagram
Specifications
| Model No. | TRS202KED_TX | TRS202KED_RX | |
| Connectors | DVI Input | 2 | NA |
| DVI Output | NA | 2 | |
| Power | 12V | 12V | |
| Network Port | RJ45 x1 | RJ45 x 1 | |
| Mic | 3.5MM Stereo Jack (pink) |
3.5MM Stereo Jack (pink) |
|
| Speaker | 3.5MM Stereo Jack (green) | 3.5MM Stereo Jack (green) | |
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 1920 X 1200@ 60 Hz (1080P) | ||
| Connecting cable | CAT 5E / 6 | ||
| Power Input | DC12V / 2A | DC12V / 2A | |
| Power consumption | 6.5W | 10.5W | |
| Working Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-Condensing | ||
| Material | Metal | ||
| N.W. (kg) | 0.73 kg | 0.73 kg | |
| Dimension (W × D × H) |
180 mmx 122mm x 44mm | ||
| Package Dimension (W × D × H) |
395 mm x 274 mm x 110mm | ||
