Description
Product ID: TR0117H / TR0817H / TR1617H
The Rackmount KVM Console is a versatile and efficient solution for managing your servers in a rackmount environment. This all-in-one unit offers seamless control and convenience, featuring a 17.3" Full HD 1080p monitor , full 99-key keyboard and touchpad in a single rail housing that occupies only 1U of rack spacea.
Equipped with a single HDMI KVM port, this console lets you connect and control your servers easily. The 17.3-inch rack mount monitor delivers a crisp and clear display with a resolution of 1920 x 1080 @60Hz, ensuring an optimal viewing experience.
Designed with a slim 1U form factor, this LCD KVM drawer saves valuable rack space while providing essential functionality. It boasts a high Mean Time Between Failures (MTBF) of 50,000 hours, ensuring reliable performance and durability.
Effortlessly manage your server infrastructure with this feature-rich rackmount KVM console, combining a high-definition display, intuitive input controls, and space-saving design.
Experience the convenience of 17.3'' Rackmount LCD KVM Console - 1U, HDMI and order yours online today!
Product Features:
- Integrated rack kvm with 17.3” TFT LCD widescreen monitor, keyboard/touchpad
- 17.3" LCD monitor supports highlight, high definition and high resolution
- Resolution is up to 1920x 1080 60Hz
- Standard HDMI connection-Connect to a server or computer via standard HDMI connector
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
- Support computers with USB keyboard and mouse
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

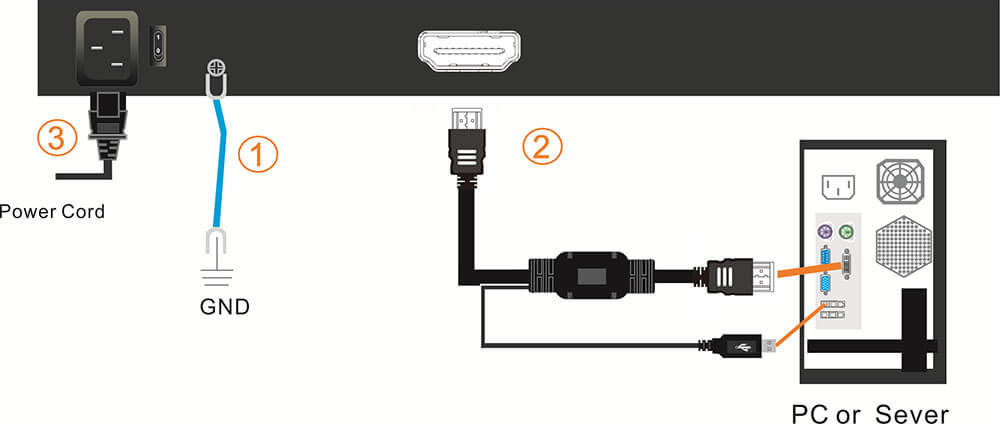

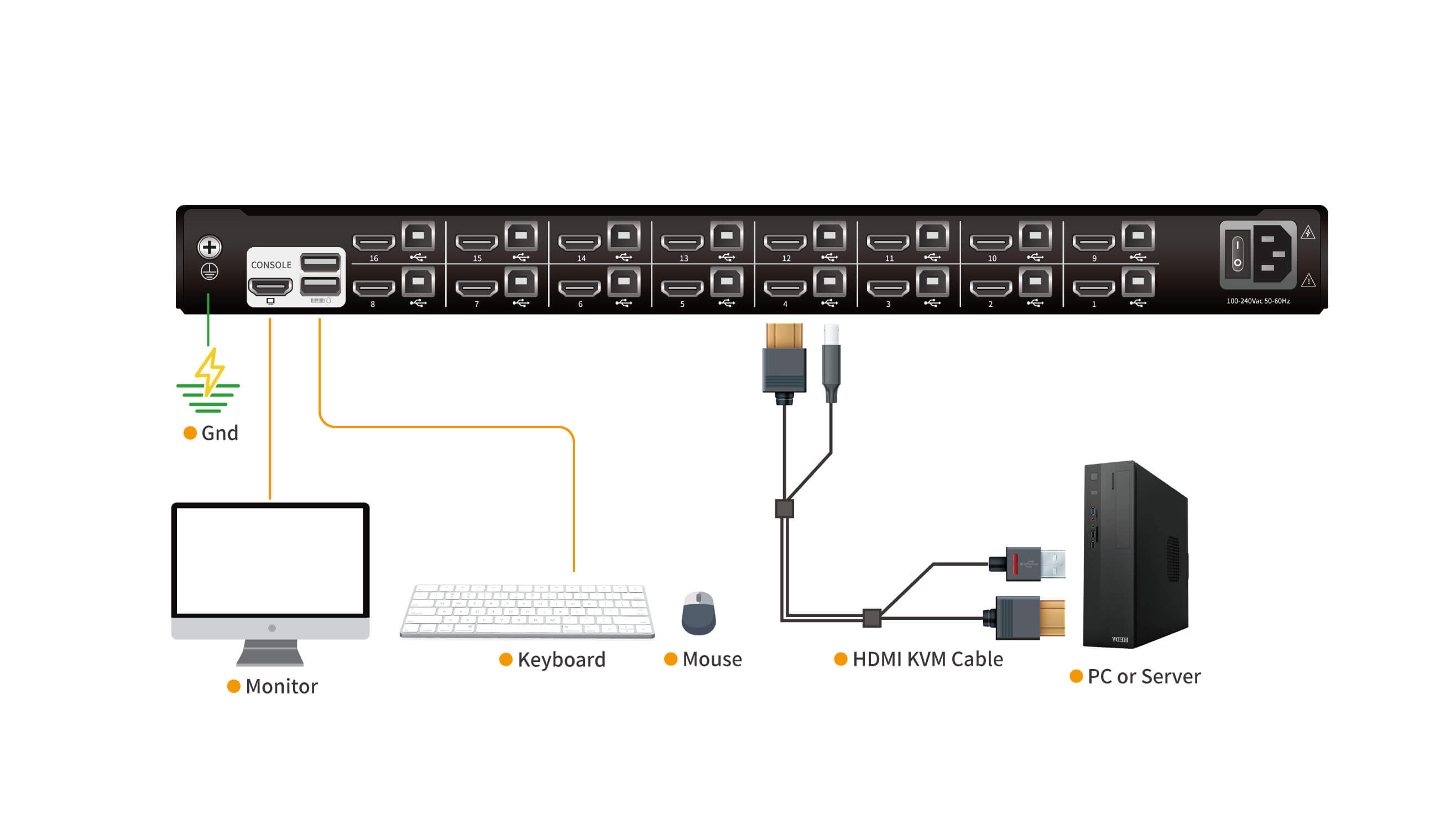

Connection Diagram:
