Description
Product ID: TR0812HT / TR1612HT / TR3212HT
Description:
The CAT5 KVM over IP Switch is an ideal solution for your IT systems, no software is needed, no complicated installation procedures, and no compatibility issues. Which can be installed in a 1U rack space.
The KVM Cat5 KVM over IP Switch connects servers with Cat 5e/6 cable that supports local resolution up to 1920 x 1080 60Hz. The IP Switch also supports servers with VGA, DVI, HDMI, DP port and KVM adapter cables to link to computers/servers.
The KVM Cat5 KVM over IP Switch allows 1 local and 2 remote user access and control up to 8 / 16 / 32 computers from a single console. It uses TCP/IP communications protocol, it can be accessed by its IP address through IE browser or a windows-based client from anywhere on the LAN, WAN or Internet.
The KVM Cat5 KVM over IP Switch allows for centralized management on the computer/server from anywhere, a Windows client is available for remote access. In addition, it also offers an IP receiver for remote access to the switch directly, it supports freely switching between local and remote computer, no need for remote access to the device via the web-based browser.
Experience the convenience of the KVM over IP Switch - 1U, RJ-45 / CAT5, 1-Local / 2-Remote Access and order yours online today!
Product Features:
Hardware feature
- Rack-mountable in 1U system rack
- Standard RJ-45 connector-Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
- Quick release tabs-Insert or remove the device with ease
- One bus for IP kvm switch remote access
- External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
- Controls up to 8 / 16 / 32 computers from a single console
- Support 1 local user and 2 remote user, port share mode allows local and remote users to gain access to a server simultaneously
- Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
- Support servers with VGA/DVI/HDMI/DP port
- Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
- Local Console, Browser, and AP GUIs offer a unified management interface
- Local resolution is up to 1920 x 1080@60Hz
- Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
- Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
- Keyboard and mouse emulation to ensure the normal booting
- Auto scan feature for monitoring user-selected computer
- Hot pluggable--add or remove computers without having to power down the switch
- Adaptive 10 / 100 / 1000 Mbps network
- WEB browser-based remote management
- Resolution for remote console is up to 1920x1080@60Hz
- BIOS-level access
- Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
- Full screen or scalable video display
- Remote users and local users can control the same server/computer synchronously
- Support AES / DES / 3DES encryption
- Support audit function-allows the administrator to audit the device through the system log and operation log
- Exit Macros support
- Configurable user and group permissions for server access and control
- Support strong password
- Support firmware upgrade

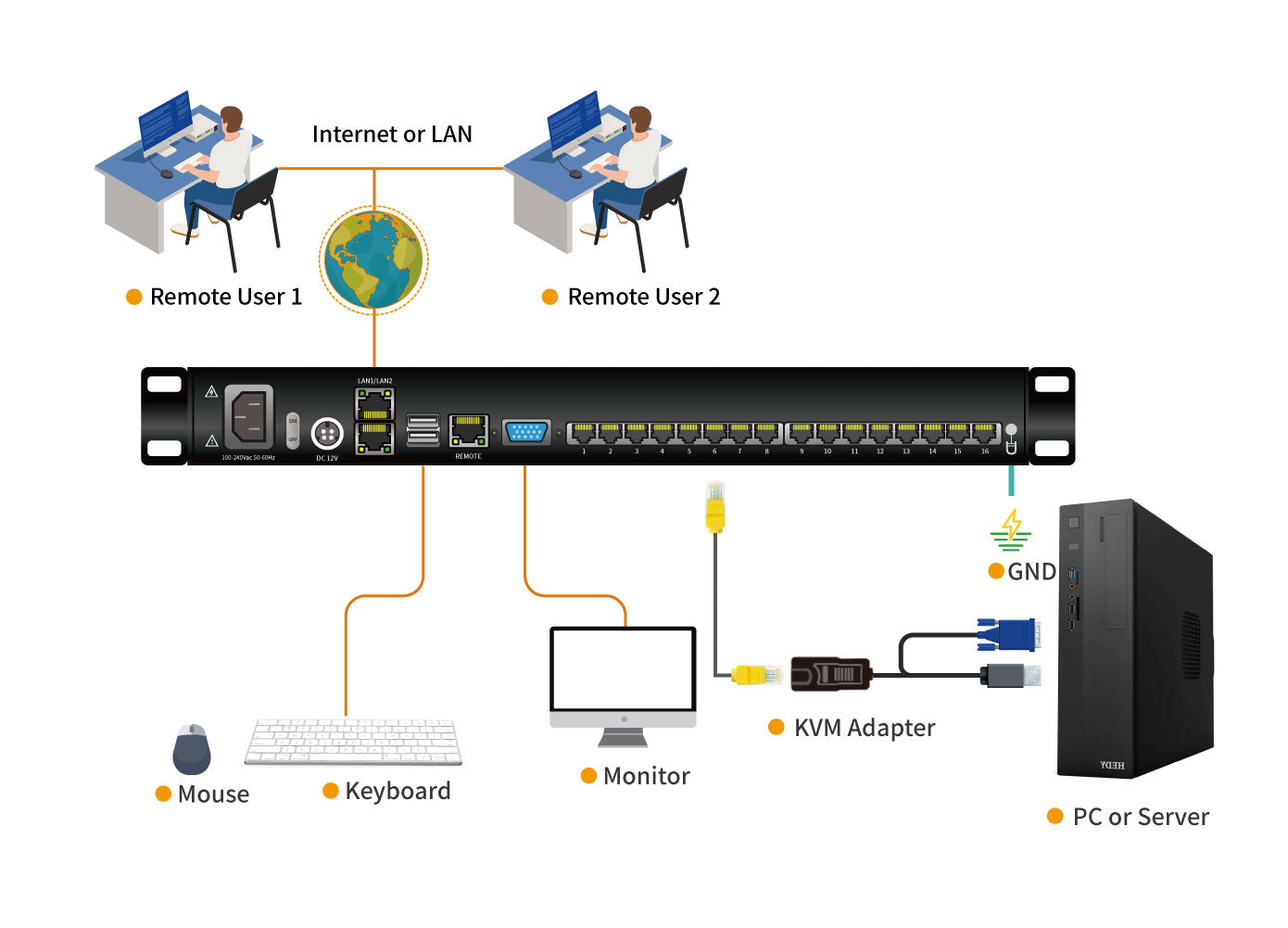

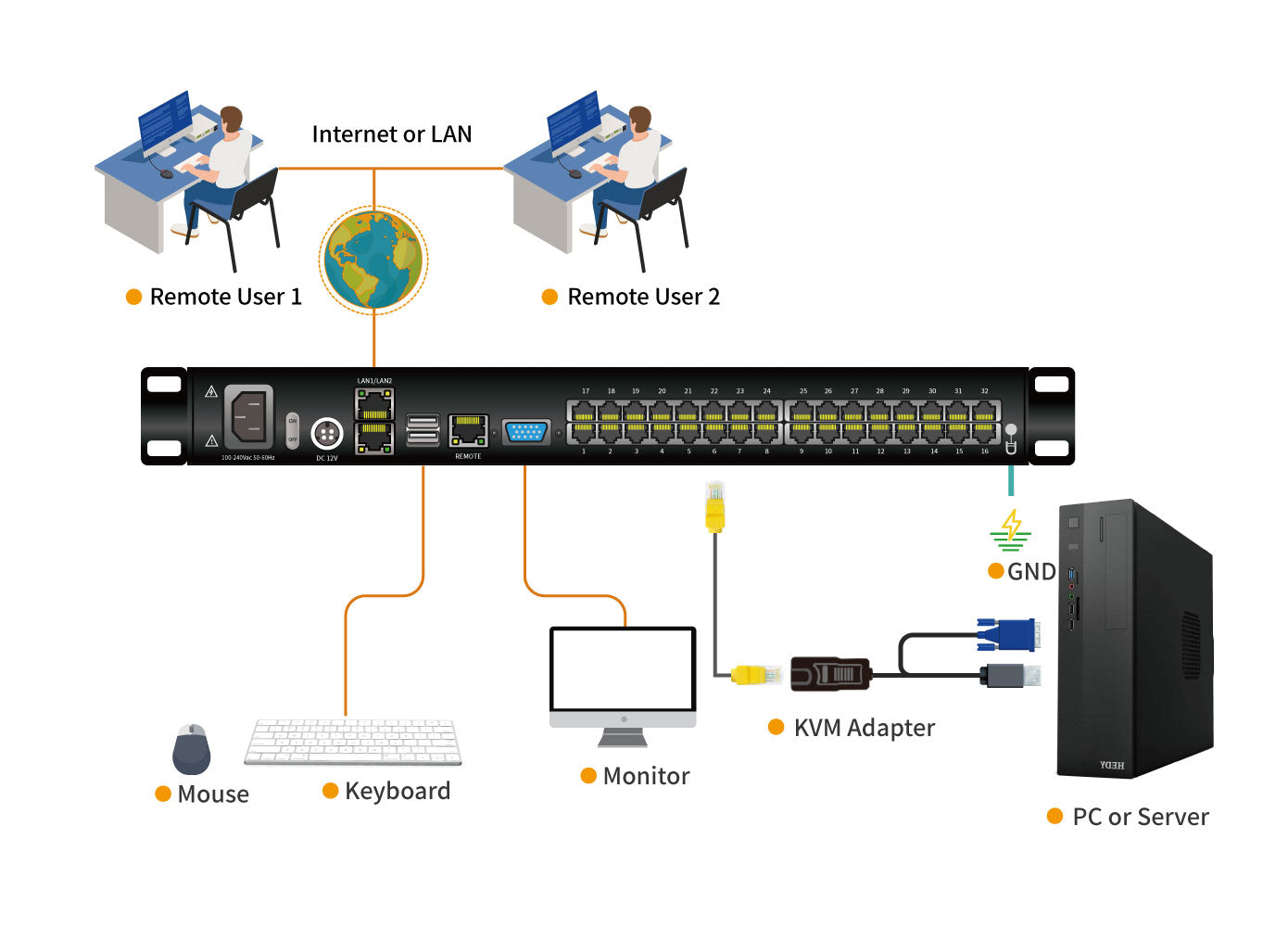

Connection Diagram:
Product Specifications:
| Model | TR0812HT / TR1612HT | ||
| Computer Connection | 8 / 16 | ||
| Port selection | 8 / 16 | ||
| Port selection | Pushbutton, OSD, Web, hotkey | ||
| Connector | Console | Keyboard Mouse |
2x USB TYPE A |
| Monitor | 1-HDB-15 Female(blue) | ||
| KVM Port (RJ-45) | 8 / 16 | ||
| Upgrading switch | 1x RJ11 Female | ||
| Power | 3-Prong AC socket | ||
| Switch | Port Selection | 8 / 16 | |
| Reset | 1x touch-button | ||
| Upgrading switch | 1x toggle switch | ||
| Power | 1x rocker switch | ||
| LEDs | Online (Green) | 8 / 16 | |
| Selected (Orange) | 8 / 16 | ||
| Power | 1(blue) | ||
| Cascade display | 2x 7- Segment (orange) | ||
|
Remote |
Remote control | KVM control (ActiveX control) | |
| Management way | Web | ||
| Security | DES encryption | ||
| Resolution | 1920×1080@60Hz | ||
| I/R Value | 100V-240Vac, 50-60Hz, <1.5A | ||
| Power Consumption | 17W / 18W | ||
| Environment Requirements | Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20— 60 ℃ | ||
| Humidity | 0—80%RH, Non-condensing | ||
| Physical Features | Material | Metal | |
| Weight | 3kg | ||
| Dimension | 433x171x44.5mm | ||
| Model | TR3212HT | ||
| Computer Connection | 32 | ||
| Port selection | 32 | ||
| Port selection | Pushbutton, OSD, Web, hotkey | ||
| Connector | Console | Keyboard Mouse |
2x USB TYPE A |
| Monitor | 1-HDB-15 Female(blue) | ||
| KVM Port (RJ-45) | 32 | ||
| Upgrading switch | 1x RJ11 Female | ||
| Power | 3-Prong AC socket | ||
| Switch | Port Selection | 32 | |
| Reset | 1x touch-button | ||
| Upgrading switch | 1x toggle switch | ||
| Power | 1x rocker switch | ||
| LEDs | Online (Green) | 32 | |
| Selected (Orange) | 32 | ||
| Power | 1(blue) | ||
| Cascade display | 2x 7- Segment (orange) | ||
| Remote |
Remote control | KVM control (ActiveX control) | |
| Management way | Web | ||
| Security | DES encryption | ||
| Resolution | 1920×1080@60Hz | ||
| I/R Value | 100V-240Vac, 50-60Hz, <1.5A | ||
| Power Consumption | 20W | ||
| Environment Requirements | Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20— 60 ℃ | ||
| Humidity | 0—80%RH, Non-condensing | ||
| Physical Features | Material | Metal | |
| Weight | 3.2kg | ||
| Dimension | 433x171x44.5mm | ||
