Description
The HDMI to Dual 3G-SDI Scaler Converter is a broadcast-grade interface converter engineered for demanding live production, staging, and Pro AV environments.
Driven by an advanced FPGA video processing engine with integrated hardware Scaler technology, it takes a single HDMI input signal and converts it into 2 identical, scaled 3G/HD/SD-SDI outputs.
Featuring 9 selectable output resolution presets (up to 1080p@60Hz), operators can easily match different downstream display devices or broadcast systems on-site. Additionally, it features a 6.35mm (1/4") audio jack supporting both balanced and unbalanced analog audio embedding, allowing audio from external mixers or soundboards to be seamlessly integrated into the SDI video stream.
With built-in cable equalization, SDI re-clocking, and USB Type-C firmware update capabilities, this device delivers high flexibility, signal integrity, and 24/7 continuous operation.

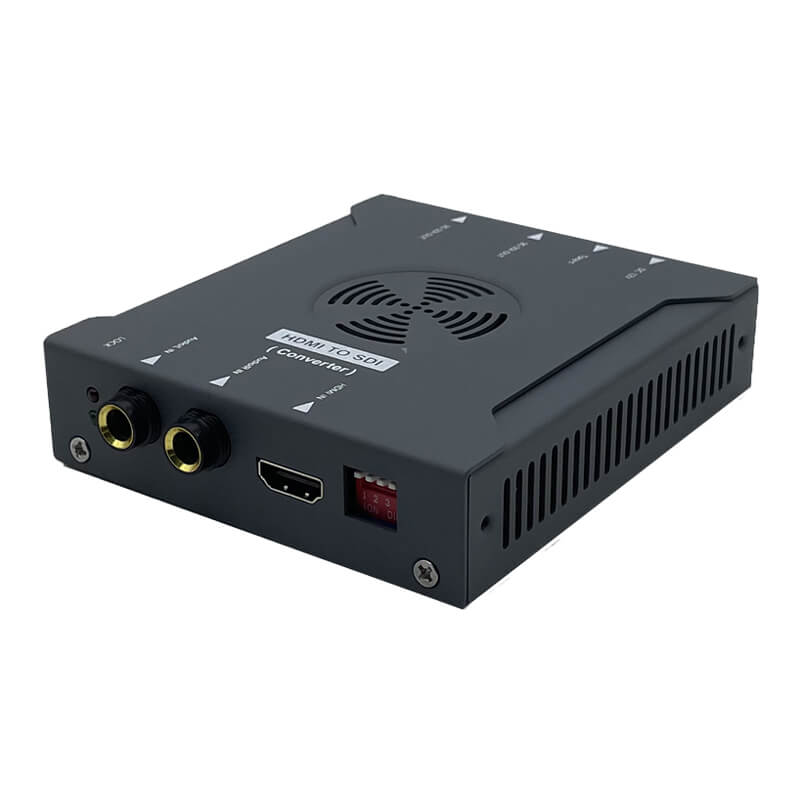

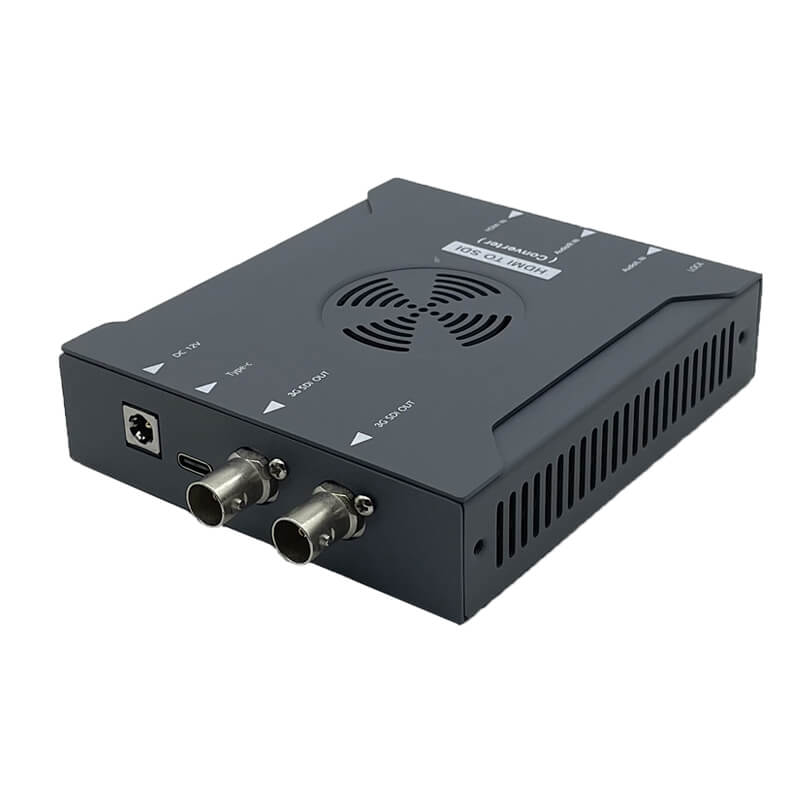

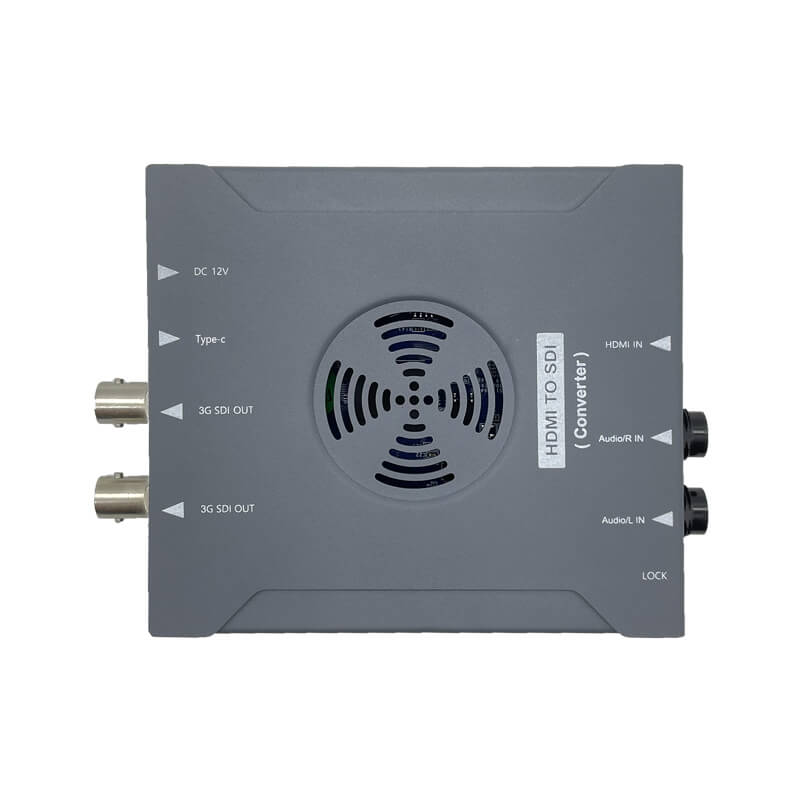

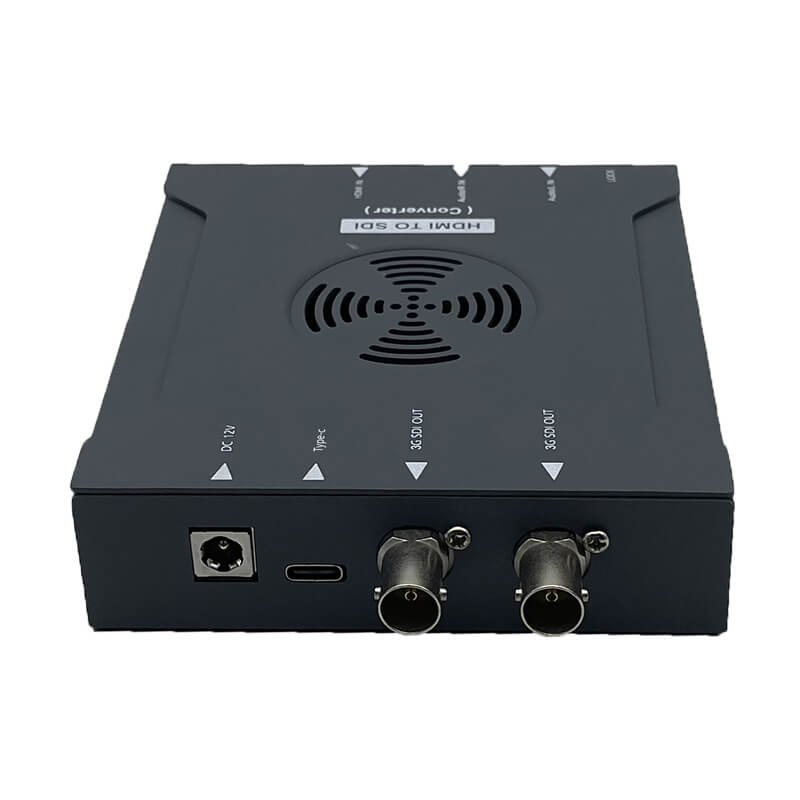

Product Interface
|
Video input: HDMI * 1 Video output: SDI * 2 Audio input: 6.35MM*2 Power input: DC 12V 1A |
Key Features
- HDMI to Dual Scaled SDI Output: Converts 1 HDMI input into 2 scaled 3G/HD/SD-SDI outputs simultaneously.
- FPGA Video Processing Engine & Scaler: Hardware-based scaling with 9 selectable resolution presets (up to 1080p60) to fit mixed-resolution broadcast setups.
- Balanced & Unbalanced Audio Embedding: Equipped with a 6.35mm (1/4") TRS audio jack to embed external balanced or unbalanced analog audio directly into the SDI stream.
- Ultra-Long Distance Transmission: Integrated SDI re-clocking and HDMI/SDI cable equalization ensure stable video transmission up to 100 meters (328 ft).
- Broadcast-Standard Compliance: Compliant with SMPTE 259M, 292M, 297M, 305M, and 424M standards, with low jitter (≤0.2UI) and RGB 4:4:4 / YUV 4:2:2 support.
- USB Type-C Upgrade Port: Features a built-in Type-C interface for seamless firmware updates and maintenance.
- Plug & Play / Wide Power Range: Pure hardware architecture (driver-free), hot-swappable, supporting 5V–12V wide voltage power supply and centralized chassis mounting.
Target Applications
- Designed to bridge consumer/Pro-sumer HDMI sources with professional broadcast and live audio/video environments:
- Broadcast & Live Production: Live TV broadcasting, newsrooms, NLE suites, and OB vans.
- Live Events & Staging: Concerts, stage performances, multimedia display systems, and AV entertainment centers.
- Enterprise & Education: Video conferencing, audio mixer integration, medical teaching/demonstration, sports venues, and security monitoring.
Technical Specifications
Product Name: HDMI to Dual 3G-SDI Scaler Converter with Audio Embedding
Processing Engine: Hardware-based FPGA Processing Engine with Scaler
Video Input Interface: 1 × HDMI Type-A (HDMI 1.3a)
Video Output Interfaces: 2 × SDI BNC (75Ω, Scaled Outputs)
Audio Input Interface: 1 × 6.35mm (1/4") TRS Jack (Supports Balanced & Unbalanced Audio)
Input Resolutions: Auto-adaptive 800×600 up to 1920×1080p@60Hz
Output Resolutions: • 1080p: 30 / 50 / 60 Hz • 1080i: 50 / 60 Hz • 720p: 30 / 60 Hz • SD: 480i @ 60 Hz | 576i @ 60 Hz (9 Selectable Presets)
SDI Data Rate: 143 Mbps ~ 2.97 Gbps
SDI Standards: SMPTE 259M, SMPTE 292M, SMPTE 297M, SMPTE 305M, SMPTE 424M
Color Space & Jitter: YUV 4:2:2 / RGB 4:4:4 | Jitter ≤ 0.2 UI
Video Bandwidth & Level: Bandwidth: 148.5 MHz | Signal Amplitude: 800 mVp-p
Audio Processing: Audio Embedding (48 kHz Sampling Rate) with A/V Sync
Firmware Update Port: USB Type-C Port
Max Transmission Distance: Up to 100 meters / 328 feet (Belden 1694A cable or equivalent)
Power Supply: DC 5V ~ 12V Wide Voltage Input
Power Consumption: 3W (Max)
Operating Temp / Humidity: 0°C ~ +50°C | 20% ~ 70% RH (Non-condensing)
Storage Temp / Humidity: -20°C ~ +70°C | 0% ~ 90% RH (Non-condensing)
Dimensions (L × W × H): 110 × 97 × 24 mm
Weight: Net Weight: 0.30 kg (0.66 lbs) • Gross Weight: 0.70 kg (1.54 lbs)
Connection Diagram
