Description
Product ID: TR2000IDC
Description

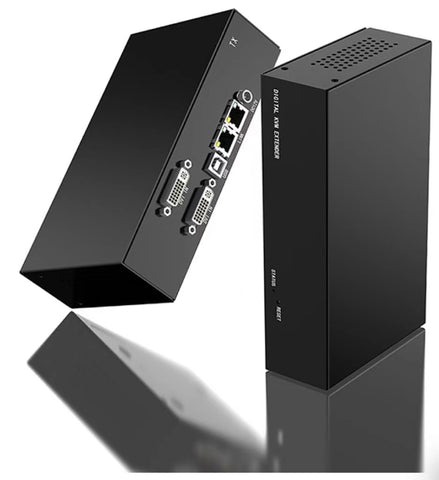

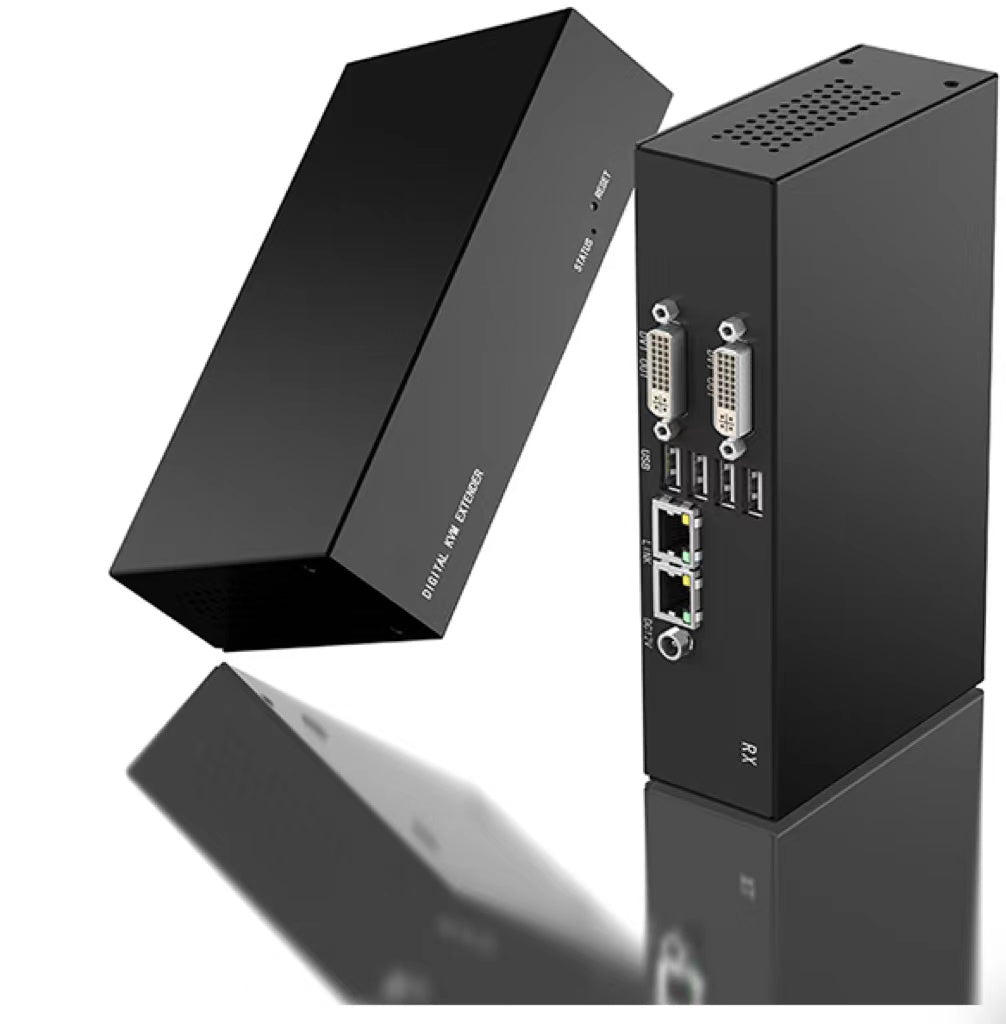

TR2000IDC matrix extenders provide the perfect combination of high image quality and low latency (<5ms). USB and video signals are transmitted through CAT5e/6/7 network cables. Through the matrix switching system, the computer can be placed in the central computer room away from the workbench, which improves safety, reduce the temperature and noise of the working environment, and achieve a quiet and friendly human-computer interaction environment.
Order it right now to experience the convenience of remote access over your computer system with our USB DVI IP KVM Matrix Extender via Cat5E or Cat6 or Cat7!
Product Features
- Low latency : 5ms
-
DVI-D/ USB2.0 extender
-
Point-to-point connection supports maximum extension distance 150m/492ft
-
Can be connected to a standard network switch to form a matrix switching system.
-
Support seamless switching
-
Freeze the last image after the disconnection of transmitter and receiver
-
Support resolution up to 1920 x 1200 @60 Hz
-
USB transmission rate up to 480Mbit/s
-
Support firmware update, with cable
-
DVI lossless real-time full HD transmission
-

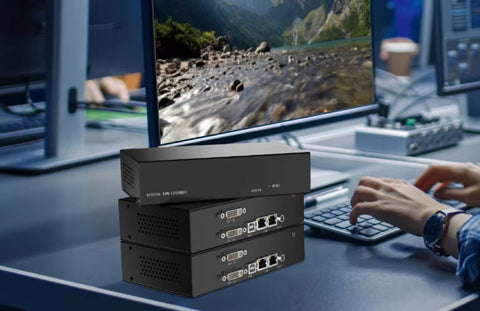

Support POE4 single or dual extender can be installed in a 1U rack
-
Support USB protection function, USB emulation mode, USB sharing

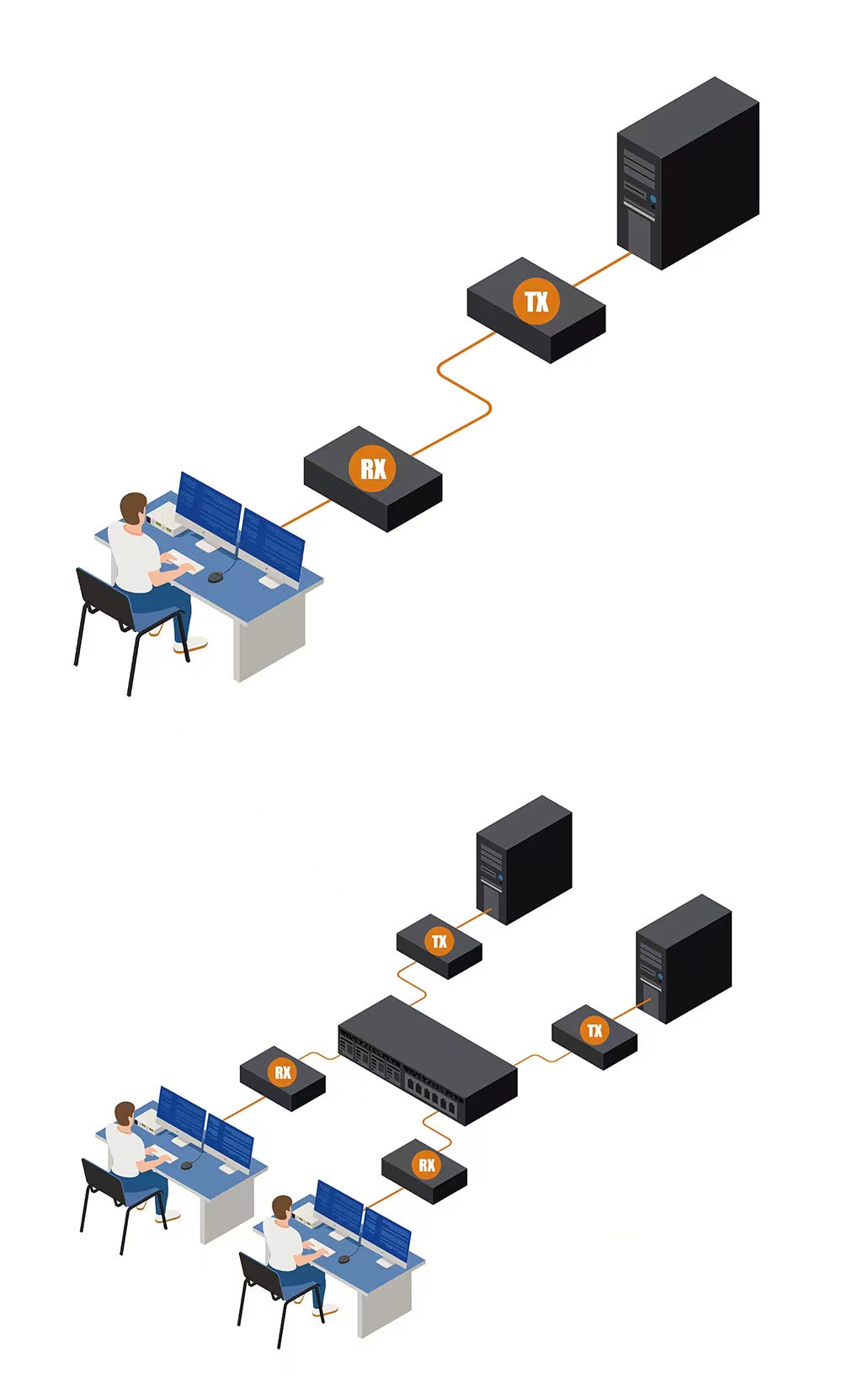

Connection Diagram
Specifications
|
Specification |
TR2000IDC_TX |
TR2000IDC_RX |
|
|
Connection |
DVI Input |
2 |
NA |
|
DVI Output |
NA |
2 |
|
|
Power |
12V |
12V |
|
|
Network Port |
RJ45 x2 |
RJ45 x 2 |
|
|
Square USB |
1 |
N/A |
|
|
USB Port |
N/A |
USB x 4 |
|
|
Resolution |
1920 X 1200 @ 60 Hz |
||
|
Cable |
CAT 5E / 6 /7 |
||
|
Input power |
DC12V / 2A |
DC12V / 2A |
|
|
Power consumption |
12W |
12W（Excluded USB devices） |
|
|
Operating temperature |
0 ~ 45 ℃ |
||
|
Store temperature |
-25 ~ 80 ℃ |
||
|
Humidity |
0~80% RH, non-condensing |
||
|
Material |
Metal |
||
|
Net weight (kg) |
0.56 kg |
0.58kg |
|
|
Product dimension (W × D × H) |
180 x 102.2x 44mm |
||
