Description
Product ID: TR1000IDC
Description

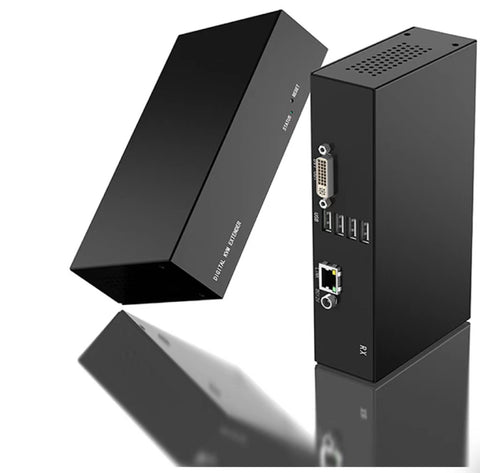

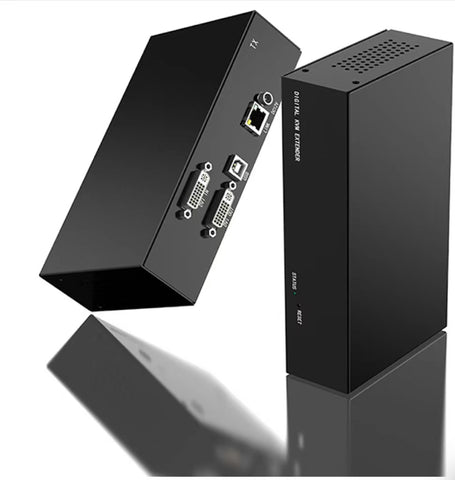

TR1000IDC matrix extenders are highly optimized KVM extenders. The point-to-point connection supports transmission distance of 150m, and resolution up to 1920x1200@60Hz. The matrix switching system composed of extenders supports up to 2000 nodes and fast switching. It can connect multiple signal sources (such as servers, workstations, cameras, and video walls) and be operated and controlled through centralized management software. With the Easy Management function, a matrix management system of up to 56 nodes can be formed without a management platform.
In a matrix switching system, you can use manage software to manage the transmitter and receiver of the extender in an optimized way, and the status of the extender is identified by different colors. With the matrix switching system, computers and servers can be located in the central server room far from the workbench to improve security, reduce the temperature and noise of the working environment, and achieve a quiet and friendly human-computer interaction environment.
The video compression algorithm of TR1000IDC matrix extender is a perfect combination of high-quality image and low latency (<5ms). The USB and video signals are transmitted through CAT5e/6/7 network cable.
USB2.0 transparent transmission technology supports USB devices such as touch screen, USB sound card, printer, etc. It can also support USB storage devices and USB protection function, which can disable U disk to prevent viruses from invading through USB interface.
Order it right now to experience the convenience of remote access over your computer system with our USB DVI IP KVM Matrix Extender via Cat5E or Cat6 or Cat7!
Product Features
-
DVI-D/ USB2.0 extender
-
Point-to-point connection supports maximum extension distance 150m/492ft
-
Can be connected to a standard network switch to form a matrix switching system.
-
Support seamless switching
-
Freeze the last image after the disconnection of transmitter and receiver
-
Support resolution up to 1920 x 1200 @60 Hz
-
USB transmission rate up to 480Mbit/s
-
Support firmware update, with cable
-
DVI lossless real-time full HD transmission
-
Support POE4 single or dual extender can be installed in a 1U rack
-
Support USB protection function, USB emulation mode, USB sharing

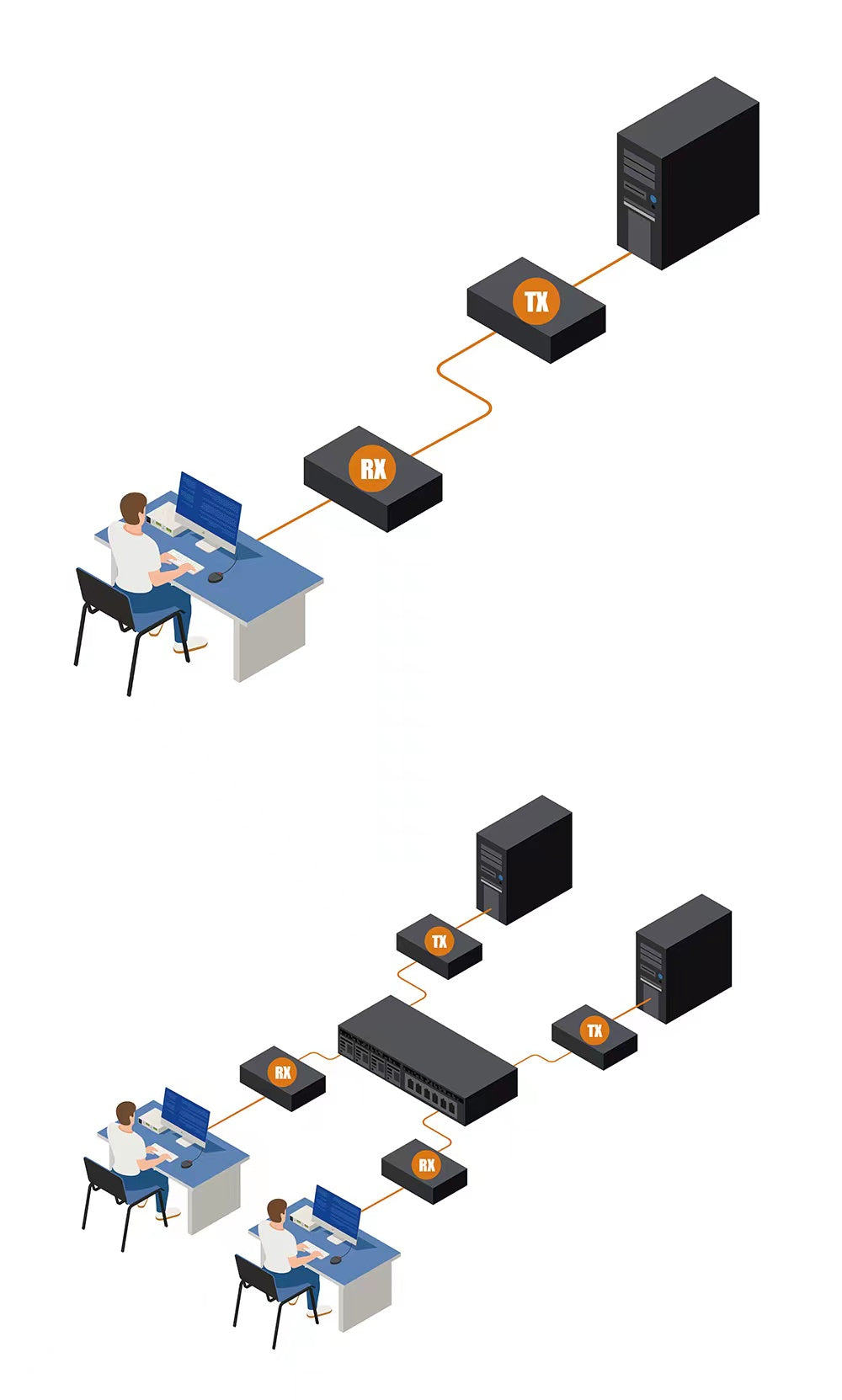

Connection Diagram
Specifications
|
Specification |
TR1000IDC_TX |
TR1000IDC_RX |
|
|

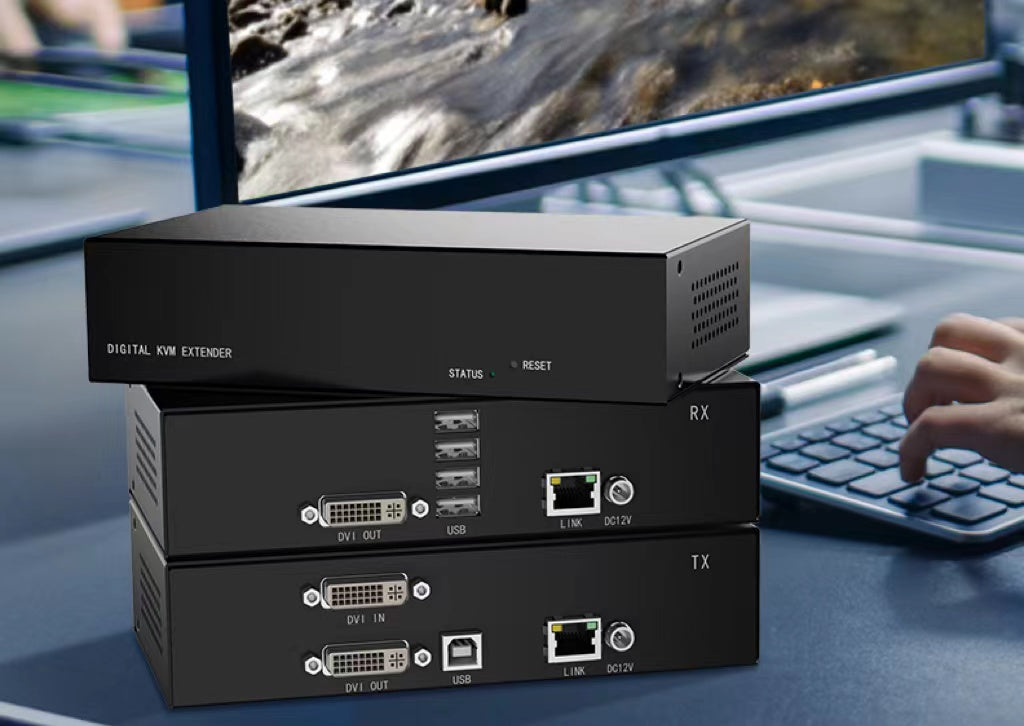

Connection
|
DVI Input |
1 |
NA |
|
DVI Output |
1 |
1 |
|
|
Power |
12V |
12V |
|
|
Network Port |
RJ45 x1 |
RJ45 x 1 |
|
|
Square USB |
1 |
N/A |
|
|
USB Port |
N/A |
USB x 4 |
|
|
Resolution |
1920 X 1200 @ 60 Hz |
||
|
Cable |
CAT 5E / 6 /7 |
||
|
Input power |
DC12V / 2A |
DC12V / 2A |
|
|
Power consumption |
6W |
6W（Excluded USB Device） |
|
|
Operating temperature |
0 ~ 50 ℃ |
||
|
Store temperature |
-25 ~ 80 ℃ |
||
|
Humidity |
0~80% RH, non-condensing |
||
|
Material |
Metal |
||
|
Net weight(kg) |
0.56 kg |
0.56kg |
|
|
Product dimension (W × D × H) |
180 x 102.2x 44mm |
||
