Description
Product ID: TR262KFH
Description
The TR262KFH HDMI digital KVM extender delivers FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.
The TR262KFH supports signal transmission over fiber optic cable or Cat5 cable, it supports single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 80km, for multimode the transmission distance is up to 300m. If you connect the TR262KFH-TX and TR262KFH-RX with a Cat5 cable, the transmitting distance is up to 150m. It supports the transmission of 2 channels high-quality HDMI signals and has a wide range of applications.

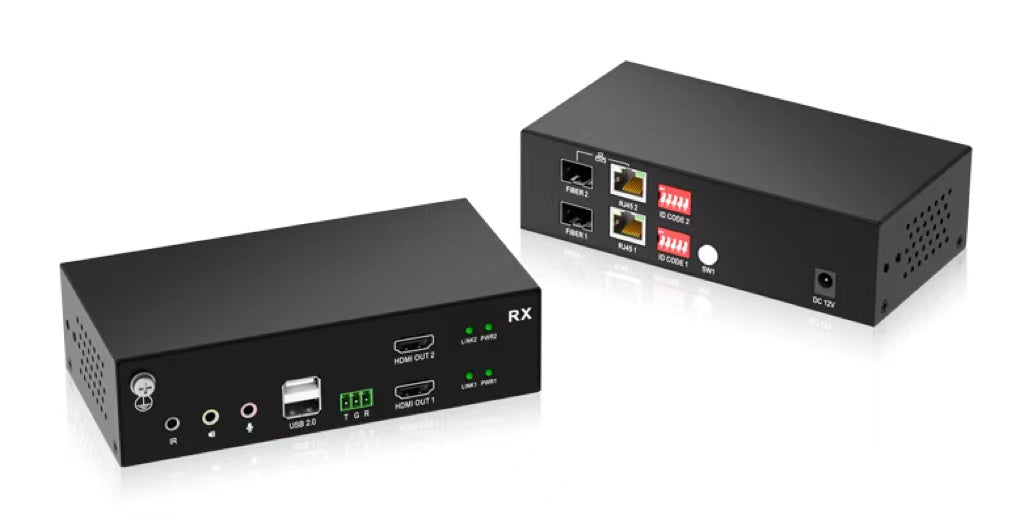

A complete set of TR262KFH including Transmitter (TR262KFH-TX) and Receiver (TR262KFH-RX). The Transmitter is connected to a computer or server, and the receiver is connected to 2 displays, keyboards, mouses, audio player, and other USB devices.
Experience the convenience of remote access over your computer system with our Dual HDMI FHD Digital KVM Extender over Fiber/Cat5 and order yours online today!
Product Features
- Uncompressed FHD HDMI video transmission, resolution is up to 3840x2160@30Hz
- Point-to-point protocol for ultra-low latency
- Supports 1000M LAN port
- Supports optical fiber transmission
- Transmitting distance is up 10km over single-mode fiber, and 300m over multimode fiber.
- Support transmitting distance up to 150m over Cat5 cable.
- Supports USB 2.0 transparent transmission – Supports a wide range of USB peripherals, such as encrypted U disk, face recognition, and other USB devices, connect via the built-in 4 USB hub
- Bidirectional Analog Audio: line in/out with microphone and headphone support
- Supports 1-channel asynchronous serial transmission
- Supports connect to a switch (1000M)
- Supports point-to-point dial-up connection
- Built-in ESD protection circuits, can effectively prevent static electricity

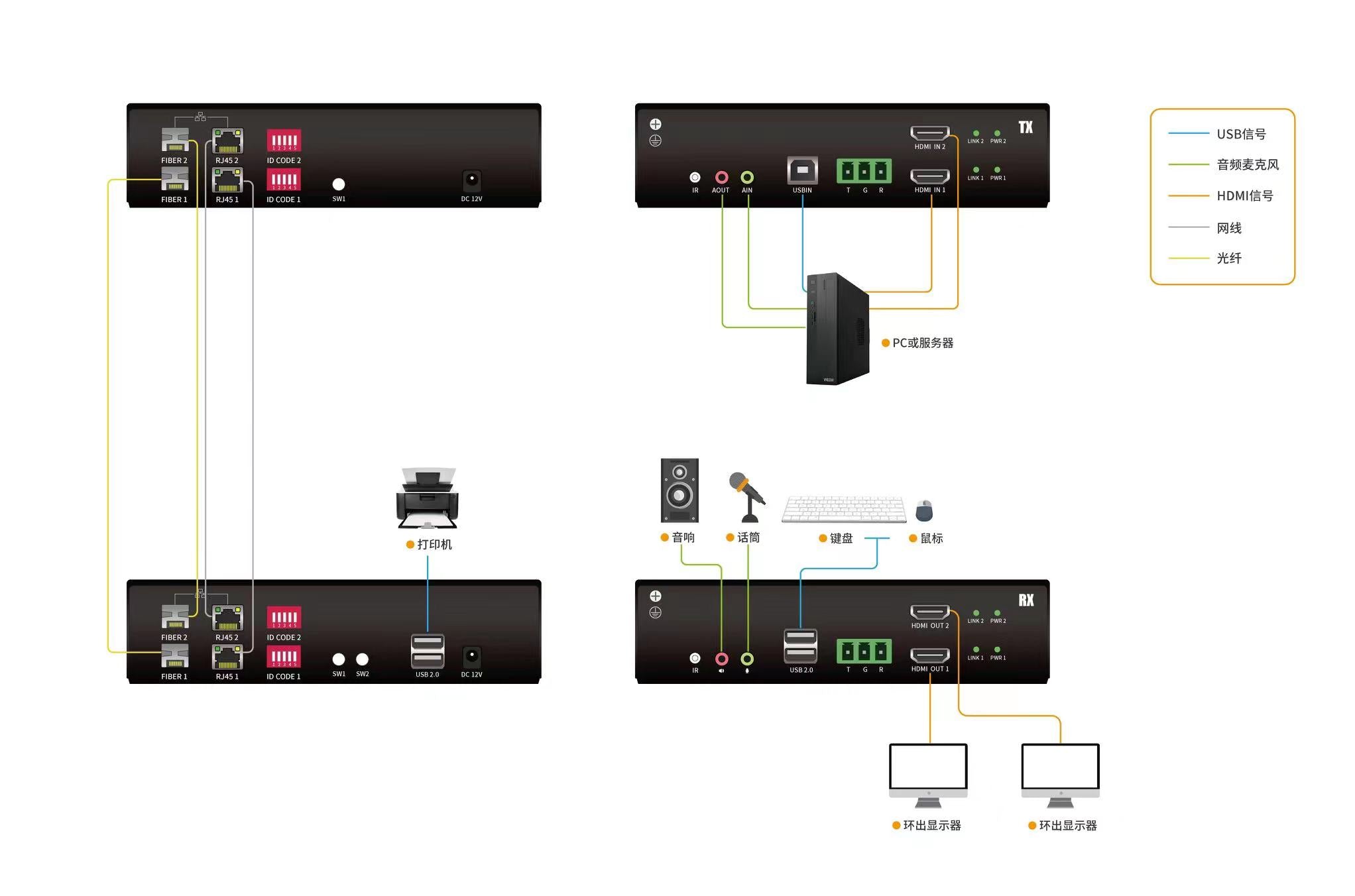

Connection Diagram
A single transmitter（TX）connected to a single receiver (RX)
Connection Diagram of TR262KFH
Specifications
| Model No. | TR262KFH_TX | TR262KFH_RX | |
| Interfaces | HDMI in | 1 | NA |
| HDMI out | NA | 1 | |
| Power | 12V | 12V | |
| SFP+ Module | SFP+ x 1 | SFP+ x 1 | |
| Microphone | 3.5mm Stereo Jack (Pink) | 3.5mm Stereo Jack (Pink) | |
| Speaker | 3.5mm Stereo Jack (Green) | 3.5mm Stereo Jack (Green) | |
| LAN | RJ45 | RJ45 | |
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 3840x2160@30Hz | ||
| Connection Cable | Fiber optical cable or Cat5/6 cable | ||
| Power Input | DC12V /2A | DC12V / 2A | |
| Power Consumption | 5.8W | 5.3W (USB peripherals not included) |
|
| Operating Temperature | 0–50 ℃ | ||
| Storage Temperature | -20–60 ℃ | ||
| Humidity | 0–80% RH, Non-condensing | ||
| Material | Metal | ||
| Net Weight (kg) | 0.5 kg | 0.5kg | |
| Product Dimension (W × D × H) |
158 mm x 80 mm x 30mm | ||
| Package Dimension (W × D × H) |
260 mm x 102 mm x 179mm | ||
