Description
Product ID: TR0417XL / TR0817XL / TR1617XL
Description:

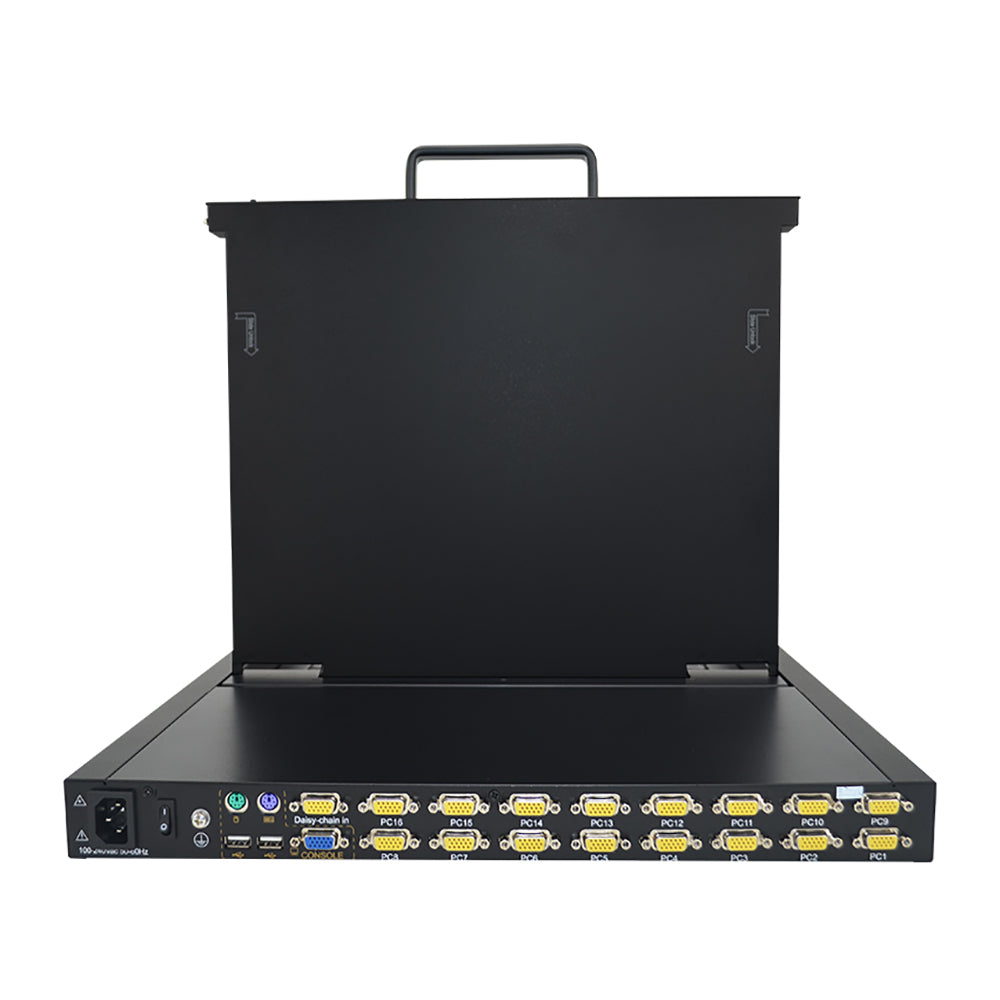

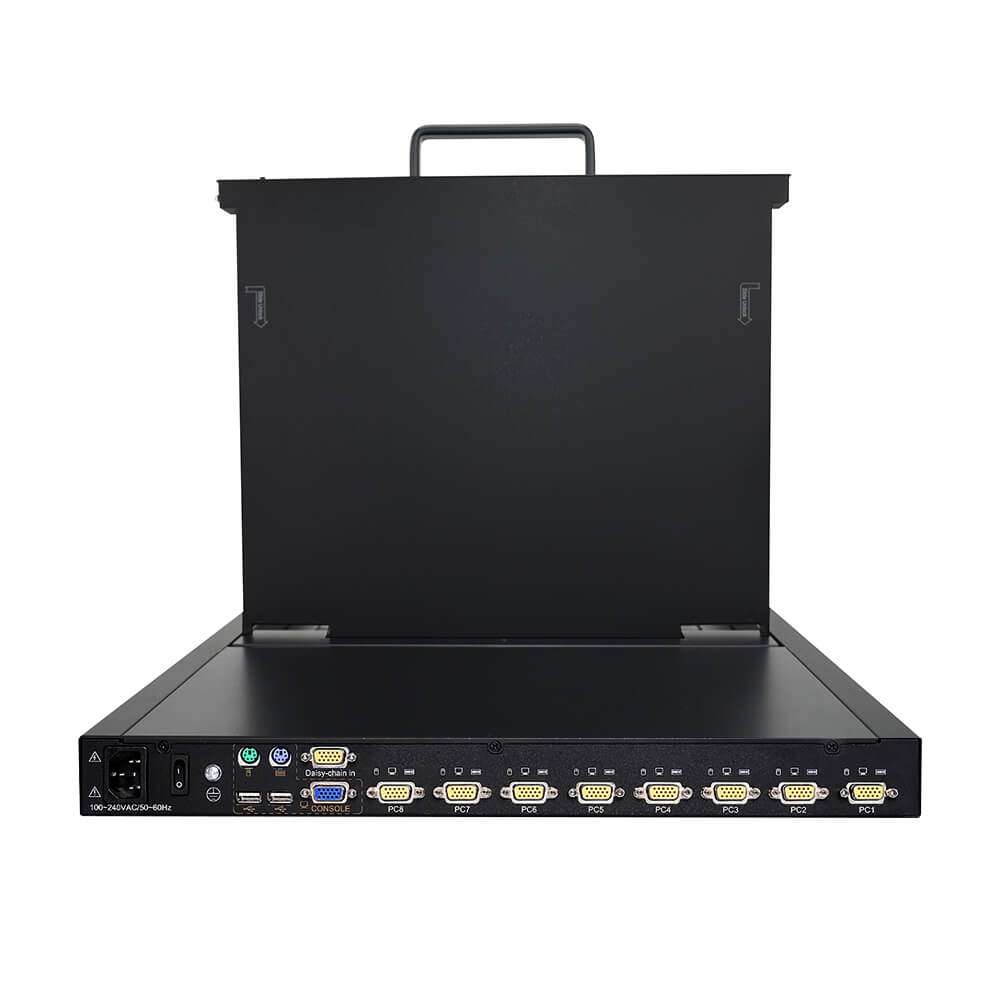

Looking to streamline control of multiple PCs? Our 4 or 8 or 16 port 17" LCD KVM console is a compact unit that combines a KVM analog port with an LCD panel to give you convenient and easy management of 4 or 8 or 16 total computers.

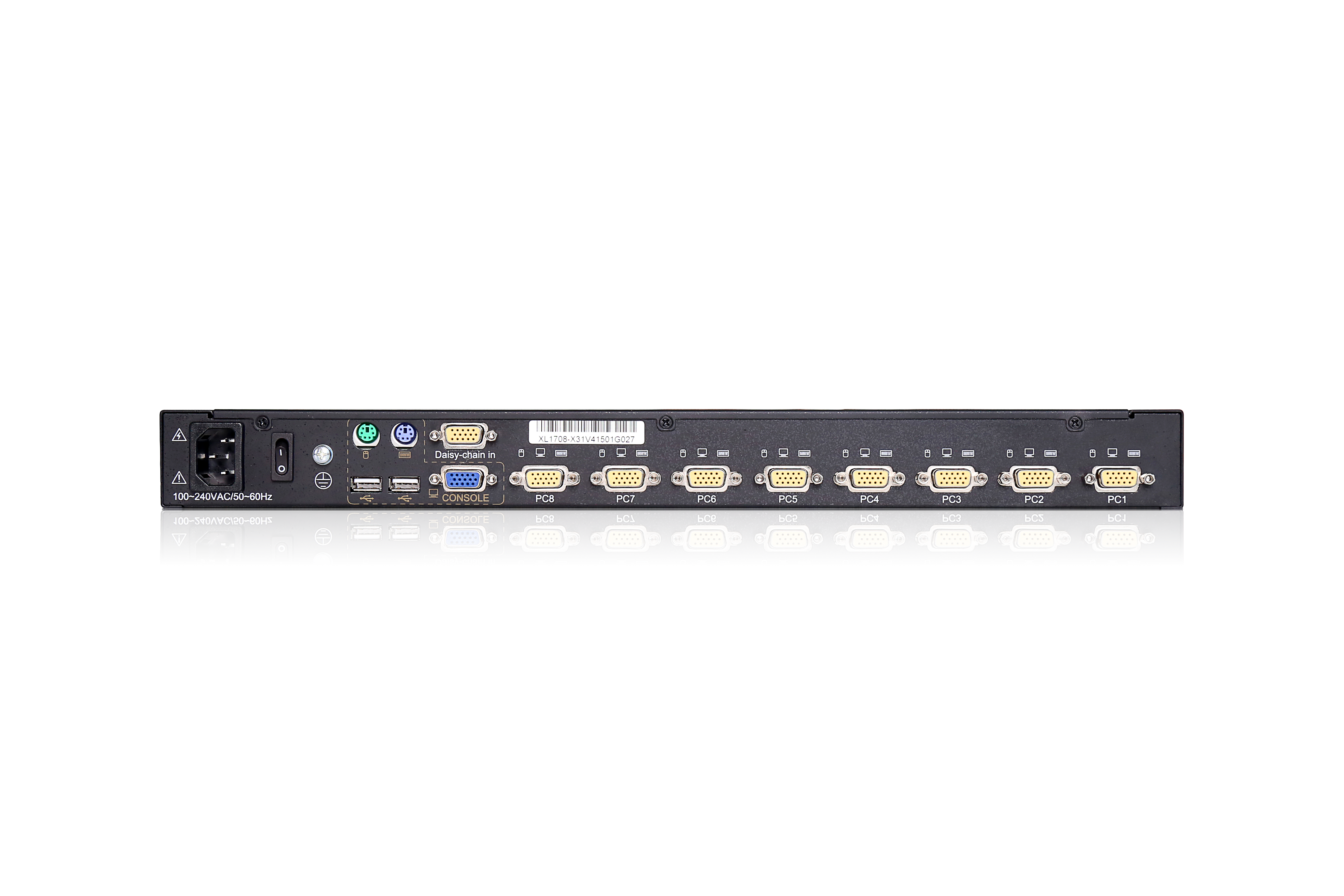

You can even daisy chain additional switches to the console for access to a total of 256 or 512 computers by daisy-chaining up to 31 KVM Switches multi-operational USB computers so you can stay on top of your daily tasks with ease.
By combining a touchpad, keyboard, and LCD monitor this compact console lets you free up your cluttered work station giving you more room to work with and less time clearing up a mess.
Place it into a single 1U of rack space in your rack cabinets for easy easy access and convenient storage.
No additional software applications needed, simply plug in the correct cable connectors into the switch, power it on and you can manage numerous PCs with a single KVM unit!
Maintain control of 4 or 8 or 16 computers with a single KVM console in our 4 or 8 or 16 port 17" LCD KVM Console - 1U, VGA and order yours online today!
Product Features:
Hardware feature

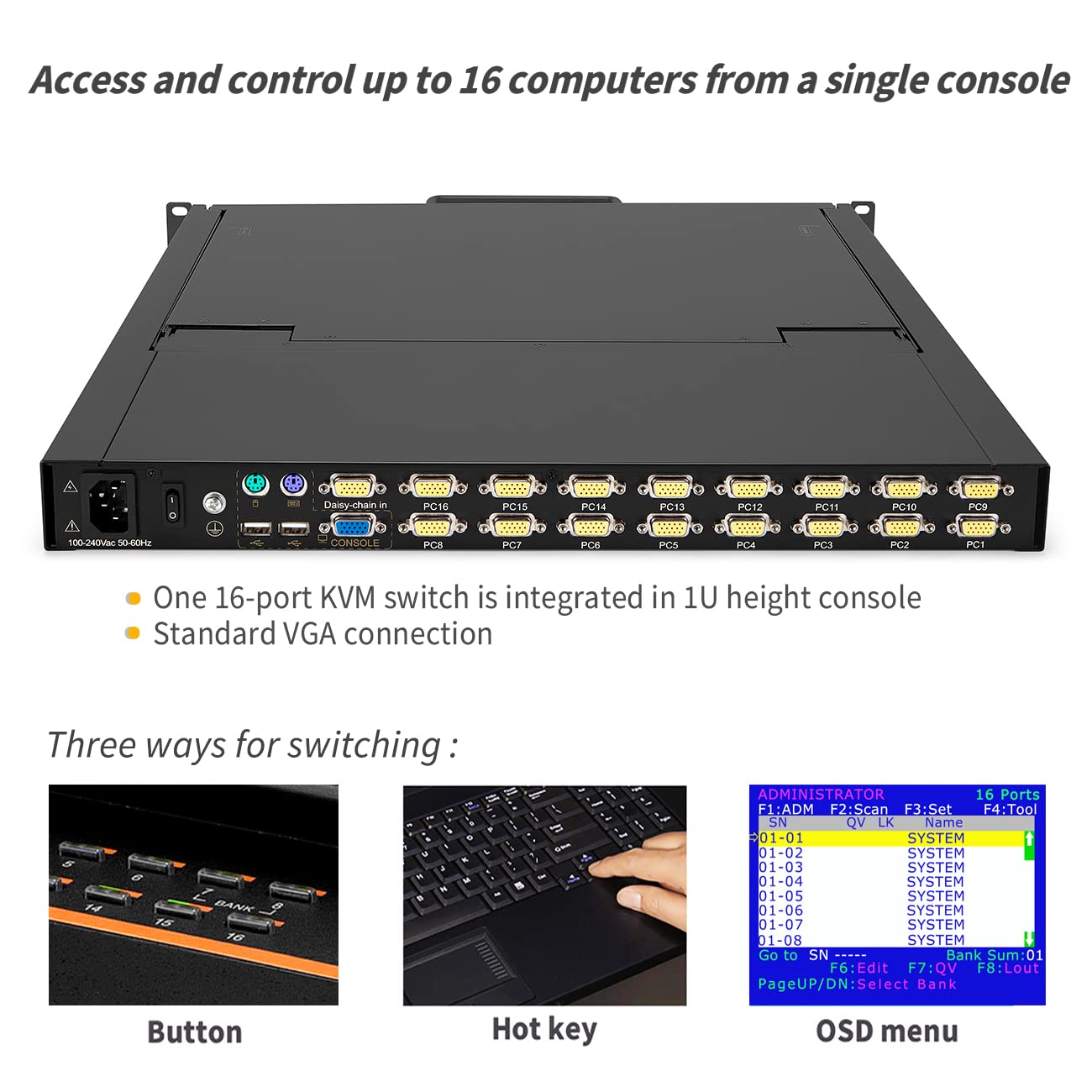

- 4 or 8 or 16 port KVM switch is integrated into 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console

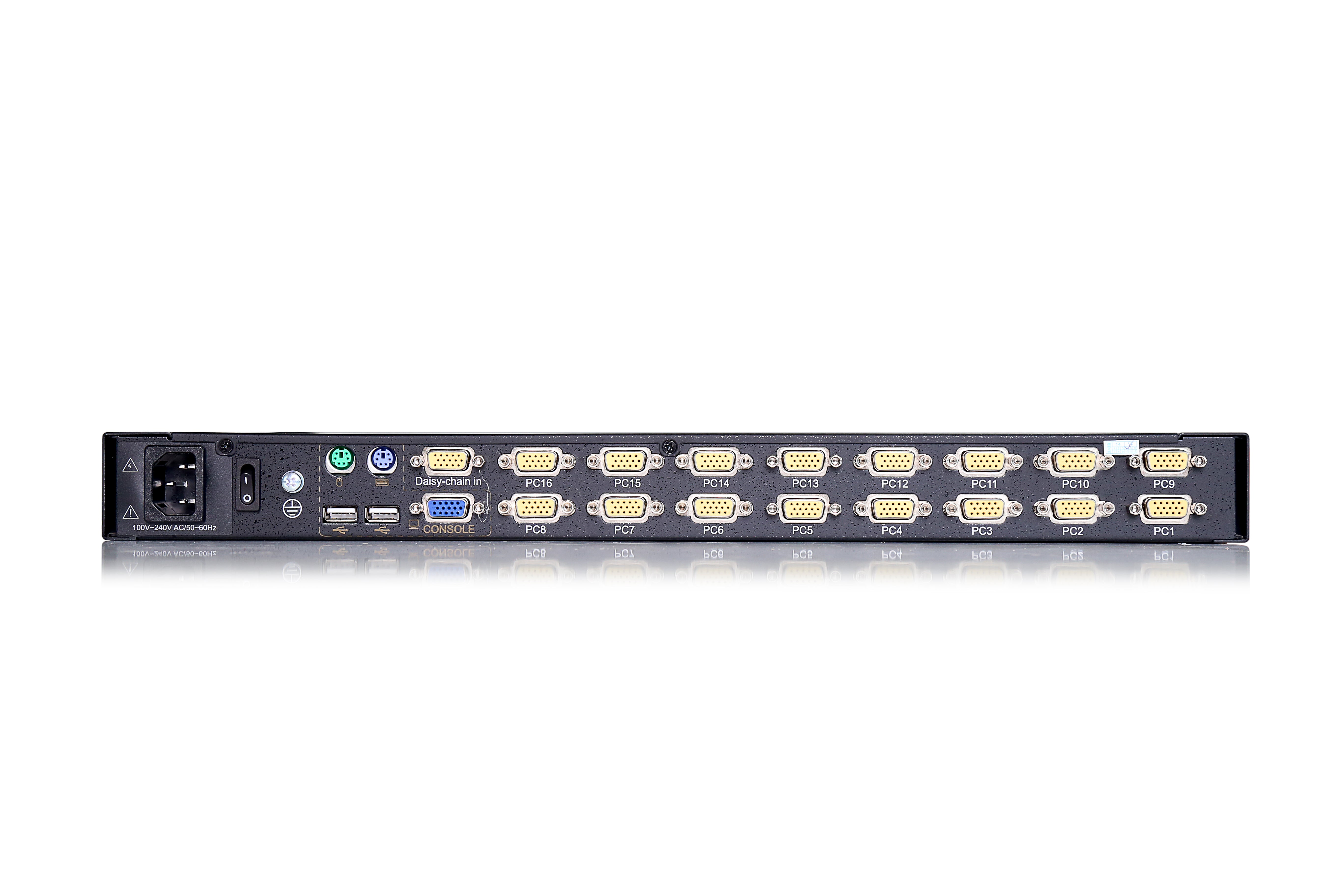

- Standard VGA connector-Connect to a server or computer via a standard VGA connector
- Quick release tabs-Insert or remove the device with ease
High-Performance Touchpad
- Touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Management Way
- Convenient computer switching via front panel LEDs, OSD menu and mouse
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot-pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
- 17” TFT LCD monitor with highlight, high definition, and high resolution
- Resolution is up to 1280 x 1024 @60Hz
Cascade Feature
- Directly access and control up to 4 or 8 or 16 servers with single 17-inch 4 or 8 or 16 ports combo LCD KVM console
- By cascading to another 31 switches, as many as 256 or 512 servers can be controlled
Security
- Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco, and Dell, etc.
Product Diagram
Specifications
| Model | TR0817XL / TR0817XL / TR1617XL | |
| Computer connections | Direct | 4 / 8 / 16 |
| Max | 4 / 256 / 512 | |
| Port emulation | Keyboard, mouse | PS/2,USB / USB / USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17" | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Touchpad with scroll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | Front panel pushbuttons, hotkeys, on-screen-display (OSD) | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 15W / 17W / 19W | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non-condensing | |
| Net weight | 11.8kg / 12.8kg / 13kg | |
| Product dimension (W × D × H) | 448mm×605mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
