Description
Product ID: TR0817XW / TR1617XW
The Rack Mount KVM Console is a versatile and space-saving solution designed for the efficient management of multiple servers or computers from a central location. This console features an 17.3-inch LCD that provides crisp and clear visuals, making monitoring and controlling your systems easy.
With its 1U form factor, this KVM console is designed to fit neatly into a standard 18.5-inch server rack, saving valuable rack space. The integrated keyboard and touchpad ensure convenient and seamless operation, eliminating the need for additional peripherals.
You can even daisy chain additional switches to the console for access to a total of 256 or 512 computers by daisy-chaining up to 31 KVM Switches multi-operational USB computers so you can stay on top of your daily tasks with ease.
Switching between connected systems can be done effortlessly using multiple methods. The console features front-panel buttons for manual switching, hotkey combinations on the keyboard, or an intuitive on-screen display (OSD) menu. This flexibility provides convenient access and control over your connected devices.
Overall, the Rack Mount KVM Console with an 17.3-inch display, 1U form factor, and included VGA KVM cables provides a reliable and efficient solution for managing multiple servers or computers from a centralized location, making it an excellent choice for organizations seeking enhanced productivity and streamlined server management.
Maintain control of 8 or 16 computers with a single KVM console in our 8 or 16 port 17.3"Rackmount LCD KVM Console - 1U, VGA and order yours online today!
Product Features:
- Integrated 17.3" widescreen LCD monitor, keyboard, touchpad, and 8-port /16-port VGA KVM switch in a single console that occupies only 1U height of rack space.
- By daisy-chaining up to another 31 switches, as many as 256 / 512 servers can be controlled from a single console
- Optimum resolution is up to 1920 x 1080 @60Hz
- Convenient computer switching via front panel pushbuttons, keyboard hotkey combination, or on-screen-display (OSD).
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad.
- Multiplatform Support-Compatible with Windows, Linux, Mac and Sun
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
- Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE, FCC, UKCA, SAA, RoHS2.0 Compliant. 2-year warranty.

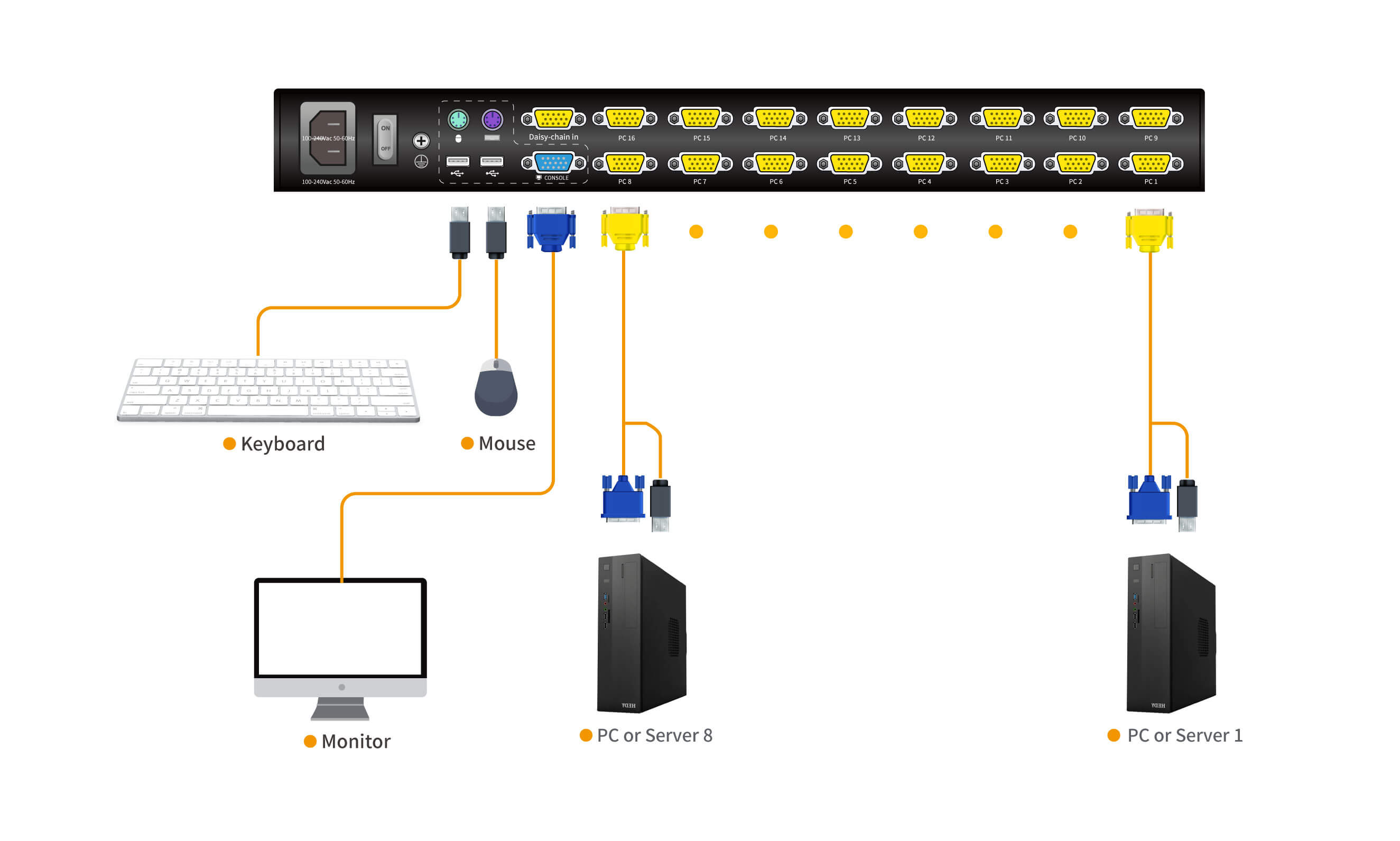

Product Diagram
Specifications
| Model | TR0817XW / TR1617XW | |
| Computer connections | Direct | 8 / 16 |
| Max | 256 / 512 | |
| Port emulation | Keyboard, mouse | USB |
| LED monitor | LED model | FHD TFT |
| View area | 17.3" | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 262K | |
| Brightness | 300cd/m² (T y p) | |
| Contrast ratio | 800: 1(T y p) | |
| Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Roll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | pushbuttons, hotkeys, OSD menu | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 16W / 18W | |
| Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
|
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non-condensing | |
| Net weight | 11.6kg / 11.8kg | |
| Product dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
