Description
Product ID: TR0817HT / TR1617HT / TR2417HT / TR3217HT
Description:
The 17-inch CAT5 LCD KVM over IP Switch integrates a 17” LCD monitor, keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.
The KVM Cat5 LCD KVM over IP Switch has a built-in 17” LCD monitor that supports resolution up to 1280x1024@60Hz. The IP Switch also provides VGA, DVI, HDMI, and DisplayPort KVM adapter cables to link to computers/servers, support any combination of computers with different video inputs. The switch also supports both USB and PS/2 connections for the computers.
The KVM Cat5 LCD KVM over IP Switch allows access and control up to 8 / 16 / 24 / 32 computers from a single console (keyboard, mouse, and monitor). Which features IP-based connectivity that allows local and remote operators to monitor and access the computers concurrently. With TCP/IP communications protocol, you can access the connected servers from any computer on the LAN, WAN, or Internet.
The IP Switch helps extend the distance to the servers up to 100m via RJ-45 connectors and Cat5e/6 cables. It’s easy to set up the Cat5 LCD KVM Console, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. It’s easy to switch between computers by front panel pushbuttons, OSD (on-screen display) or keyboard hotkey command.
To enhance security, the Console provides two-level password security which prevents unauthorized users to viewing and controlling the connected computers.
Experience the convenience of 17'' Rackmount LCD KVM over IP Switch - 1U, RJ-45 / CAT5, 1-Local / 1-Remote Access and order yours online today!
Product Features:
Hardware feature
- One 8/16/24/32 port CAT5 KVM switch is integrated into 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
- Standard RJ-45 connector-Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
- Quick release tabs-Insert or remove the device with ease
- One bus for IP kvm switch remote access
- Support computers with USB and PS/2 keyboard and mouse

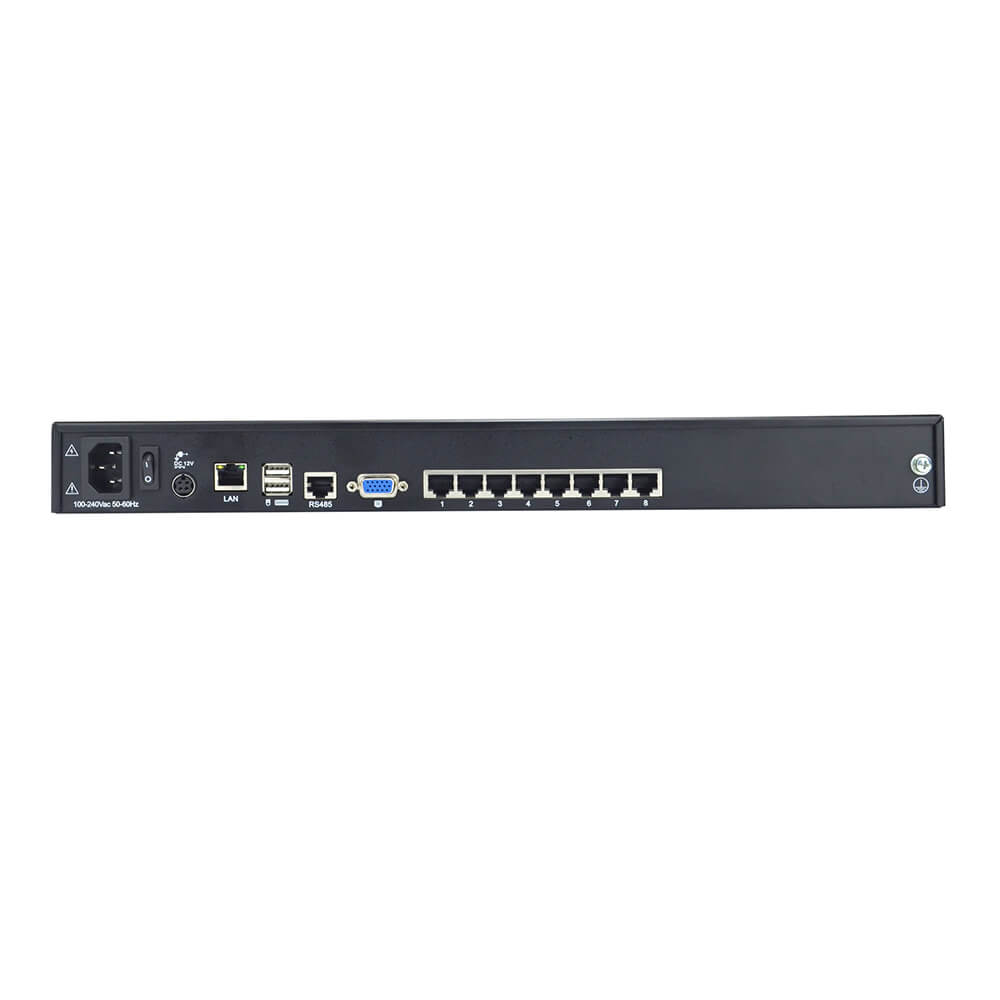

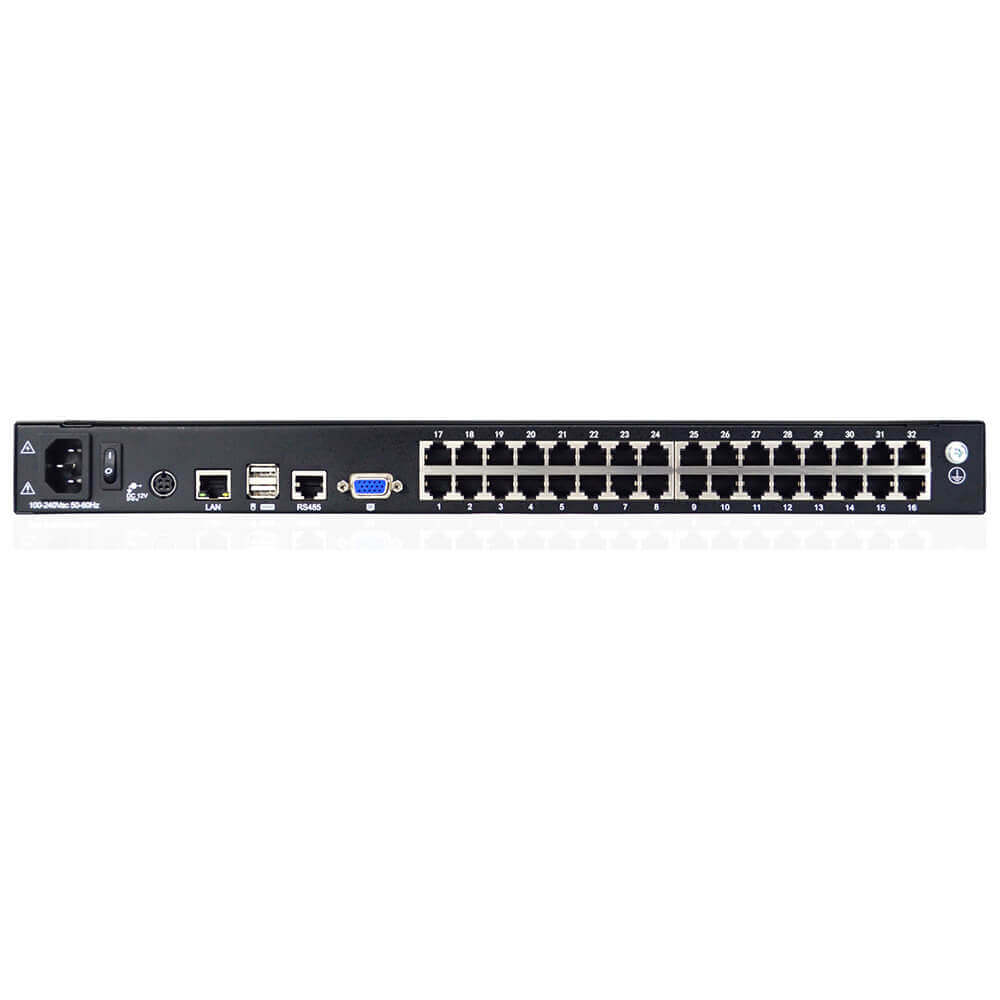

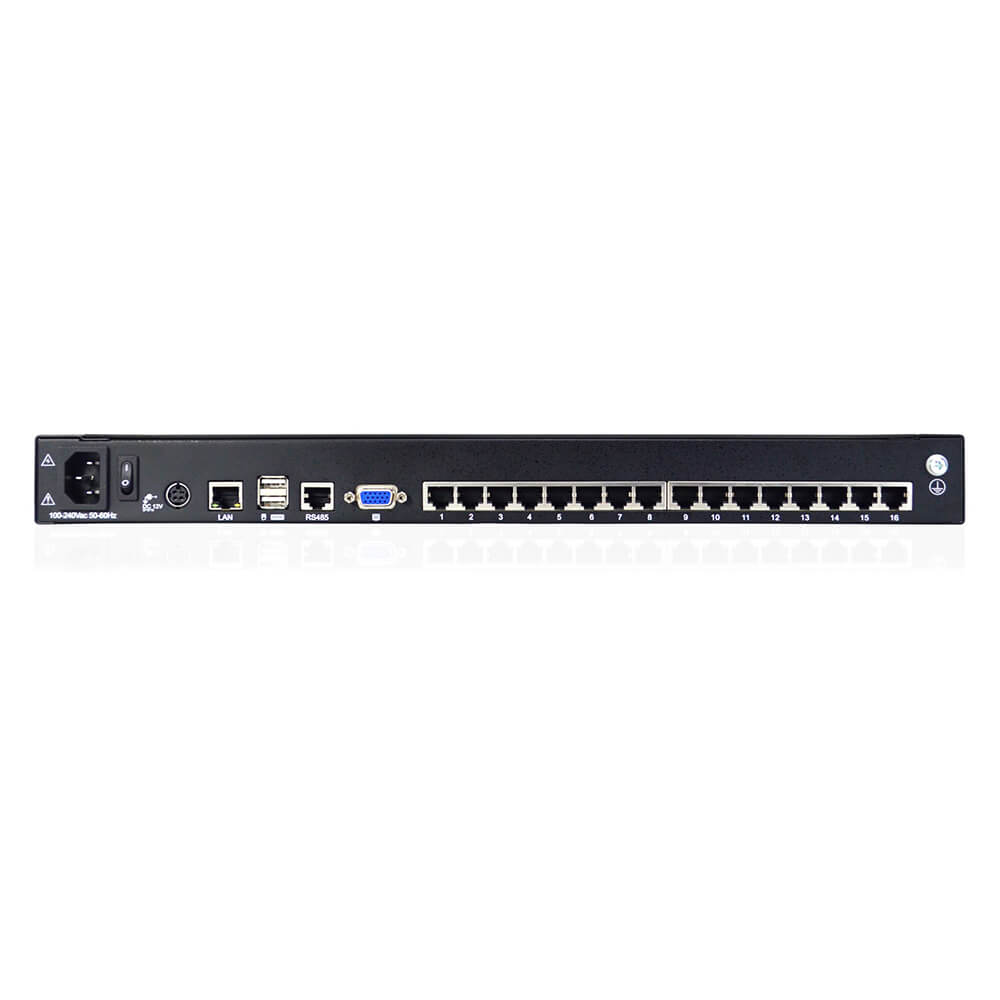

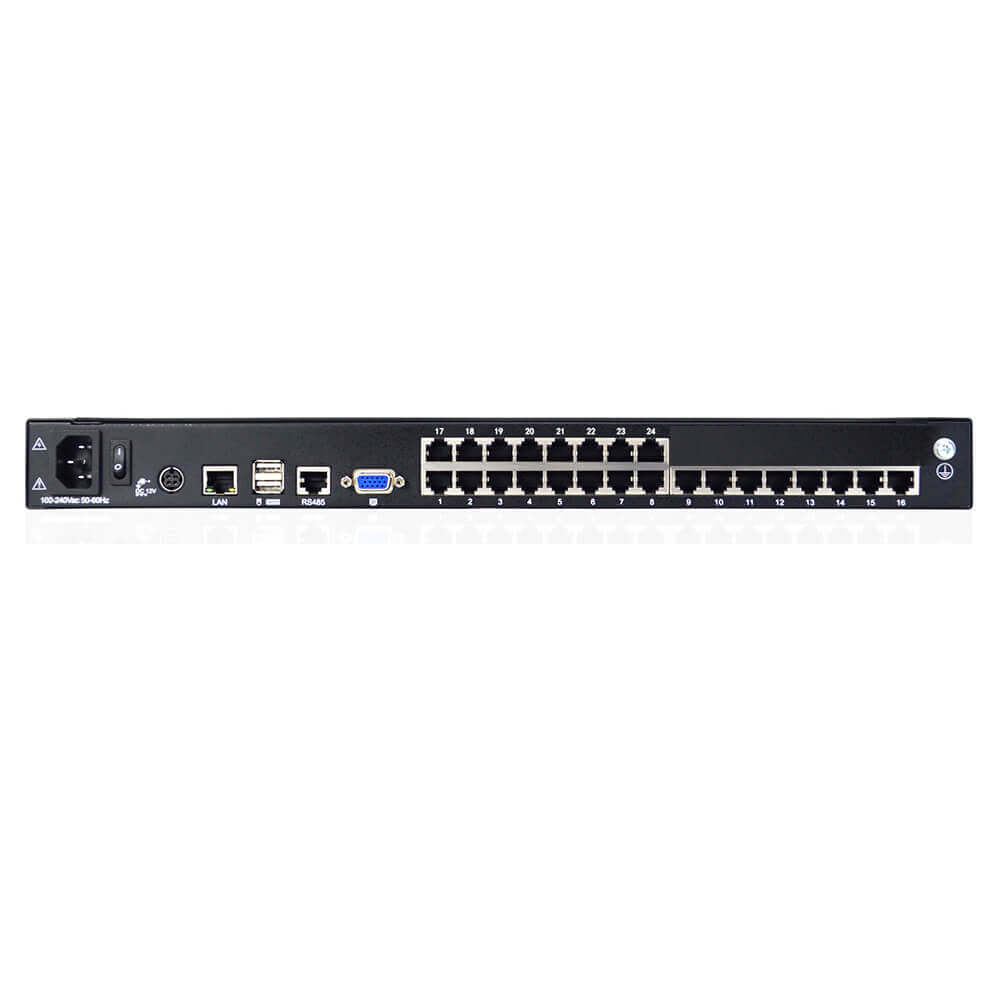

- External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Controls up to 8 / 16 / 24 / 32 computers from a single console
- Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
- Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
- Support servers with VGA/DVI/HDMI/DP port
- Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
- Local Console, Browser, and AP GUIs offer a unified management interface
- Local resolution is up to 1280 x 1024 60Hz
- Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
- Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
- Keyboard and mouse emulation to ensure the normal booting
- Auto scan feature for monitoring user-selected computer
- Hot pluggable--add or remove computers without having to power down the switch
- Adaptive 10 / 100 / 1000 Mbps network
- WEB browser-based remote management
- Resolution for remote console is up to 1920x1080 60Hz
- BIOS-level access
- Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
- Full screen or scalable video display
- Remote users and local users can control the same server/computer synchronously
- Support AES / DES / 3DES encryption
- Support audit function-allows the administrator to audit the device through the system log and operation log
- Exit Macros support
- Configurable user and group permissions for server access and control
- Support strong password
- Support firmware upgrade

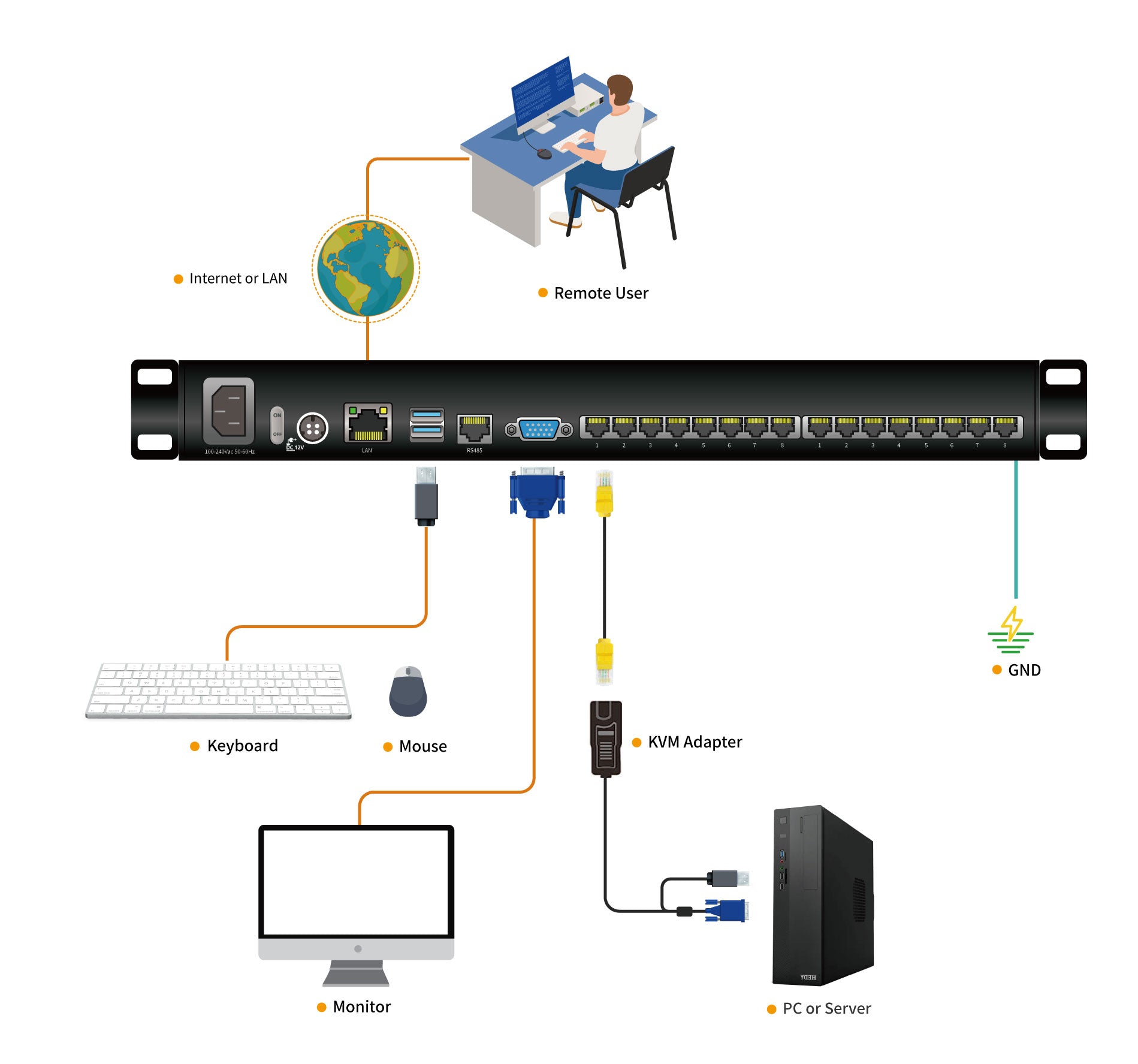

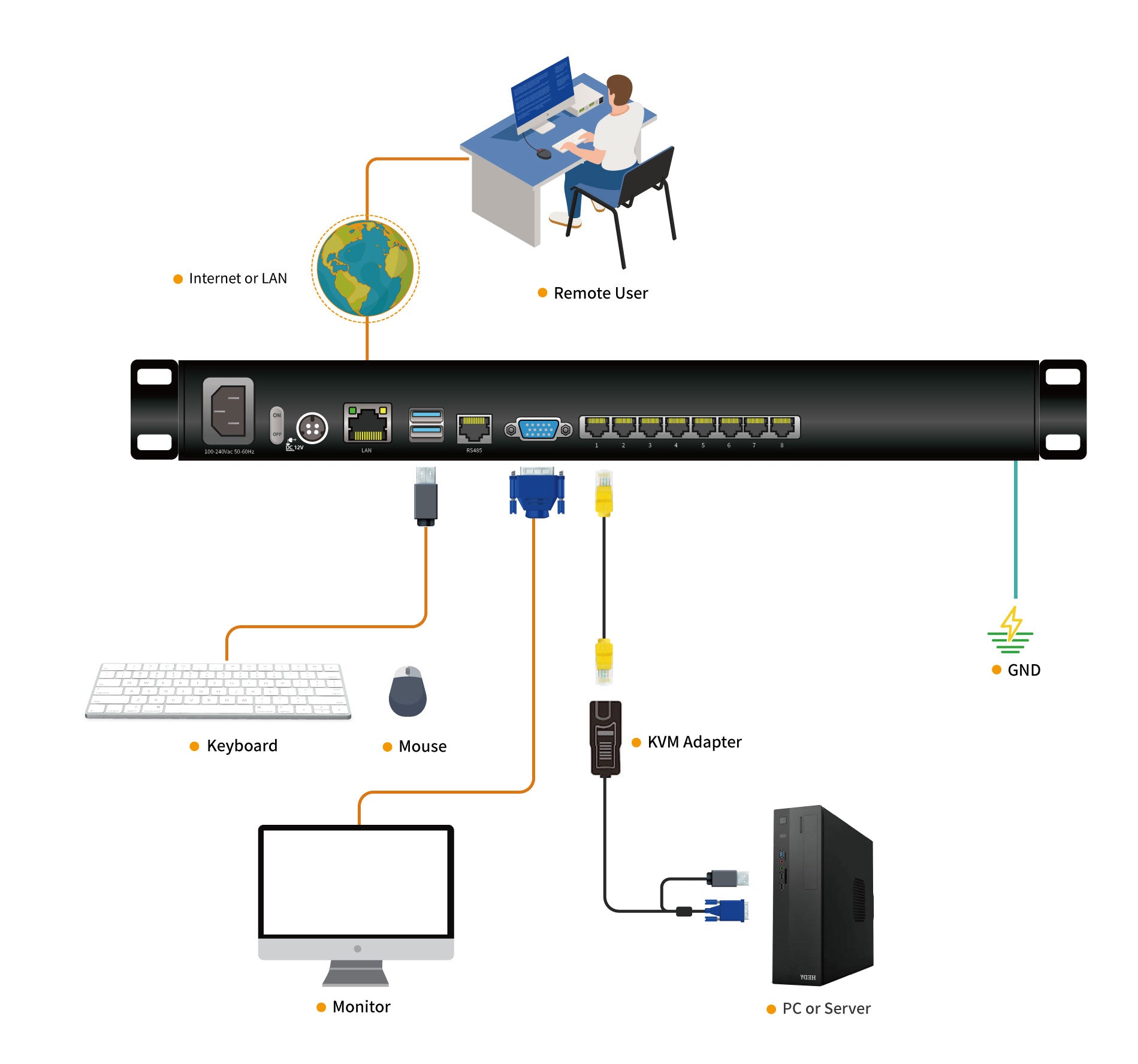

Connection Diagram:
Product Specifications:
| Model | TR0817HT / TR1617HT | |
| Computer Connections | Direct | 8 / 16 |
| Max | 8 / 16 | |
| Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
| LCD Monitor | Model | SXGA TFT |
| View Area | 17 " | |
| Optimum Resolution | 1280×1024@60Hz | |
| Color | 16.7 M | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 1000: 1 | |
| Pixel Pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y Resolution | >1000 points / inch,（ 40 points/mm ） |
| Scroll Wheel | Supports Scroll Wheel function | |
| Keyboard | 99 keys (82 keyboard + 17 number pad) | |
| Remote | Remote Control | KVM Control (ActiveX) |
| Management | Web | |
| Security | DES Encrypted | |
| Resolution | 1920×1080@60Hz | |
| Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power Consumption | 21W / 23W | |
| Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20 —60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net Weight | 13kg | |
| Product Dimension (W × D × H) | 448mm × 581mm × 42.5mm | |
| Package Dimension (W × D × H) | 765mm × 615mm × 185mm | |
| Model | TR2417HT / TR3217HT | |
| Computer Connections | Direct | 24 / 32 |
| Max | 24 / 32 | |
| Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
| LCD Monitor | Model | SXGA TFT |
| View Area | 17 " | |
| Optimum Resolution | 1280×1024@60Hz | |
| Color | 16.7 M | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 1000: 1 | |
| Pixel Pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y Resolution | >1000 points / inch,（ 40 points/mm ） |
| Scroll Wheel | Supports Scroll Wheel function | |
| Keyboard | 99 keys (82 keyboard + 17 number pad) | |
| Remote | Remote Control | KVM Control (ActiveX) |
| Management | Web | |
| Security | DES Encrypted | |
| Resolution | 1920×1080@60Hz | |
| Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power Consumption | 25W / 27W | |
| Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20 —60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net Weight | 13.2kg | |
| Product Dimension (W × D × H) | 448mm × 581mm × 42.5mm | |
| Package Dimension (W × D × H) | 765mm × 615mm × 185mm | |
