Description
Product ID: TR0828C / TR1628C / TR2428C / TR3228C
Description:

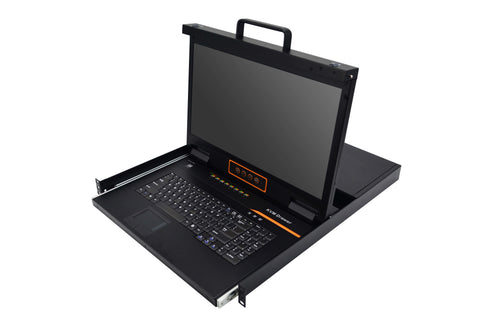

The 18.5-inch CAT5 LCD KVM console integrates a 18.5” LCD monitor, keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

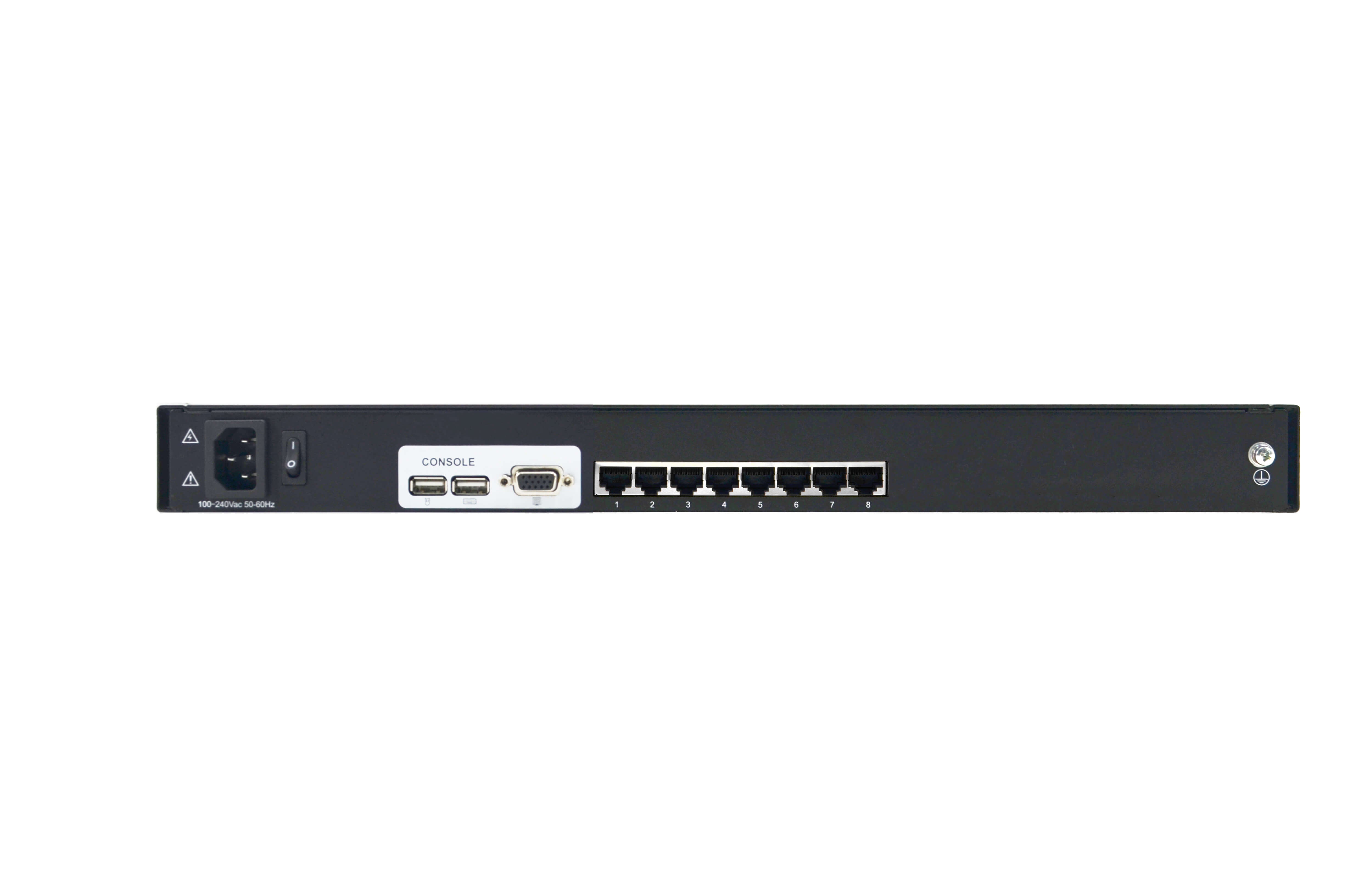

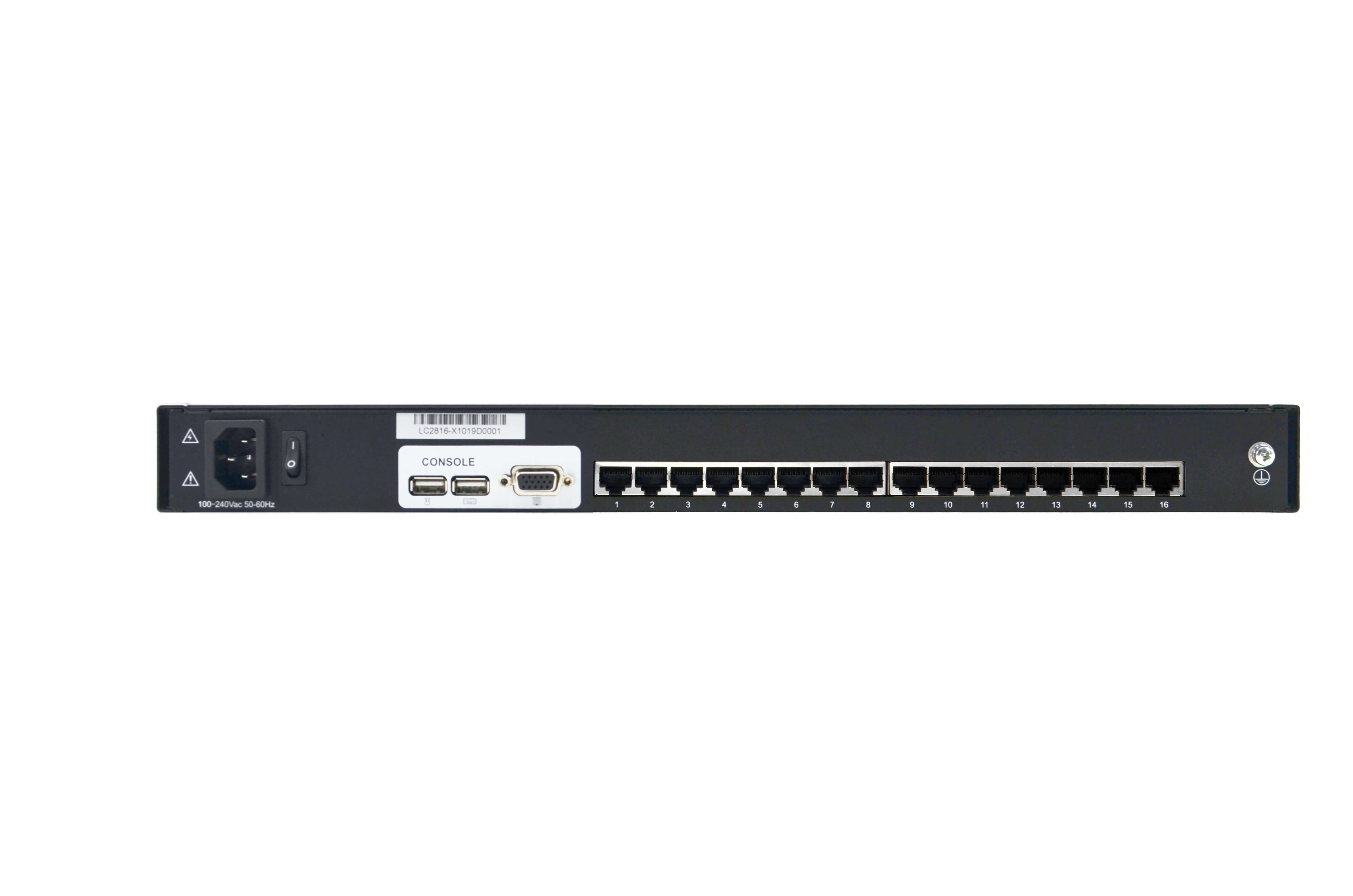

The KVM console has a built-in 18.5” LCD monitor that supports resolution up to 1920 x 1080 @60Hz. For added convenience, two USB ports and one VGA port are included in the rear of the KVM Console to allow for connection of keyboard/mouse and external display.
The KVM console allows access and control up to 8 / 16 / 24 / 32 computers from a single console (keyboard, mouse, and monitor). When cascading to another 31 KVM Switches, a single console can control up to 256 / 512 / 768 / 1024 computers.
The Console helps extend the distance to the servers up to 100m via RJ-45 connectors and Cat5e/6 cables. It’s easy to set up the Cat5 LCD KVM Console, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. It’s easy to switch between computers by front panel pushbuttons, OSD (on-screen display) or keyboard hotkey command.
To enhance security, the Console provides two-level password security which prevents unauthorized users to viewing and controlling the connected computers.
Experience the convenience of 18.5'' Rackmount Short Depth LCD KVM Console - 1U,RJ-45 / CAT5 and order yours online today!
Product Features:
Hardware feature
- One 8/16/24/32 port CAT5 KVM switch is integrated into 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
- Standard RJ-45 connector-Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cables
- Quick release tabs-Insert or remove the device with ease
- Support computers with USB keyboard and mouse
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
High-Performance Touchpad
- Touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Management Way
- Convenient computer switching via front panel pushbuttons , OSD menu and keyboard hotkey command.
- Auto scan feature for monitoring user-selected computers
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot-pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
- 18.5” TFT LCD monitor with highlight, high definition, and high resolution
- Resolution is up to 1920 x 1080 @60Hz
Cascade Feature
- Directly access and control up to 8 / 16 / 24 / 32 servers
- By cascading to another 31 switches, as many as 256 / 516 / 768 / 1024 servers can be controlled
Security
- Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco, and Dell, etc.

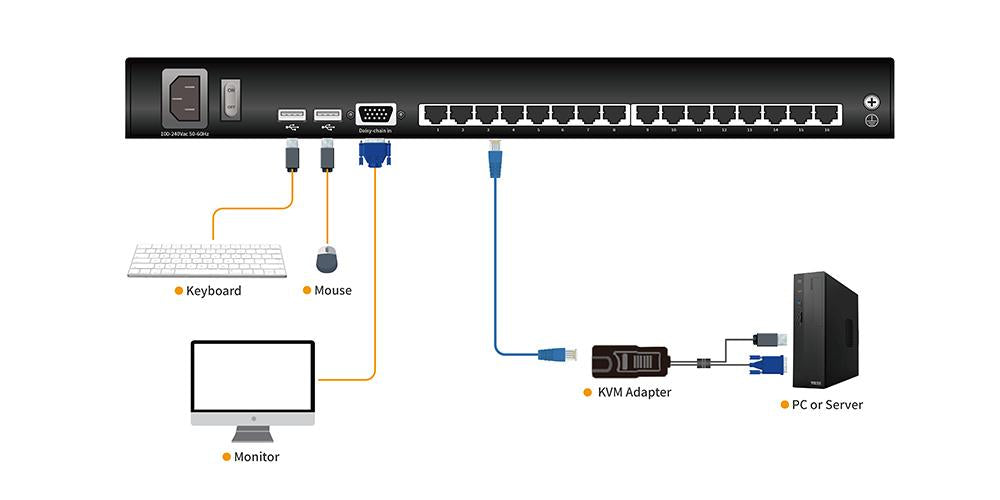

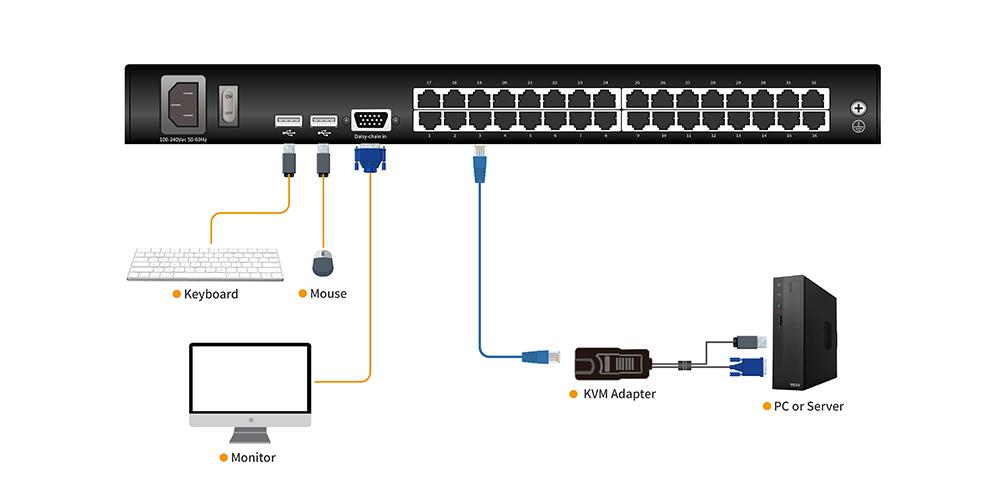

Connection Diagram:
Product Specifications:
| Model | TR0828C / TR1628C / TR2428C / TR3228C | |
| Computer connections | Direct | 8 / 16 / 24 / 32 |
| Max | 256 / 512 / 768 / 1024 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 18.47″ | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.213(H) × 0.213(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with scroll wheel | Eliminates the need for an external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small number pad) | |
| Port selection | Front panel pushbuttons, hotkeys, On-Screen Display (OSD) | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 29W / 30W / 31W / 32W | |
| Operating temperature | 0 — 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 11.8kg / 11.8kg / 12kg / 12kg | |
| Product dimension (W × D × H) | 448mm×605mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V～ -72V DC | |
