Description
Product ID: TR0119H / TR0819H / TR1619H
The Rackmount KVM Console is a versatile and efficient solution for managing your servers in a rackmount environment. This all-in-one unit offers seamless control and convenience, featuring a 19'' LCD monitor , full 99-key keyboard and touchpad in a single rail housing that occupies only 1U of rack spacea.
Equipped with a single HDMI KVM port, this console lets you connect and control your servers easily. The 19'' rack mount monitor delivers a crisp and clear display with a resolution of 1280×1024@60Hz, ensuring an optimal viewing experience.
The rackmount console comes with a single HDMI port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The usb monitor switch serves as the monitoring and managing console for standard KVM Switches.
Effortlessly manage your server infrastructure with this feature-rich rackmount KVM console, combining a high-definition display, intuitive input controls, and space-saving design.
Experience the convenience of 19'' Rackmount LCD KVM Console - 1U, HDMI and order yours online today!
Product Features:
- Integrated rack kvm with 19” TFT LCD widescreen monitor, keyboard/touchpad
- 19" TFT LCD monitor supports highlight, high definition and high resolution
- Resolution is up to 1280×1024@60Hz
- Standard HDMI connection-Connect to a server or computer via standard HDMI connector
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
- Support computers with USB keyboard and mouse
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

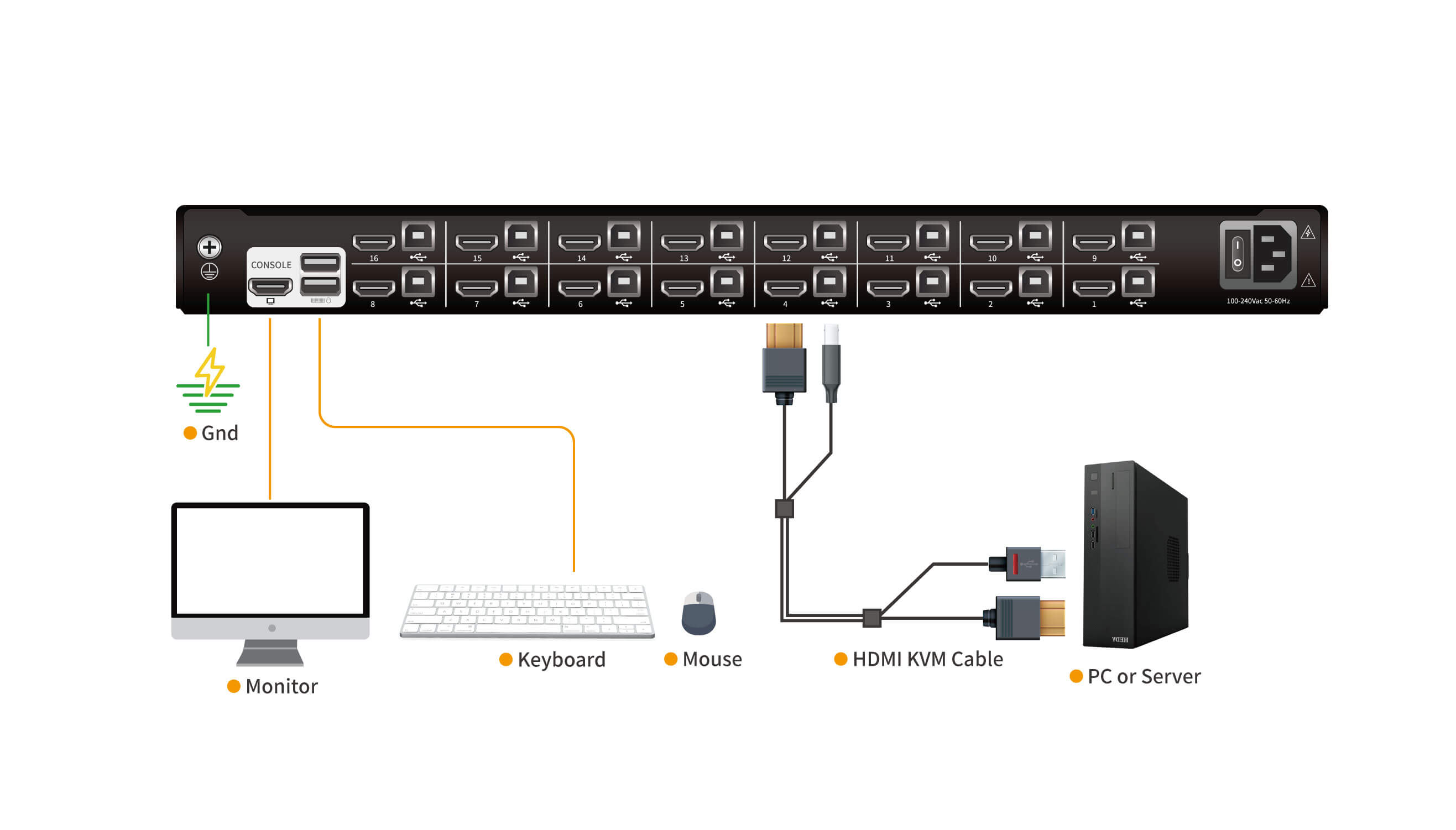

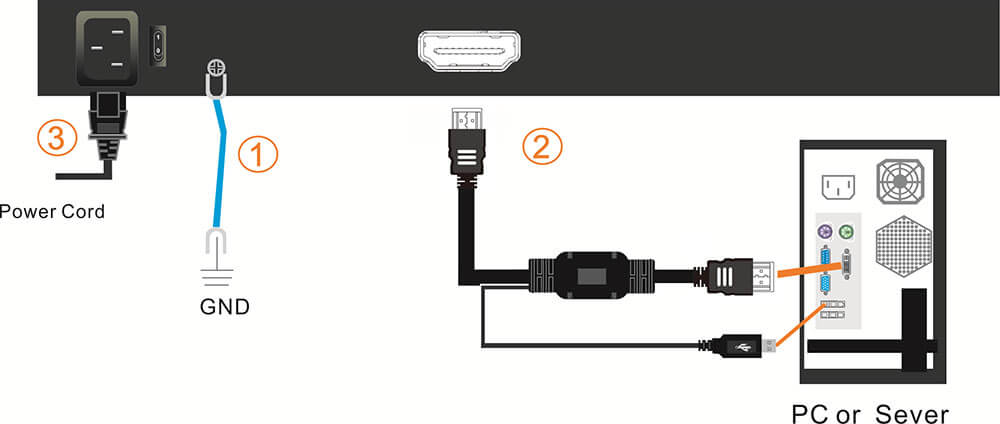

Connection Diagram:
| Model | TR0819H / TR1619H | |
| Computer connections | Direct | 8 / 16 |
| Max | 8 / 16 | |
| Port emulation | Keyboard, mouse | USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 19" | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.2928(H) × 0.2928(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Roll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | Front panel pushbuttons, hotkeys, OSD menu | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 23W / 25W | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non condensing | |
| Net weight | 13.4 kg / 13.6kg | |
| Product dimension (W × D × H) | 448mm×581mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V— -72V DC | |
