Description
Product ID: TR0117SW/TR3117SW
The Rack Mount KVM Console is a versatile and space-saving solution designed for the efficient management of multiple servers or computers from a central location. This console features an 17.3-inch LCD that provides crisp and clear visuals, making monitoring and controlling your systems easy.
With its 1U form factor, this KVM console is designed to fit neatly into a standard 17.3-inch server rack, saving valuable rack space. The integrated keyboard and touchpad ensure convenient and seamless operation, eliminating the need for additional peripherals.

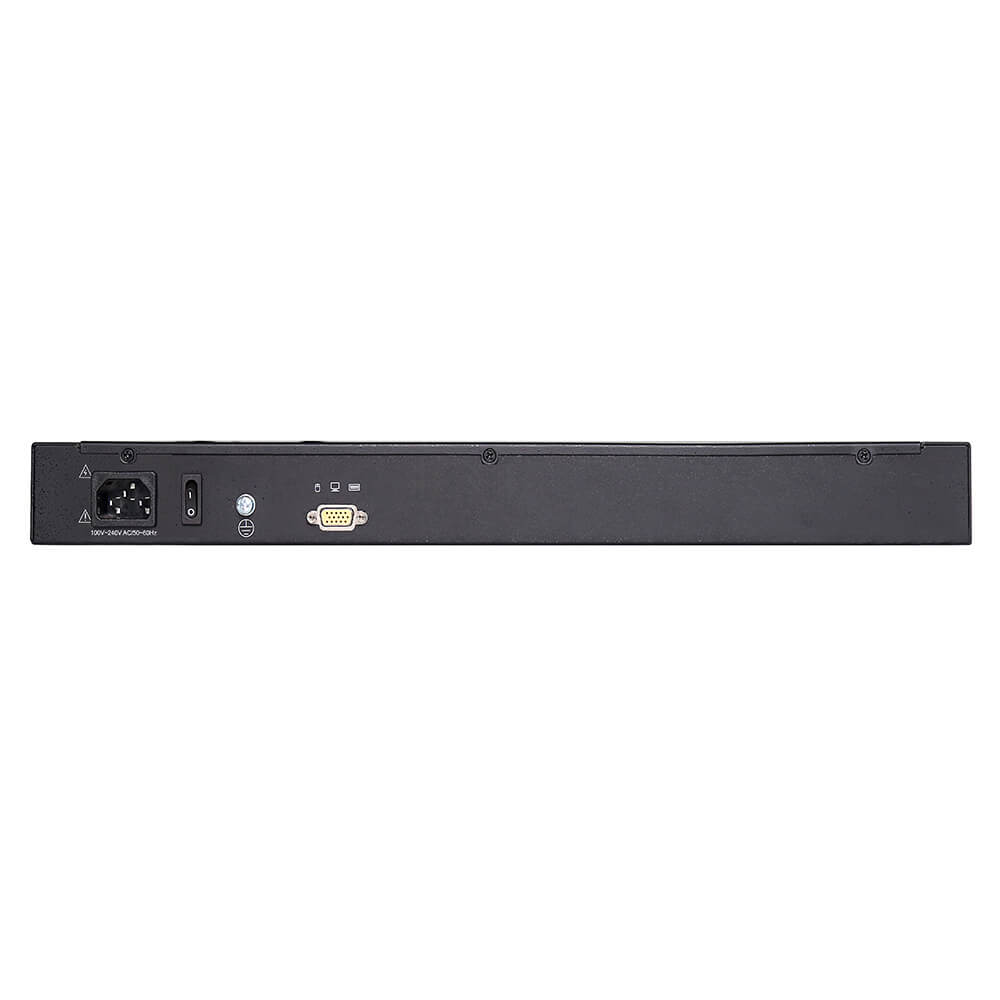

The TR0117SW rack mount console features a single VGA port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The rack mount monitor serves as the monitoring and managing console for standard kvm solutions.

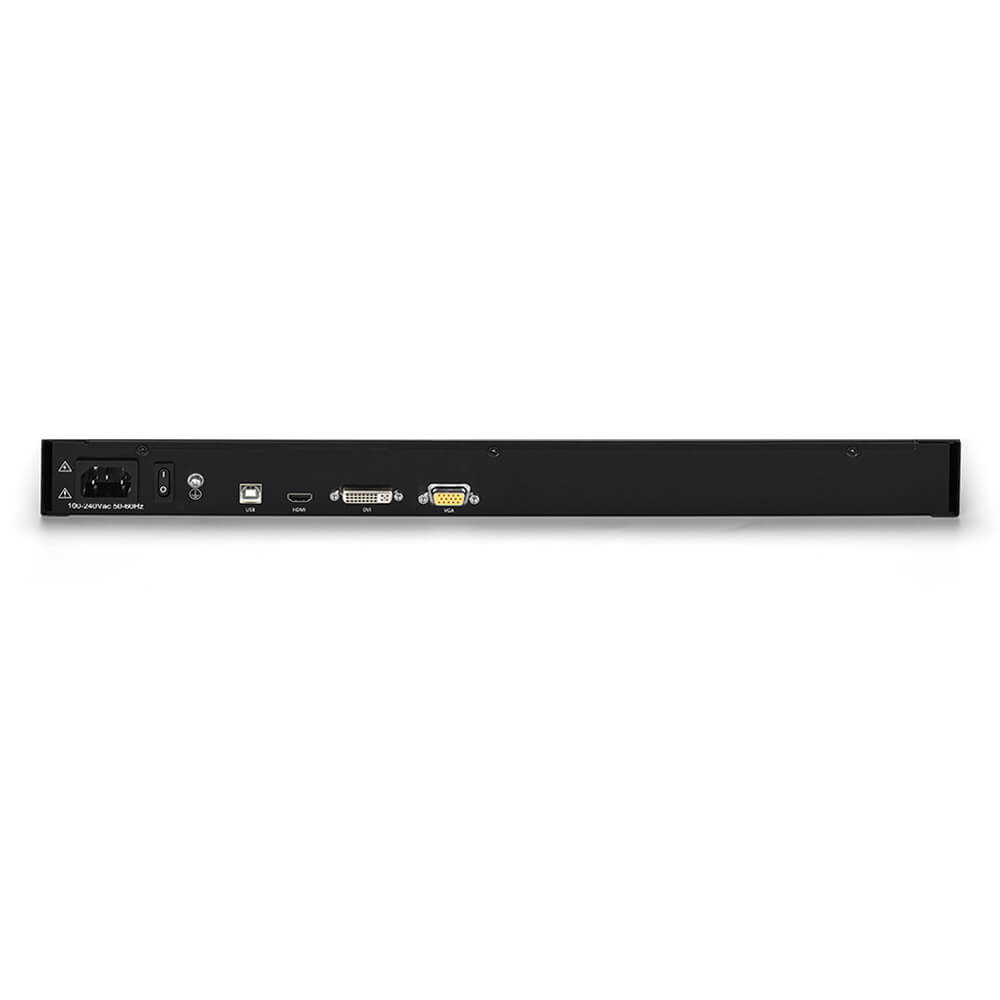

The TR3117SW supports three types of video inputs – HDMI, DVI, and VGA – allowing users to connect the console and the computer via any of the three types of video source. The 17.3in. LCD screen supports video resolutions up to 1920 x1080@60Hz.
Overall, the Rack Mount KVM Console with an 17.3-inch display, 1U form factor, and included VGA KVM cables provides a reliable and efficient solution for managing multiple servers or computers from a centralized location, making it an excellent choice for organizations seeking enhanced productivity and streamlined server management.
Maintain control 1 computer with a single KVM console in our 1 port 17.3"Rackmount LCD KVM Console - 1U, HDMI / DVI / VGA and order yours online today
Product Features:
- Integrated 17.3" widescreen LCD monitor, keyboard, touchpad, and 1-port HDMI/DVI/VGA KVM switch in a single console that occupies only 1U height of rack space.
- Optimum resolution is up to 1920 x 1080 @60Hz
- Convenient computer switching via front panel pushbuttons, keyboard hotkey combination, or on-screen-display (OSD).
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad.
- Multiplatform Support-Compatible with Windows, Linux, Mac and Sun
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
- Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE, FCC, UKCA, SAA, RoHS2.0 Compliant. 2-year warranty.

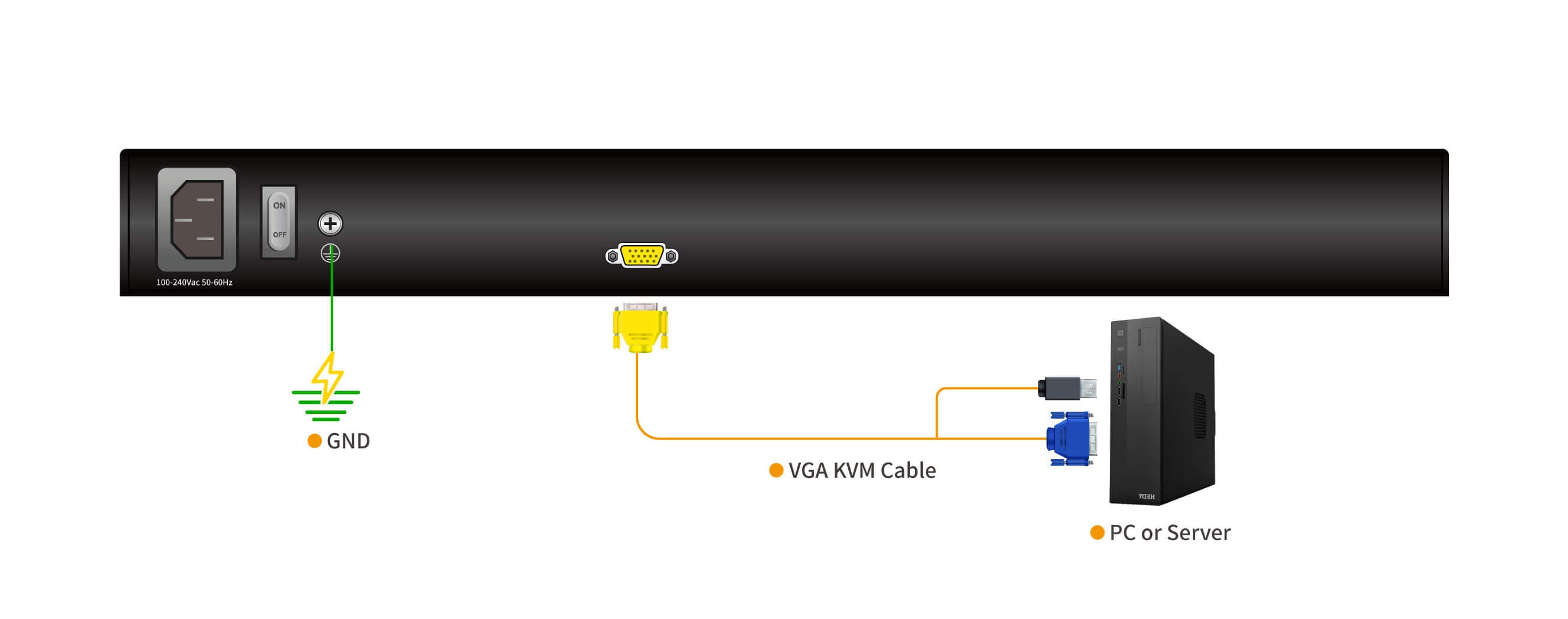

Product Diagram
Specifications
| Model |
TR0117SW |
|
| Computer Connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 17.3 " | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 262K | |
| Brightness | 300cd/m² (T y p) | |
| Contrast ratio | 800: 1 (T y p) | |
| Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard + 17 independent small numeric keyboard) |
|
| Input power | 100V-240Vac, 50-60Hz, <1.5A | |
| Power consumption | 11W | |
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 10.5 kg | |
| Product dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V—-72V DC | |
| Optional power input | 20-30VDC | |
| Model | TR3117SW | |
| Computer Connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 17.3" | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 262K | |
| Brightness | 300cd/m² (T y p) | |
| Contrast ratio | 800: 1(T y p) | |
| Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Video Inputs | HDMI, DVI, VGA | |
| Power input rating | 100V-240Vac, 50~60Hz, <1.5A | |
| Power consumption | 13W | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20— 60 ℃ | |
| Humidity | 0—80% RH, non-condensing | |
| N.W. | 11.7 kg | |
| Product dimension (W × D × H) | 448mm×525.6mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
