15.6" Short Depth Single Rail Rackmount LCD KVM Console - 1U , VGA, Up To 1920 x 1080 @60Hz


Style: 15.6" 1 Port Short Depth Single Rail Rackmount LCD KVM Console - VGA
Price:
Sale price$589.00

Description

Product ID:  TR0116XW / TR0216XW/ TR0416XW / TR0816XW

The Rack Mount KVM Console is a versatile and space-saving solution designed for the efficient management of multiple servers or computers from a central location. This console features a 15.6-inch LCD that provides crisp and clear visuals, making monitoring and controlling your systems easy.

The ultra-short depth rackmount LCD console is the ideal solution for the ETC specialized rack, 5G rack, network specialized rack, and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard, and touchpad, all in a 1U rack-mountable housing, with a short depth design - 360mm, it is fit for mounting in the small 600m rack.

TR0416XW / TR0816XW can be switched between connected systems and can be done effortlessly using multiple methods. The console features front-panel buttons for manual switching, hotkey combinations on the keyboard, or an intuitive on-screen display (OSD) menu. This flexibility provides convenient access and control over your connected devices.

Overall, the Rack Mount KVM Console with a 15.6-inch display, 1U form factor, and included VGA KVM cables provides a reliable and efficient solution for managing multiple servers or computers from a centralized location, making it an excellent choice for organizations seeking enhanced productivity and streamlined server management.

Maintain control of 1 or 2 or 4 or 8 computers with a single KVM console in our 1 or 2 or 4 or 8 port 15.6"Rackmount LCD KVM Console -  1U, VGA and order yours online today!

Ultra Short Depth Single Rail 15.6 Inch Widescreen LCD KVM Console

Ultra Short Depth Single Rail Widescreen 15.6” 2 Port LCD KVM Switch.

Product Features:

  • Integrated 15.6" widescreen LCD monitor, 99-key keyboard, touchpad, and 1 / 2 / 4 / 8 port  VGA KVM switch in a single console that occupies only 1U height of rack space.
  • The Optimum resolution is up to 1920 x 1080 @60Hz
  • With two function buttons and a scroll wheel
  • Dual interface – supports computers with PS/2 and USB keyboard and mouse
  • Hot pluggable – add or remove computers without having to power down the switch
  • Convenient computer switching via front panel pushbuttons, keyboard hotkey combination, or on-screen display (OSD).
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Full size 99 keys keyboard with integrated number pad.
  • Multiplatform Support-Compatible with Windows, Linux, Mac, and Sun
  • Supports servers from Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
  • Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE, FCC, UKCA, SAA, RoHS2.0 Compliant. 2-year warranty.

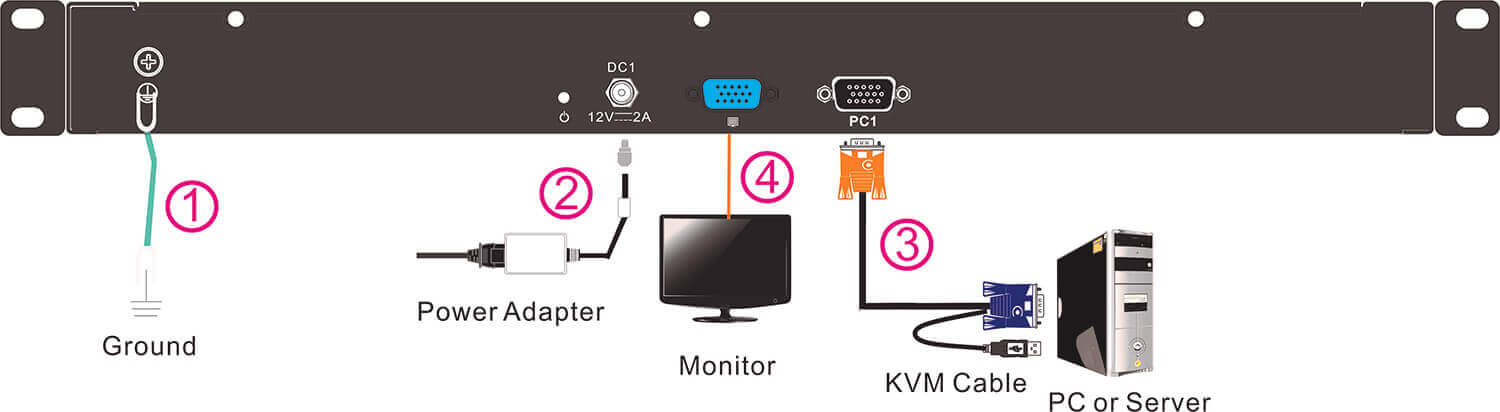

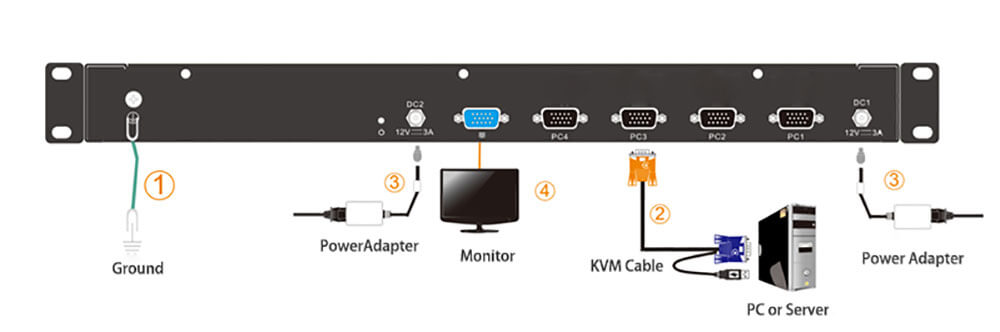

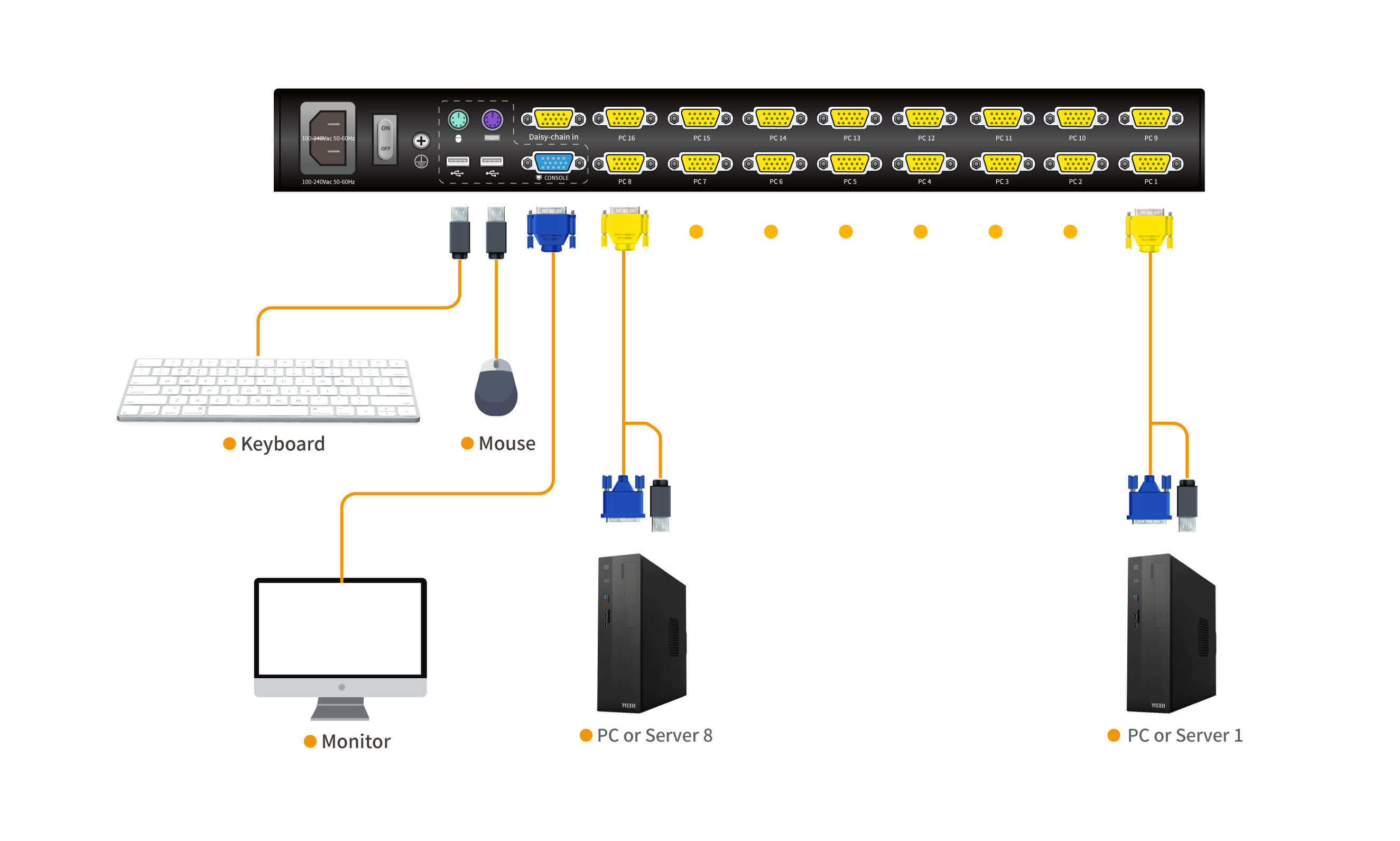

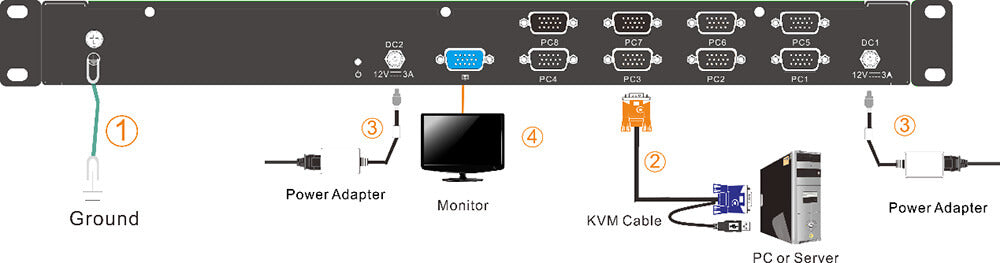

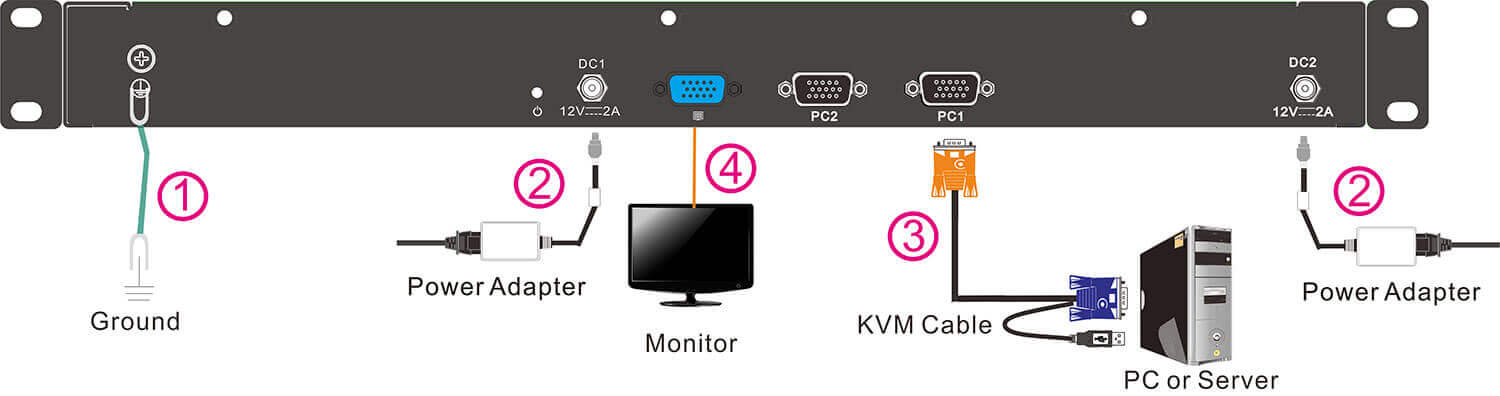

Product Diagram







 Specifications

Model TR0116XW / TR0216XW
Computer connections Direct 1 / 2
Max 1 / 2
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model FHD TFT
View area 15.6 "
Optimum resolution 1920 x 1080@60Hz
Display color 16.2M
Brightness 250cd/m²( T y p )
Contrast ratio 800 : 1 ( T y p )
Pixel pitch(mm) 0.17925(H) × 0.17925(V)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Scroll wheel Supports scroll wheel function
Keyboard 99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Input power DC12V /2A
Power consumption 7W / 8W
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 8.5kg / 8.7kg
Product dimension (W ×D ×H) 448mm×360 mm×42.5mm
Package dimension (W× D× H) 600mm×538mm×160mm



Model TR0416XW / TR0816XW
Computer connections Direct 4 /  8
Max 4 / 8
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model FHD TFT
View area 15.6 "
Optimum resolution 1920x1080@60Hz
Display color 16.2M
Brightness 250cd/m²( T y p )
Contrast ratio 800 : 1 ( T y p )
Pixel pitch(mm) 0.17925(H) × 0.17925(V)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Scroll wheel Supports scroll wheel function
Keyboard 99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Port selection Pushbuttons, hotkeys, OSD menu
Input power DC12V /2A
Power consumption 9W / 10W
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 8.8kg / 9kg
Product dimension (W × D × H) 448mm×360 mm×42.5mm
Package dimension (W × D × H) 600mm×538mm×160mm
