Style: 18.5" 1 Port Rackmount LCD KVM Console - HDMI
Price:
$748.00

Description

Product ID:  TR0118H / TR0818H / TR1618H

The Rackmount KVM Console is a versatile and efficient solution for managing your servers in a rackmount environment. This all-in-one unit offers seamless control and convenience, featuring a 18.5" FHD LCD monitor , full 99-key keyboard and touchpad in a single rail housing that occupies only 1U of rack spacea.

Equipped with a single HDMI KVM port, this console lets you connect and control your servers easily. The 18.5-inch rack mount monitor delivers a crisp and clear display with a resolution of 1920 x 1080 @60Hz, ensuring an optimal viewing experience.

Designed with a slim 1U form factor, this LCD KVM drawer saves valuable rack space while providing essential functionality. It boasts a high Mean Time Between Failures (MTBF) of 50,000 hours, ensuring reliable performance and durability.

The KVM switch supports USB connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

Effortlessly manage your server infrastructure with this feature-rich rackmount KVM console, combining a high-definition display, intuitive input controls, and space-saving design.

Experience the convenience of 18.5'' Rackmount LCD KVM Console - 1U, HDMI and order yours online today!

Product Features:

  • Integrated rack kvm with 18.5” TFT LCD widescreen monitor, keyboard/touchpad
  • 18.5"  LCD monitor supports highlight, high definition and high resolution
  • Resolution is up to 1920x 1080 60Hz
  • Standard HDMI connection-Connect to a server or computer via standard HDMI connector
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Broadcast mode--operations simultaneously performed on all selected computers
  • Hot pluggable --add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
  • Support computers with USB keyboard and mouse
  • Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Full size 99 keys keyboard with integrated number pad
  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

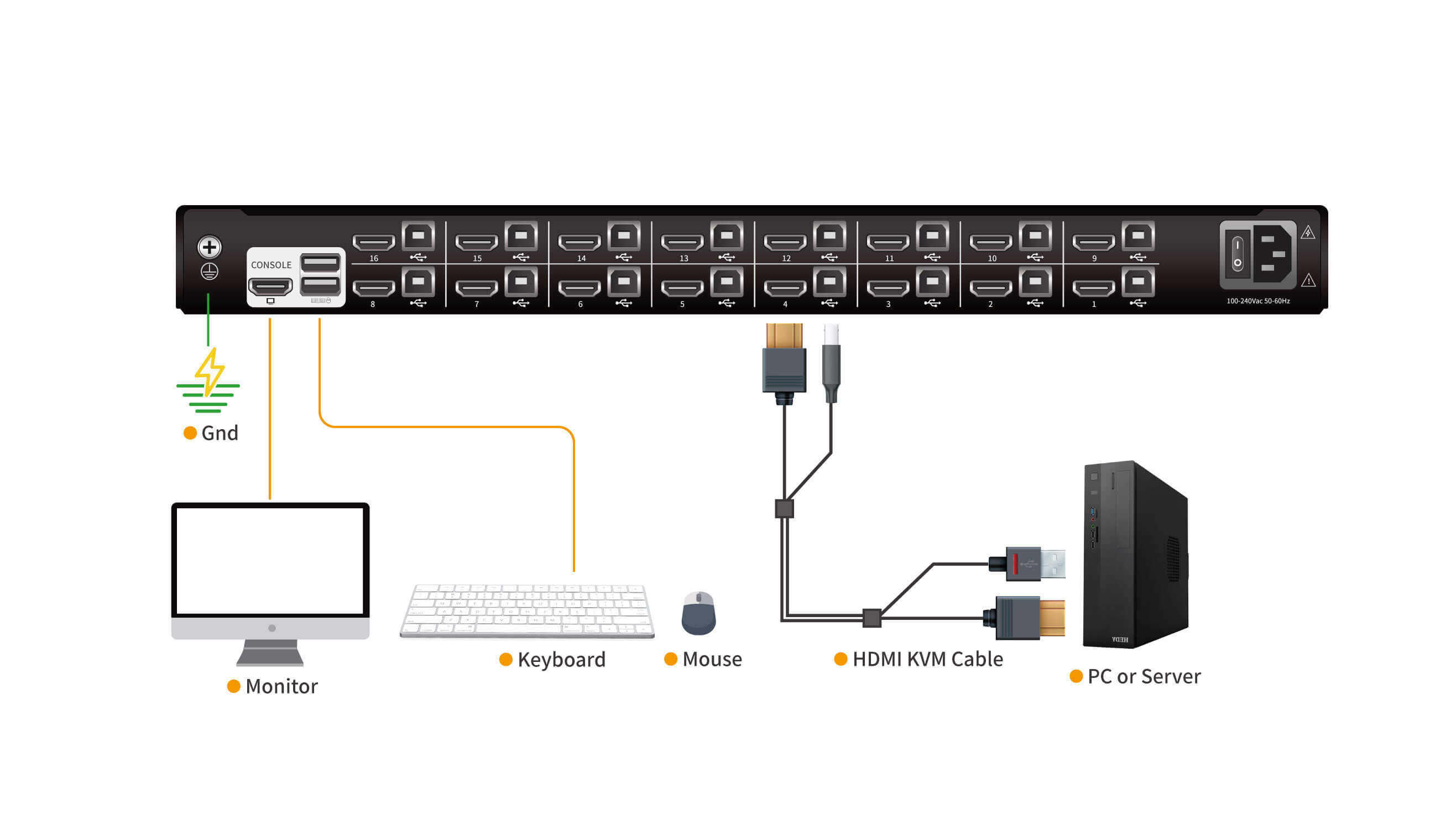

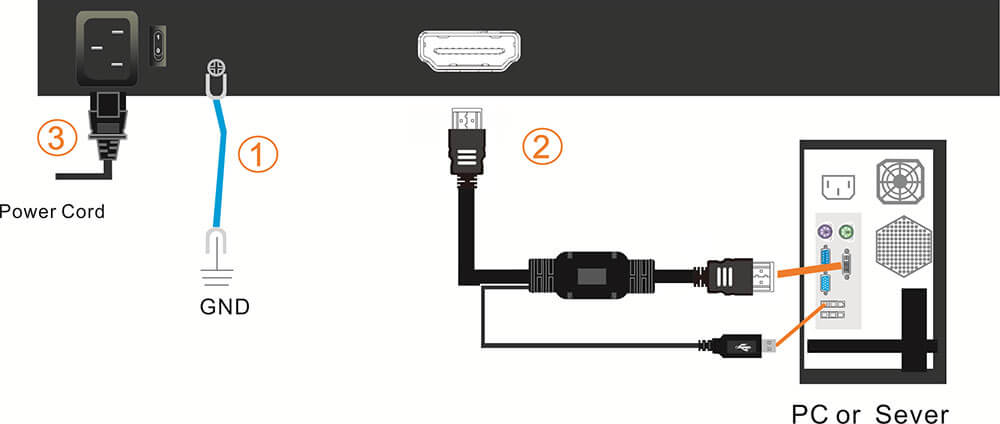

Connection Diagram:





Product Specifications:

Model  TR0118H
Computer Connections 1
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model FHD TFT
View area 18.47 "
Optimum resolution 1920×1080@60Hz
Display color 16.7 M
Brightness 250cd/m² (T y p)
Contrast ratio 1000: 1(T y p)
Pixel pitch(mm) 0.213(H) × 0.213(W)
Mouse X/Y resolution >1000 points / inch, (40 points/mm)
Scroll wheel Support scroll wheel function
Keyboard 99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Input power 100V – 240Vac, 50 ~ 60Hz, <1.5A
Power consumption 17W
Operating temperature 0 – 50 ℃
Store temperature -20 – 60 ℃
Humidity 0 – 80% RH, non-condensing
Net weight 12.5 kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm



Model  TR0818H / TR1618H
Computer connections Direct 8 / 16
Max 8 / 16
Port emulation Keyboard, mouse USB
LCD monitor LCD model FHD TFT
View area 18.47″
Optimum resolution 1920×1080@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.213(H) × 0.213(W)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Roll wheel Supports scroll wheel function
Keyboard 99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Port selection pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 28W / 30W
Mounting distance 686-770mm (L=262mm)
Mounting bracket can be customized for other
mounting distance
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 11.8kg / 12kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
