Description
Product ID: TR0127H / TR0827H / TR1627H
The Rackmount KVM Console is a versatile and efficient solution for managing your servers in a rackmount environment. This all-in-one unit offers seamless control and convenience, featuring a 17'' LCD monitor , full 99-key keyboard and touchpad in a single rail housing that occupies only 1U of rack spacea.
Equipped with a single HDMI KVM port, this console lets you connect and control your servers easily. The 17'' rack mount monitor delivers a crisp and clear display with a resolution of 1280×1024@60Hz, ensuring an optimal viewing experience.
The KVM switch supports USB connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.
Effortlessly manage your server infrastructure with this feature-rich rackmount KVM console, combining a high-definition display, intuitive input controls, and space-saving design.
Experience the convenience of 17'' Rackmount LCD KVM Console - 1U, HDMI and order yours online today!
Product Features:
- Integrated rack kvm with 17” TFT LCD widescreen monitor, keyboard/touchpad
- 17" LCD monitor supports highlight, high definition and high resolution
- Resolution is up to 1280×1024@60Hz
- Standard HDMI connection-Connect to a server or computer via standard HDMI connector
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
- Support computers with USB keyboard and mouse
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

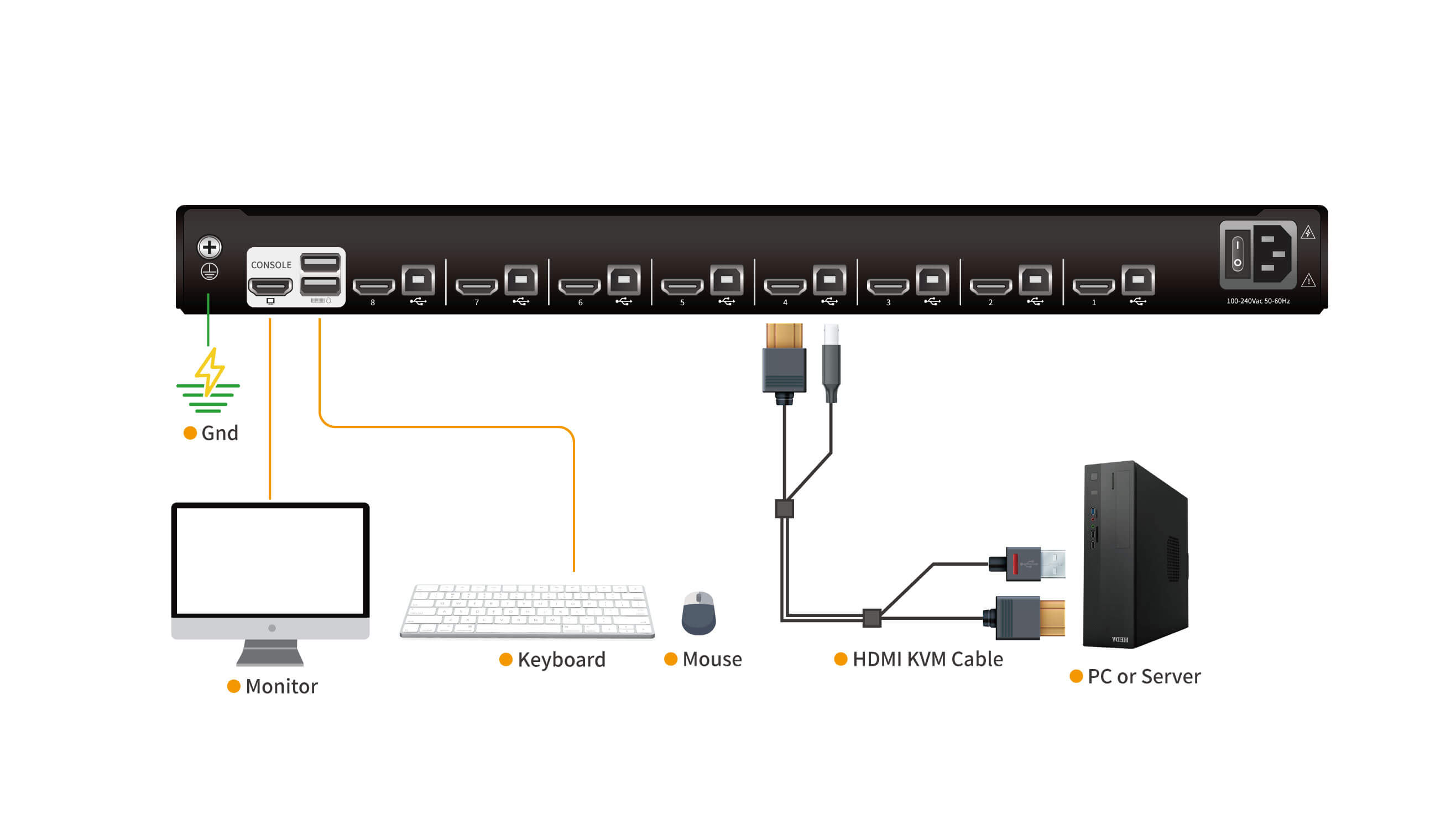

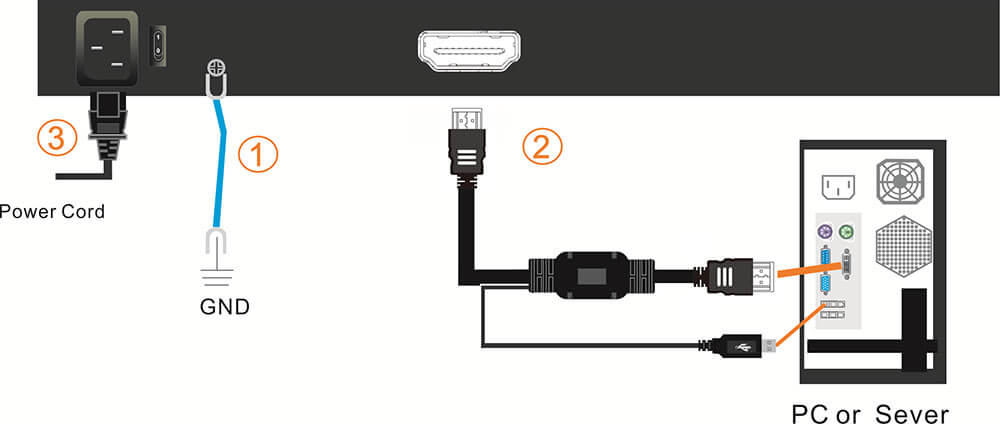

Connection Diagram:
| Model | TR0827H / TR1627H | |
| Computer connections | Direct | 8 / 16 |
| Max | 8 / 16 | |
| Port emulation | Keyboard, mouse | USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Roll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | Front panel pushbuttons, hotkeys, OSD menu | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 22W / 24W | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non condensing | |
| Net weight | 12.8 kg / 13kg | |
| Product dimension (W × D × H) | 448mm×581mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V— -72V DC | |
