Description
Product ID:TR0127D / TR0827D / TR1627D
Description:
With the 17" rackmount LCD KVM switch users can seamlessly integrate any PC or server into the KVM switch so you can administer your daily tasks with ease.
Combining a high-definition 17" LCD monitor, full 99-key keyboard, and touchpad in a 1U compact housing, you’ll be freeing up space on your cluttered workstation or server room so everything stays nice and organized.
The compact design allows you to fit the console into 1U of rack space giving you more room to work with less time stressing over a messy desk.
Set up is simple and quick. Just plug in the corresponding cable connections into the USB port, power the console on and you ready to streamline control over any PC you like!
Experience the convenience of centralized control with the 17" Rackmount LCD KVM Console - 1U, DVI, Up To 1280x1024@60Hz and order yours online today!
Product Features:
- Monitor, keyboard, and mouse in a 1U compact design
- Connect to KVM Switch or servers via standard DVI connector
- Integrated KVM console with a 17" widescreen LCD monitor in a single rail housing
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Superior video quality –up to 1280x1024@60Hz
- Support Hot-pluggable
- Standard 99-key keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
- Standard rack mount kit and KVM cable included

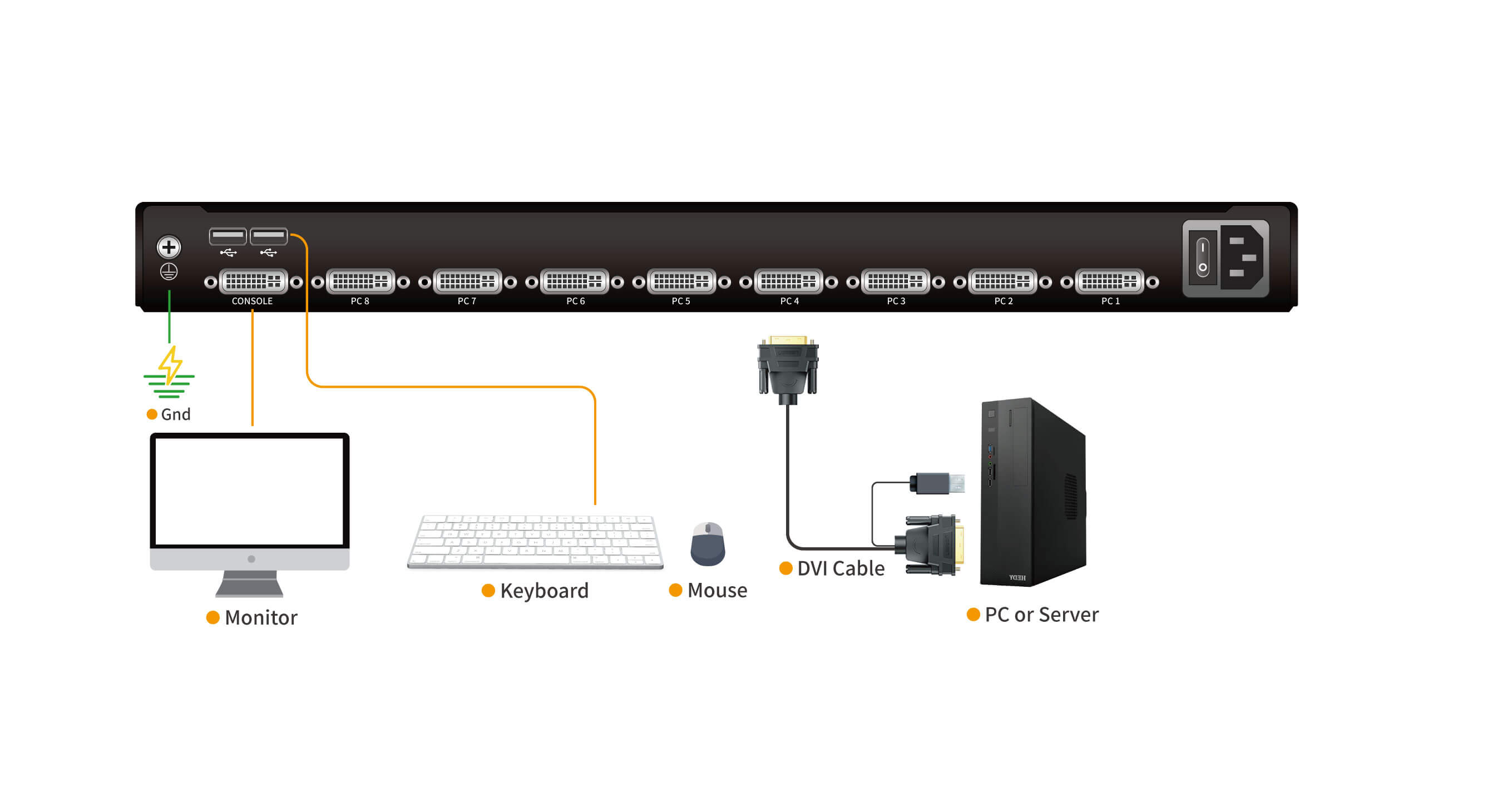

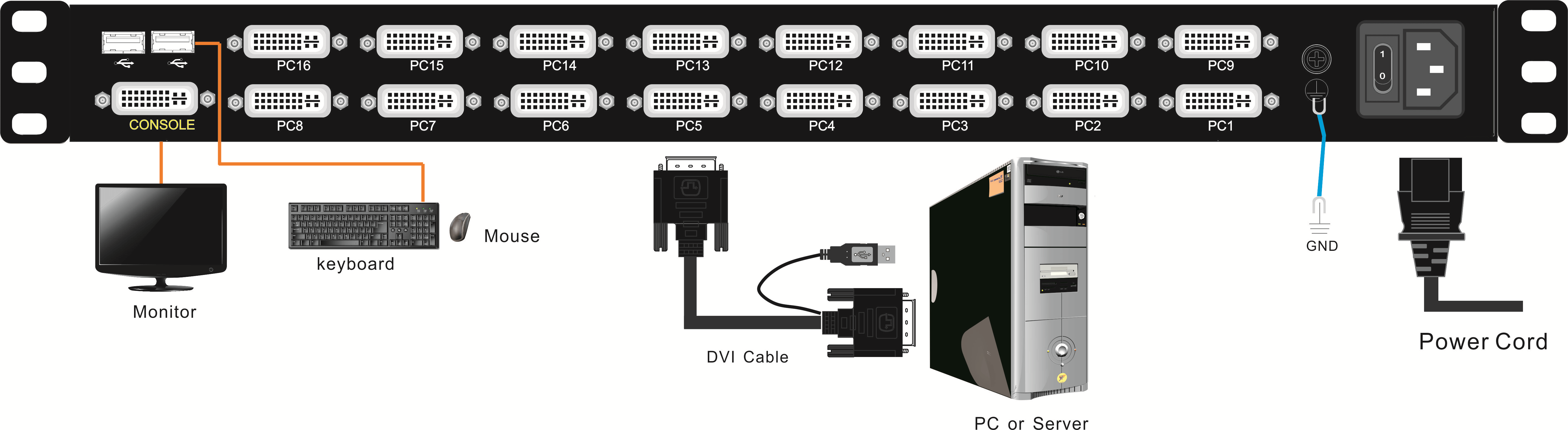

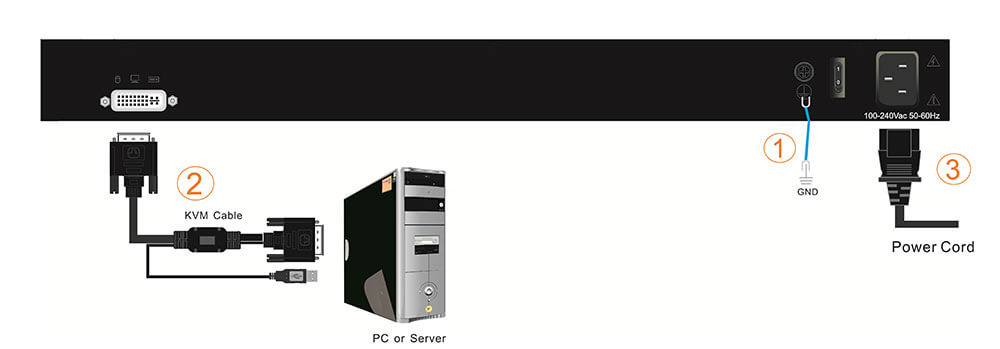

Connection Diagram:
Product Specifications:
| Model | TR0127D / TR0827D / TR1627D | |
| Computer Connections | Direct | 1/8/16 |
| Max | 1/8/16 | |
| Port emulation | Keyboard, mouse | PS/2, USB/ USB / USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard + 17 independent small numeric keyboard) |
|
| DVI Signal | DVI-D | |
| Port Selection | pushbuttons, hotkeys, OSD | |
| Input power | 100V-240Vac, 50-60Hz, <1.5A | |
| Power consumption | 13W | |
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 11.7 kg | |
| Product dimension (W × D × H) | 448mm×481mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V—-72V DC | |
| Optional power input | 20-30VDC | |
