Description
Product ID: TR0401KM
Description:
Our 4 Port Keyboard Mouse KM Switch seamlessly integrates up to 4 PCs with centralized keyboard and mouse control. You can now control 4 computers at once in a single work station, freeing up cluttered space with tremendous real-time speed.
It’s compatible with all major operating systems without the need for additional software downloads. Just plug in the corresponding cable connectors into the USB ports and set up your work station wherever you please.
To fit different installations, the TR0401KM also provides management software to help users customize the mouse cursor movement path according to their monitor layouts at the desktop.
You can switch between computers with simplicity via the front panel buttons with complete security keeping your privacy safe at all times without any data leakage.
Maintain control over 4 computers with a single KM switch with our 4 port keyboard mouse KM switch and order yours online today!
Product Features:
- Single USB keyboard and mouse control up to 4 computers
- Simply move the mouse cursor between connected computers to switch the keyboard and mouse focus from one computer to the next
- Provides LED indicator to help you find your current mouse/keyboard location (Optional) No Software Required
- Port selection via front panel pushbuttons, keyboard hotkey and mouse cursor
- An GUI-based management software enables users to customize monitor layouts

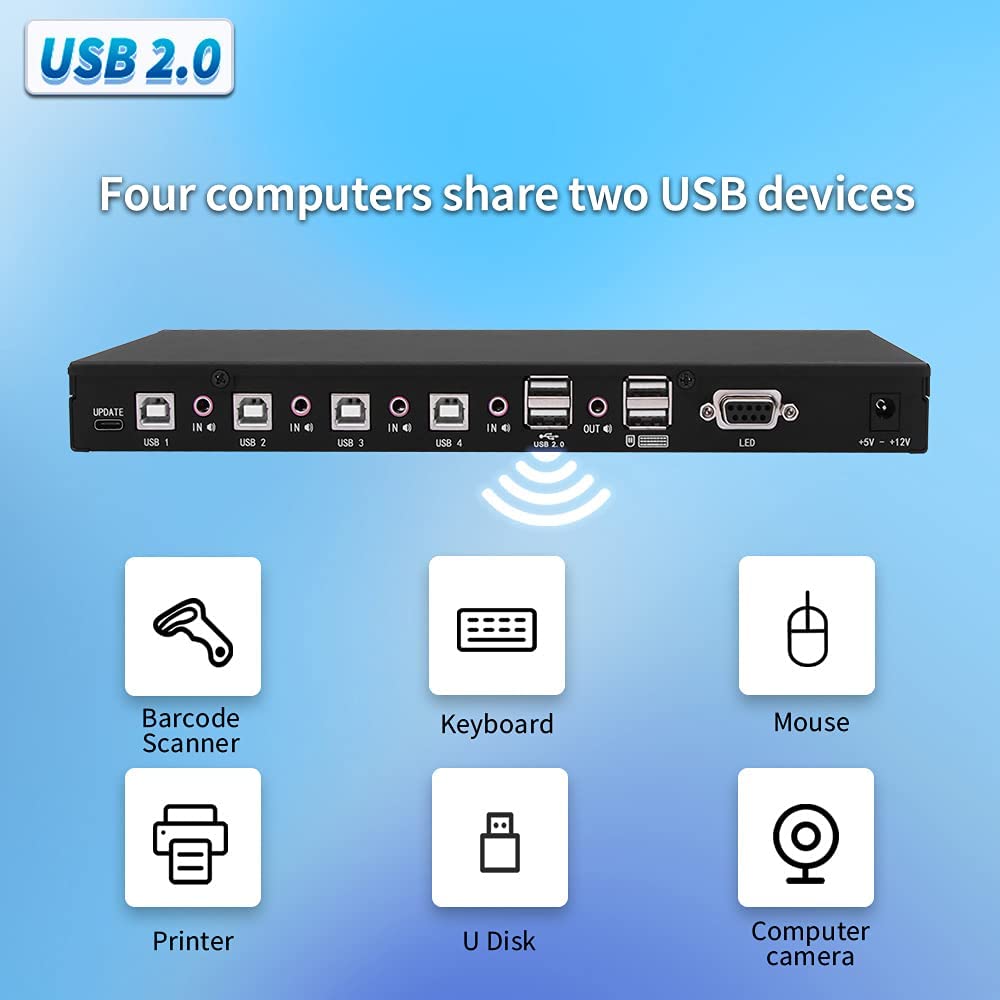

- Support USB2.0 Hub, 4 PCs share two USB peripheral devices such as mouse, keyboard, flash drive, scanner, USB switch selectors
- Dedicated simulation processor
- Support multiple operating systems
- Support stereo audio output
- It is compatible with any PC and all major operating systems without the need for software downloads

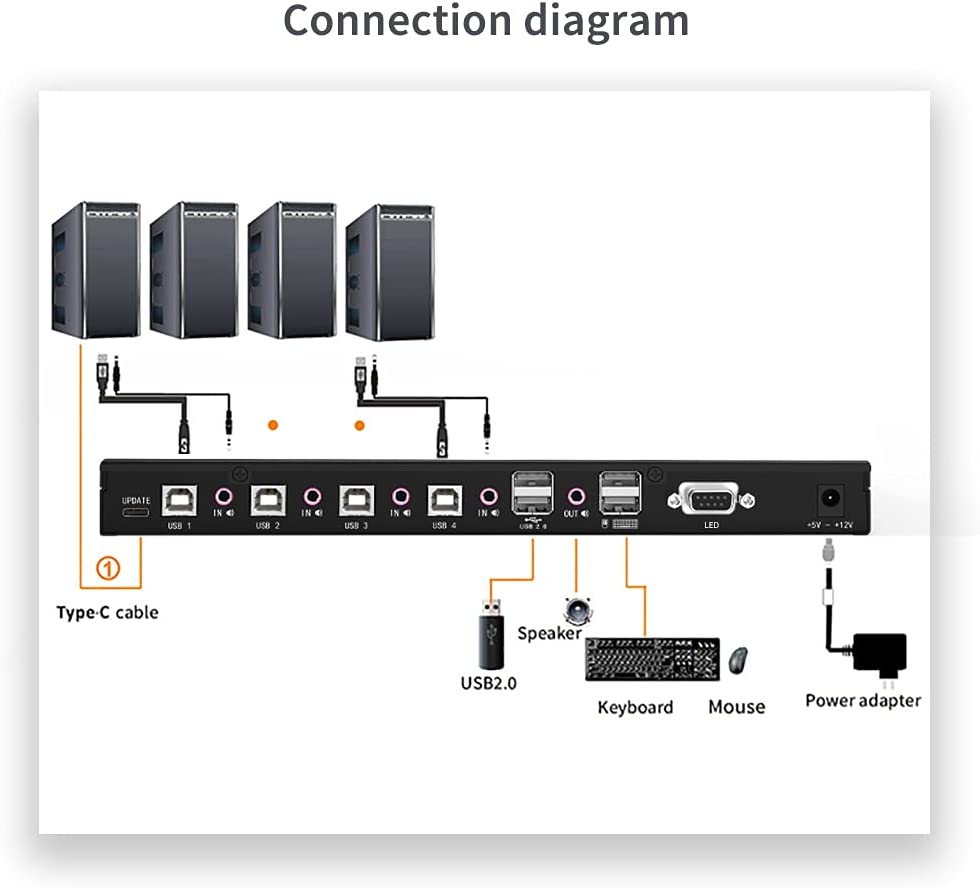

Connection Diagram:
Product Specifications:
| Model | TR0401KM | ||
| Computer Connections | 4 | ||
| Port selection | Pushbuttons, Hotkey, Mouse cursor | ||
| Connectors | User Console | Keyboard/Mouse | 1 x double-layer USB type A |
| Speaker (out) | 1 x Min Stereo Audio | ||
| PC ports | Keyboard/Mouse | 4 x USB type B | |
| Speaker (in) | 4 x Min Stereo Audio | ||
| Power | 1 x DC socket | ||
| USB2.0 Port | 1 x double-layer USB type A | ||
| LED OUT | 1 x DB9 (Female) | ||
| Upgrade Port | 1 x USB-C | ||
| Button | Port selection | 2 x buttons | |
| Power | 5V- 12V DC | ||
| Power Consumption | 3W | ||
| Emulation | Keyboard/Mouse | USB | |
| Environment | Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-60℃ | ||
| Humidity | 0-80%RH, Non-condensing | ||
| Other Features | Material | Metal, Plastic | |
| Weight | 0.9kg | ||

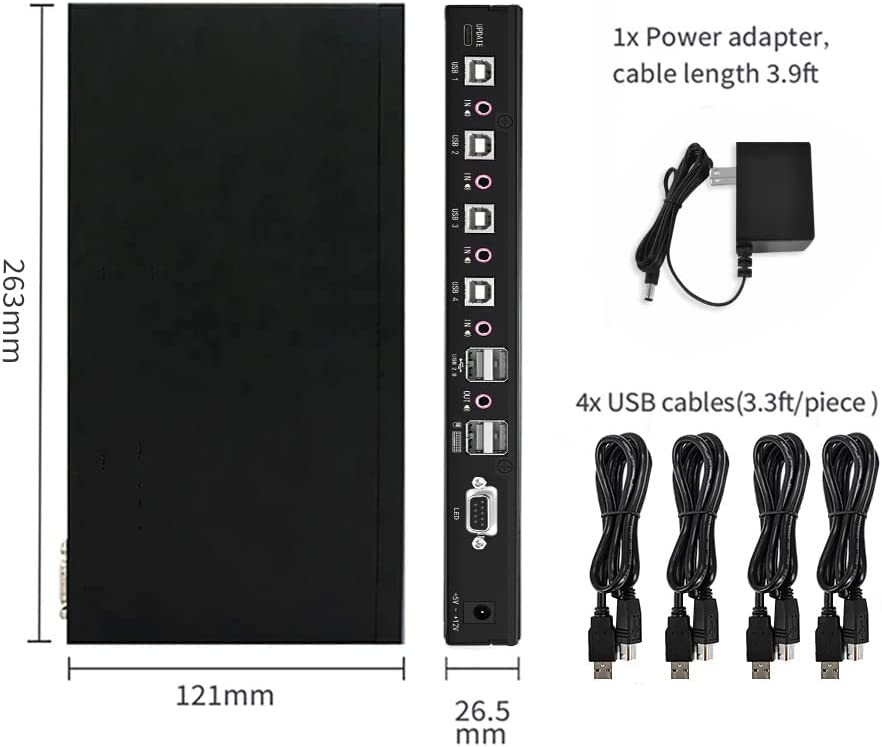

| Dimension | 263mm x 121 mm x 26.5mm | ||
