Description
The 3G-SDI Multi-Function Scaler Splitter is a broadcast-grade signal processing workhorse engineered specifically for high-demand professional video workflows. Powered by an advanced FPGA video processing engine, this versatile hardware solution converts a single HD-SDI input into two scaled 3G/HD/SD-SDI outputs.
Equipped with high-performance video scaling (Scaler) technology, it allows operators to freely adjust the SDI output resolution (with 9 selectable resolution presets) to perfectly match different display devices or downstream systems on-site.
Beyond video scaling, this device integrates both audio embedding and audio de-embedding via a 3.5mm audio interface into a single compact unit. It enables users to either embed external analog audio into the SDI signal or extract embedded SDI audio for external processing and real-time headphone monitoring.
By combining scaling, distribution, and audio management into one device, it eliminates cable clutter and reduces the need for multiple single-purpose hardware components.

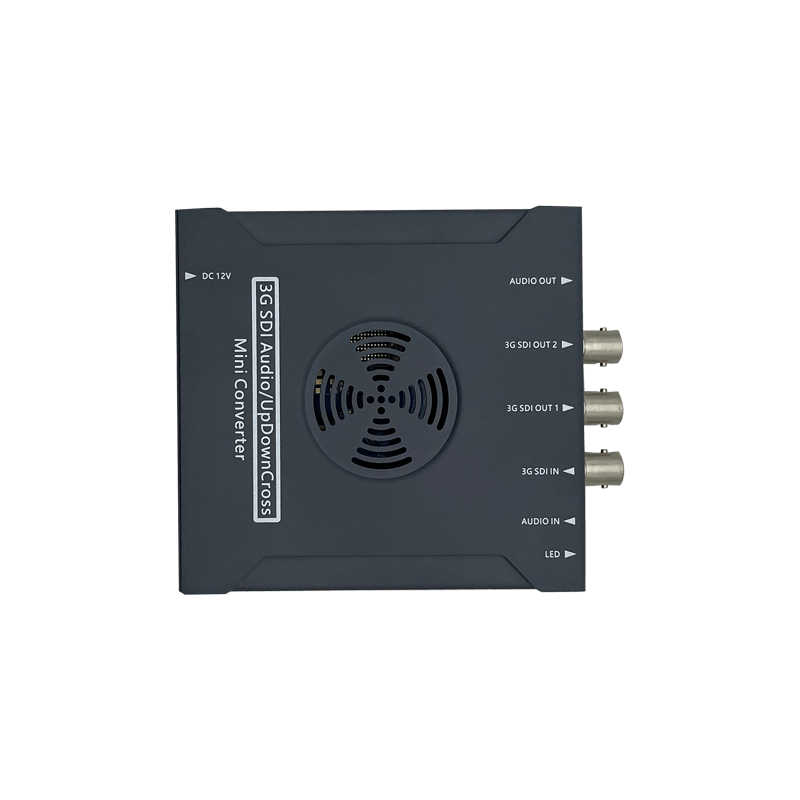

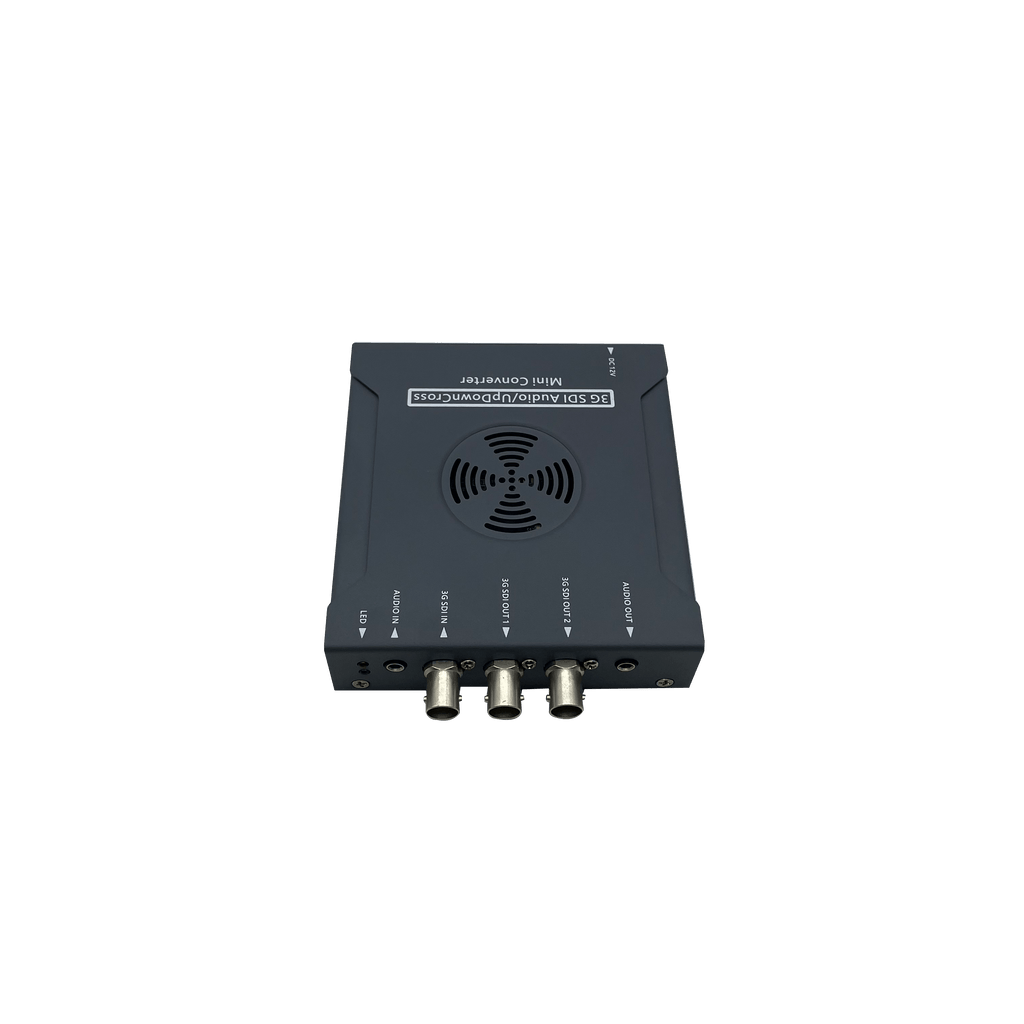

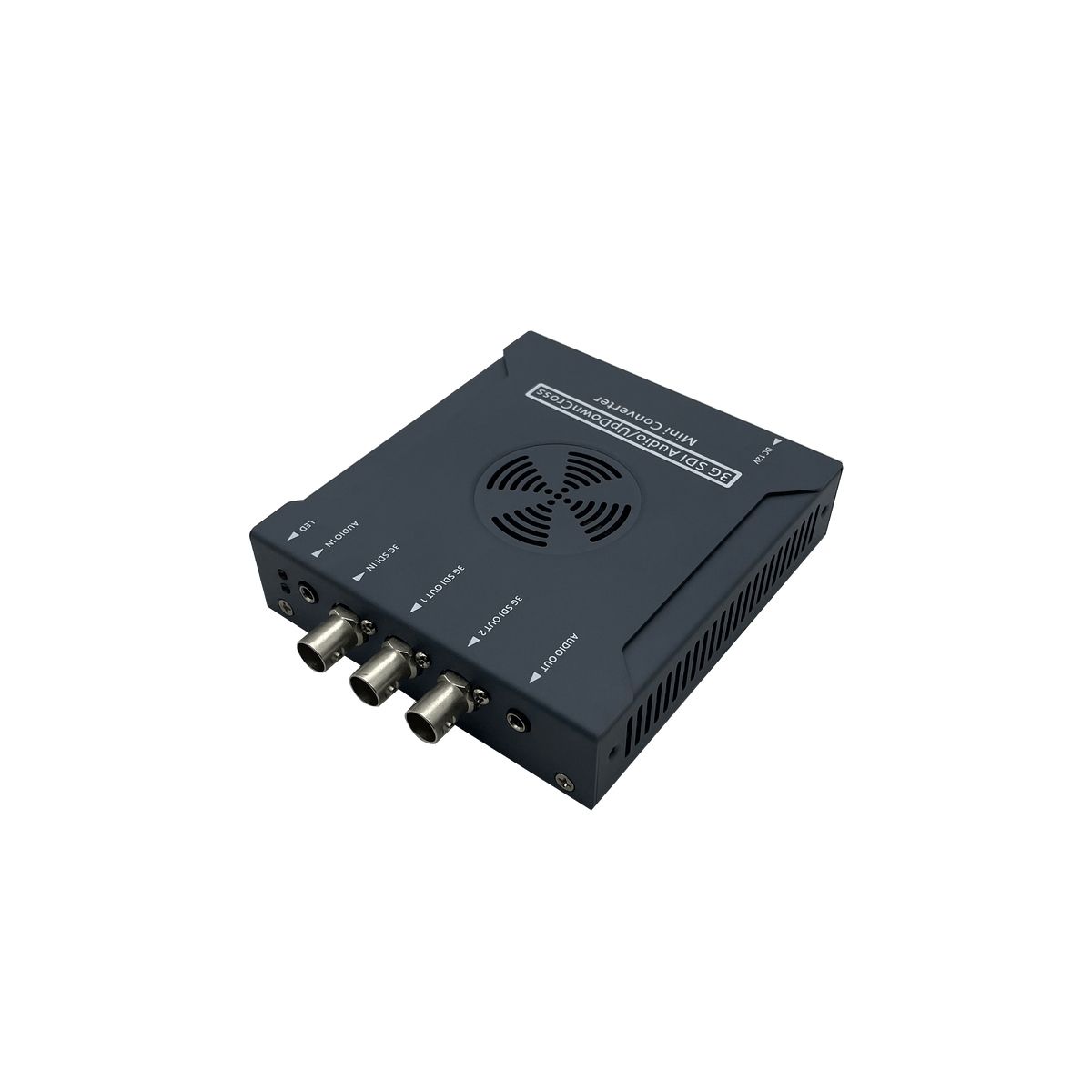

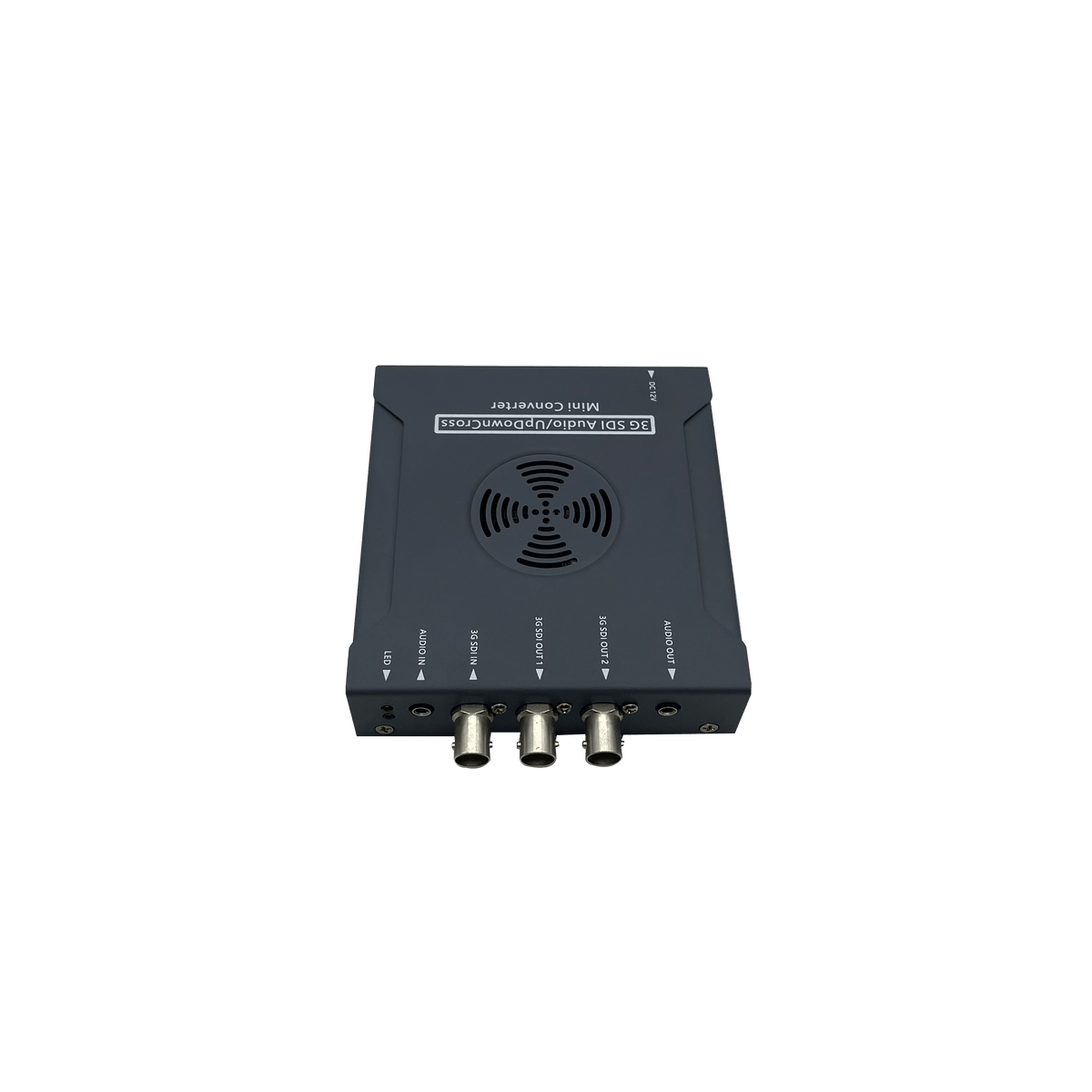

Product Interface
|
Video input: SDI * 1
Video output: SDI * 2
Audio input: 3.5MM*1
Audio output: 3.5MM*1
Power input: DC 12V 1A
|
Key Features
- Advanced FPGA Engine & Scaler: Built-in hardware-based FPGA video processor with 9 selectable output resolution presets (up to 1080p@60Hz) to easily adapt to mixed-resolution displays and production environments.
- 1-in-2-out SDI Distribution: Automatically detects and converts 1-channel SDI input into 2 identical 3G/HD/SD-SDI scaled outputs.
- Integrated Audio Embedding & De-Embedding: Features a 3.5mm audio port for seamlessly embedding external analog audio into the SDI stream or extracting embedded SDI audio out to external mixers and monitors.
- Broadcast-Standard Compliance: Fully compatible with SMPTE 259M, 292M, and 424M standards, with low jitter (≤0.2UI) and YUV 4:2:2 color space support.
- Re-Clocking & Signal Integrity: Features integrated SDI re-clocking and automatic cable equalization for stable signal transmission up to 100 meters (328 ft).
- Perfect A/V Sync: Ensures lip-sync precision with full audio and video synchronization during conversion and scaling.
- Plug & Play / Wide Power Range: Pure hardware architecture with zero driver installation required; supports 5V–12V wide-voltage supply and centralized chassis mounting.
Applications & Workflows
Designed to simplify complex signal processing across professional video environments:
- Broadcast & Live Production: Non-linear editing (NLE) suites, live TV broadcasting, newsroom media centers, and OB vans.
- Pro AV & Staging: Large-scale multimedia display walls, digital signage, live event staging, and AV entertainment hubs.
- Enterprise & Medical: HD video conferencing, medical teaching/demonstration, sports arenas, and mission-critical surveillance setups.
Technical Specifications
| Specification | Details |
| Processing Engine | Hardware FPGA Video Processing Engine with Scaler |
| Input Interface | 1 × SDI BNC, 75Ω |
| Input Resolution | Auto-adaptive up to 1080p@60Hz (Backward compatible) |
| Output Interfaces | 2 × SDI BNC, 75Ω (Scaled Output) |
| Output Resolutions | • 1080p @ 30/50/60Hz • 1080i @ 50/60Hz • 720p @ 60Hz • 480i @ 60Hz / 576i @ 60Hz |
| SDI Data Rate | 143 Mbps ~ 2.97 Gbps |
| Video Bandwidth | 148.5 MHz |
| SMPTE Standards | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| Color Space & Jitter | YUV 4:2:2 | Jitter ≤ 0.2 UI |
| Audio Interface | 1 × 3.5mm Audio Jack |
| Audio Function | Audio Embedding & De-embedding (48 kHz Sampling Rate) |
| Transmission Distance | Up to 100 meters / 328 feet (Belden 1694A or equivalent cable) |
| Operating Temperature | 0°C ~ +50°C (32°F ~ 122°F) |
| Operating Humidity | 20% ~ 70% RH (Non-condensing) |
| Storage Temp / Humidity | -20°C ~ +70°C | 0% ~ 90% RH (Non-condensing) |
| Power Supply | DC 5V ~ 12V Wide Voltage Input |
| Power Consumption | 3W (Max) |
| Dimensions | (L × W × H) 110 × 100 × 24 mm |
| Weight | • Net Weight (Unit): 0.30 kg (0.66 lbs) • Gross Weight (Package): 0.70 kg (1.54 lbs) |
Connection Diagram
