Description
Product Overview

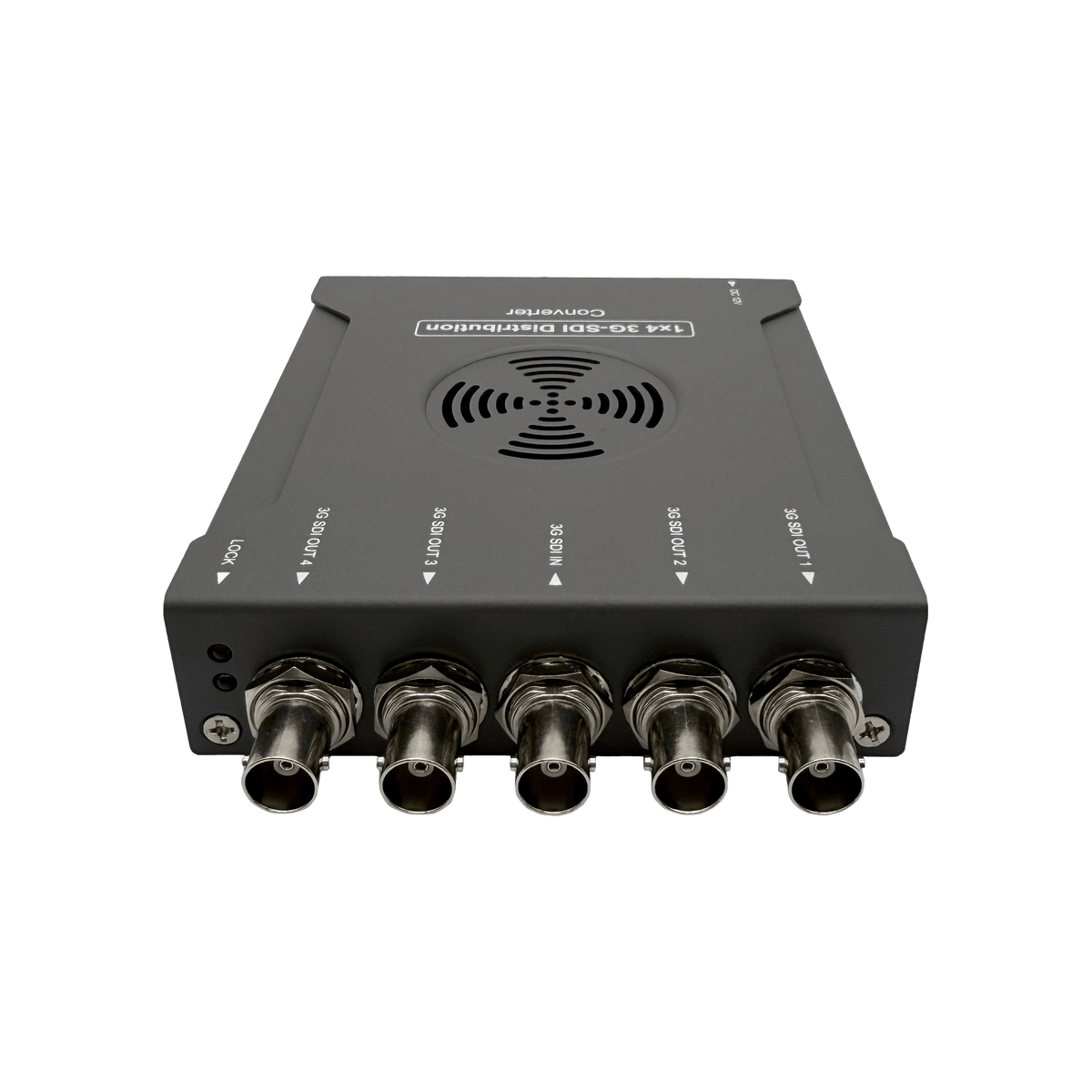

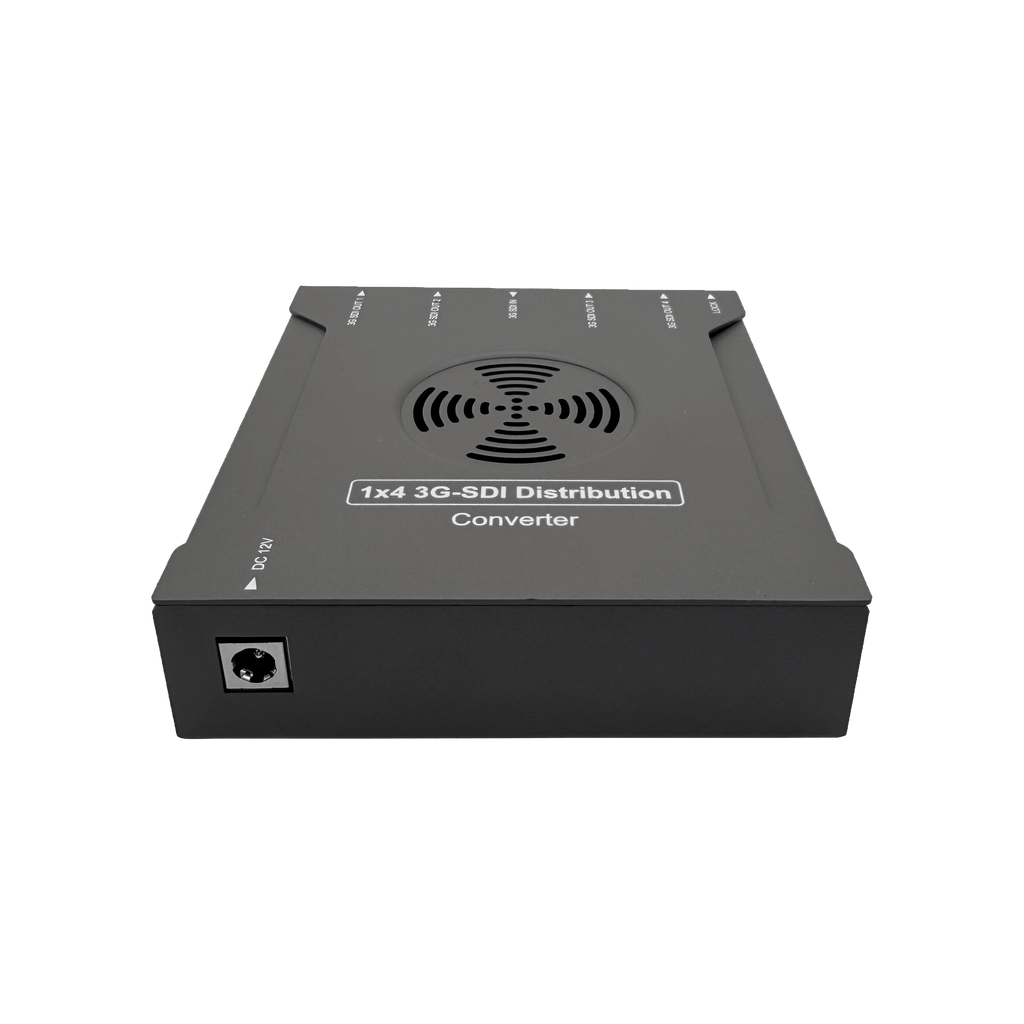

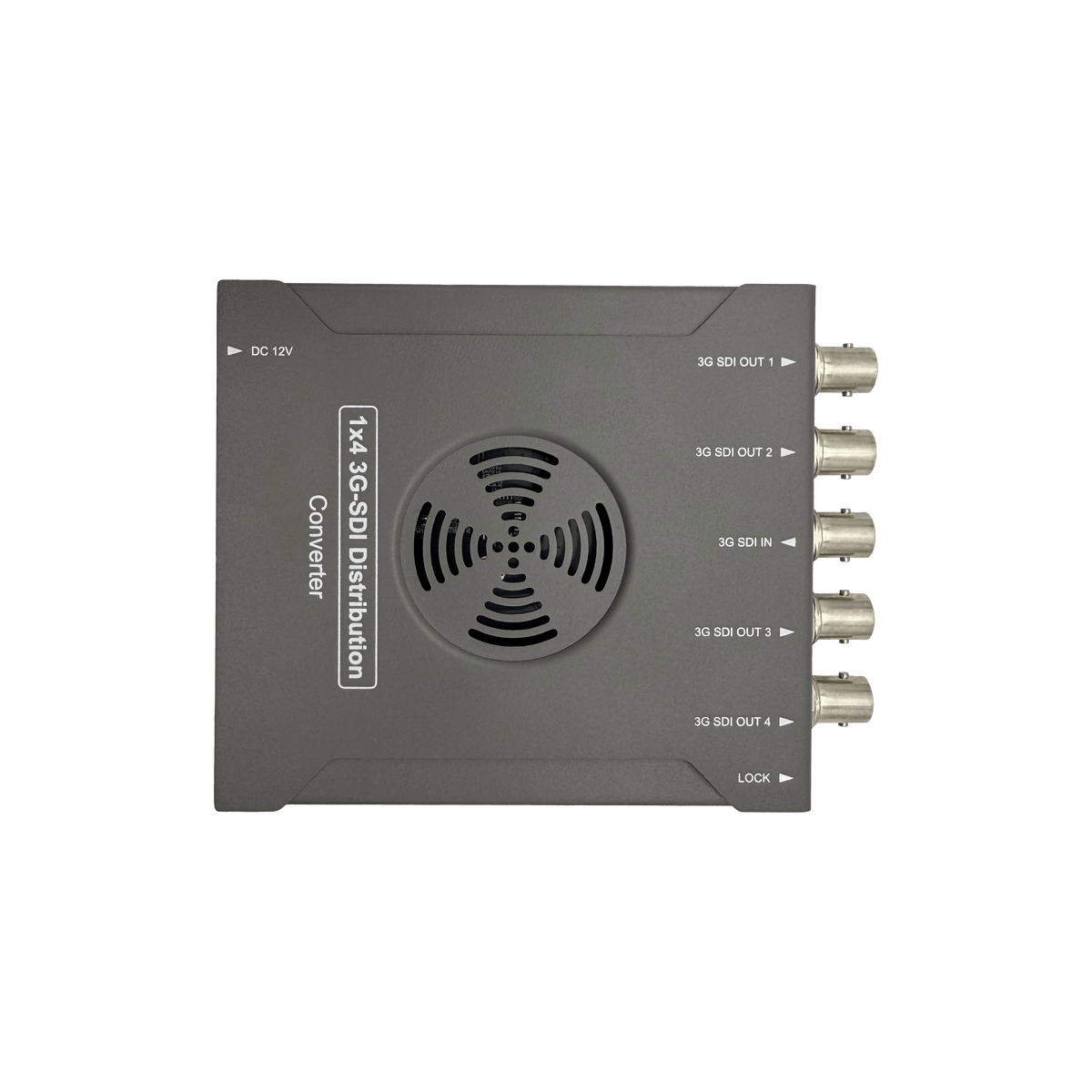

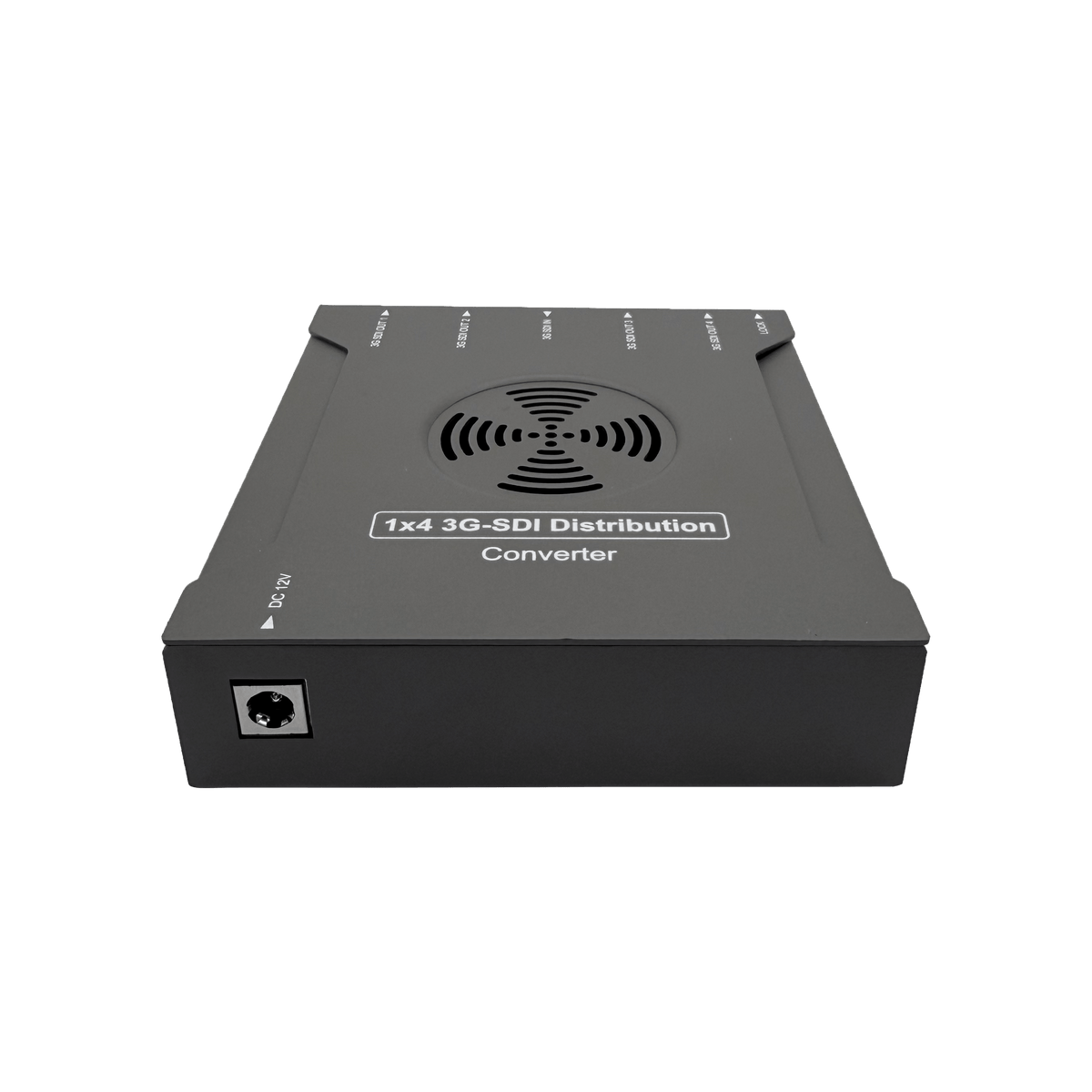

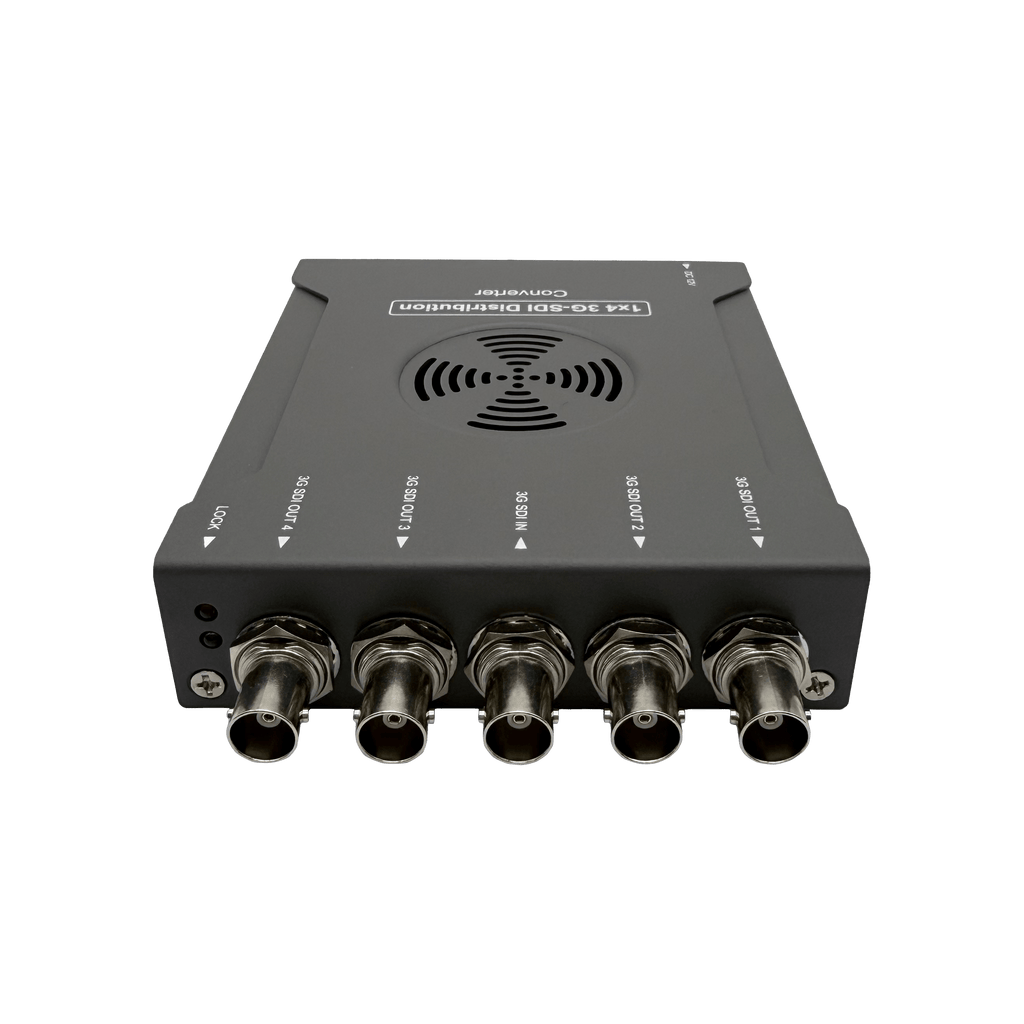

The 3G-SDI 1x4 Distribution Amplifier is a broadcast-grade, pure hardware video splitter designed to seamlessly distribute a single 3G-SDI input into four identical, synchronized 3G-SDI outputs without signal loss. Built for maximum reliability, plug-and-play simplicity, and compact portability, this high-performance splitter is engineered to support demanding, continuous broadcast and professional AV operations.
Equipped with an advanced internal re-clocking chip, automatic cable equalization, and signal amplification, it ensures rock-solid, ultra-high-definition video transmission over long distances (up to 150 meters). Beyond the standalone mini-chassis form factor, it supports multi-channel high-density rackmount deployments—scalable to 4x16, 8x32, or 16x64 configurations in standard 1U/2U/3.5U chassis.
Key Features
- 1-in-4-out Distribution: Effortlessly splits 1-channel 3G-SDI input into 4-channel 3G-SDI outputs.
- Re-Clocking & Signal Amplification: Integrated SDI re-clocking and automatic cable equalization maintain pristine signal integrity and extend 3G-SDI cable runs up to 150 meters (492 ft).
- High-Density Scalability: Flexible architecture supports standalone box deployment as well as high-density 1U, 2U, and 3.5U centralized rackmount systems (up to 16x64 distribution).
- Embedded Audio & ASI Support: Fully supports embedded SDI audio pass-through, audio-video synchronization, and ASI-SDI signal distribution.
- Full HD Resolution: Supports resolutions up to 1080p@60Hz, with backward compatibility for lower SD/HD formats.
- Plug & Play / Hot-Swappable: Pure hardware architecture with no driver required; supports hot-swapping for uninterrupted production workflows.
- Wide Voltage Input: Designed with a 5V–12V wide-voltage DC power supply for enhanced stability and operational safety.
Target Applications
- Designed specifically for mission-critical visual environments, including:
- Broadcast & Live Production: Non-linear editing (NLE) suites, broadcast studios, control rooms, and OB vans (outside broadcast trucks).
- Pro AV & Staging: Live event broadcasting, multimedia displays, and staging demonstrations.
- Enterprise & Security: HD video conferencing, centralized display management, and high-definition surveillance monitoring.
| Parameter | Specification |
| Input Interface | SDI BNC, 75Ω |
| Input Resolution | 480i@60Hz ~ 2160p@60Hz (Auto-adaptive) |
| SDI Standards | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE ST-2081/ST-2082 |
| SDI Data Rate | 1.485 Gbps ~ 12 Gbps |
| Jitter | ≤ 0.2 UI |
| Output Interface | SDI BNC, 75Ω |
| Output Resolutions | • 2160p @ 30/60Hz • 1080p @ 30/50/60Hz • 1080i @ 50/60Hz • 720p @ 30/60Hz • 480i @ 60Hz / 576i @ 60Hz |
| Rise / Fall Time | < 40 ps |
| Voltage Amplitude | 380 mVp-p (Nominal) |
| Color Space | YUV 4:2:2 / YUV 4:4:4 |
| Return Loss | > 10 dB |
| Audio Sampling Rate | 48 kHz |
| Operating Temperature | 0°C ~ +50°C (32°F ~ 122°F) |
| Operating Humidity | 20% ~ 70% RH (Non-condensing) |
| Storage Temperature | -20°C ~ +70°C (-4°F ~ 158°F) |
| Storage Humidity | 0% ~ 90% RH (Non-condensing) |
| Power Supply | DC 12V / 1A |
| Power Consumption | 2W (Max) |
| Dimensions | (L × W × H) 110 × 106 × 24 mm |
| Weight | Net Weight (Unit): 0.35 kg (0.77 lbs); Gross Weight (Package): 0.70 kg (1.54 lbs) |
Connection Diagram
