Description
Product ID: TR0119D / TR0819D / TR1619D
Description:

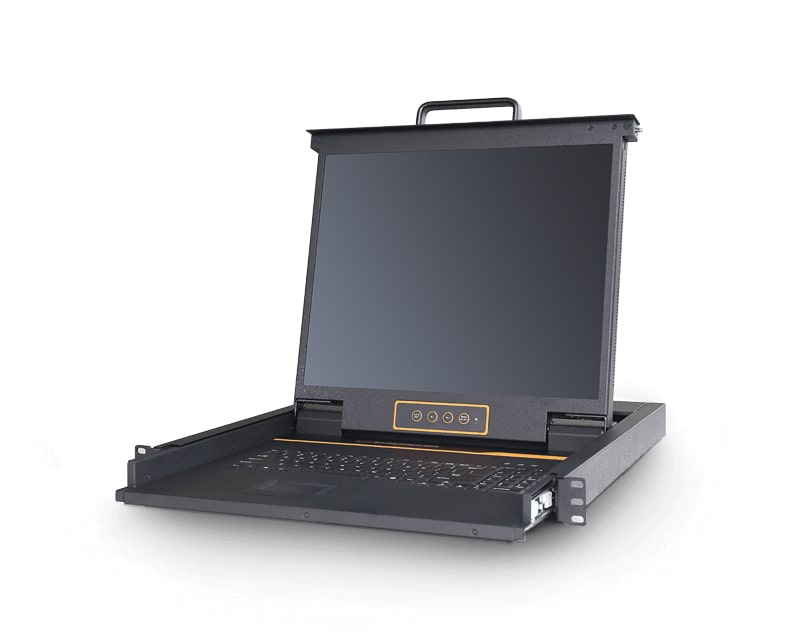

The 19" DVI LCD KVM console includes a full-size keyboard, touchpad, and 19" LCD monitor.
The ultra-thin LCD monitor, full keyboard, touchpad technology, and easy-to-install rack mount kit combine to form a high-quality and effective solution for rack monitoring and management.
You can connect to KVM switches or servers seamlessly with a standard DVI connector while also supporting PS/2 and other USB connections in crystal clear 1280x1024 screen resolution.
Experience the convenience of 19" Rackmount LCD KVM Console - 1U, DVI and order yours online today!
Product Features:
- Monitor, keyboard, and mouse in a 1U compact design
- Connect to KVM Switch or servers via standard DVI connectors.
- Integrated KVM console with a 19" LCD monitor in a single rail housing
- Superior video quality –up to 1280 x 1024 @60 Hz
- Support Hot-pluggable
- Support computers with USB and PS/2 keyboard and mouse
- Standard 99-key keyboard.
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
- Multiplatform support – Windows, Linux, Mac, and Sun.
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Standard rack mount kit and KVM cable included.

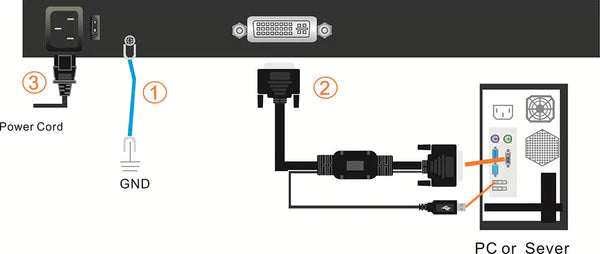

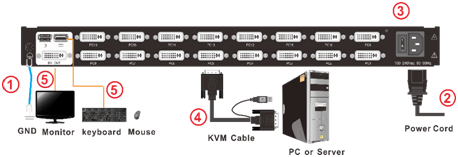

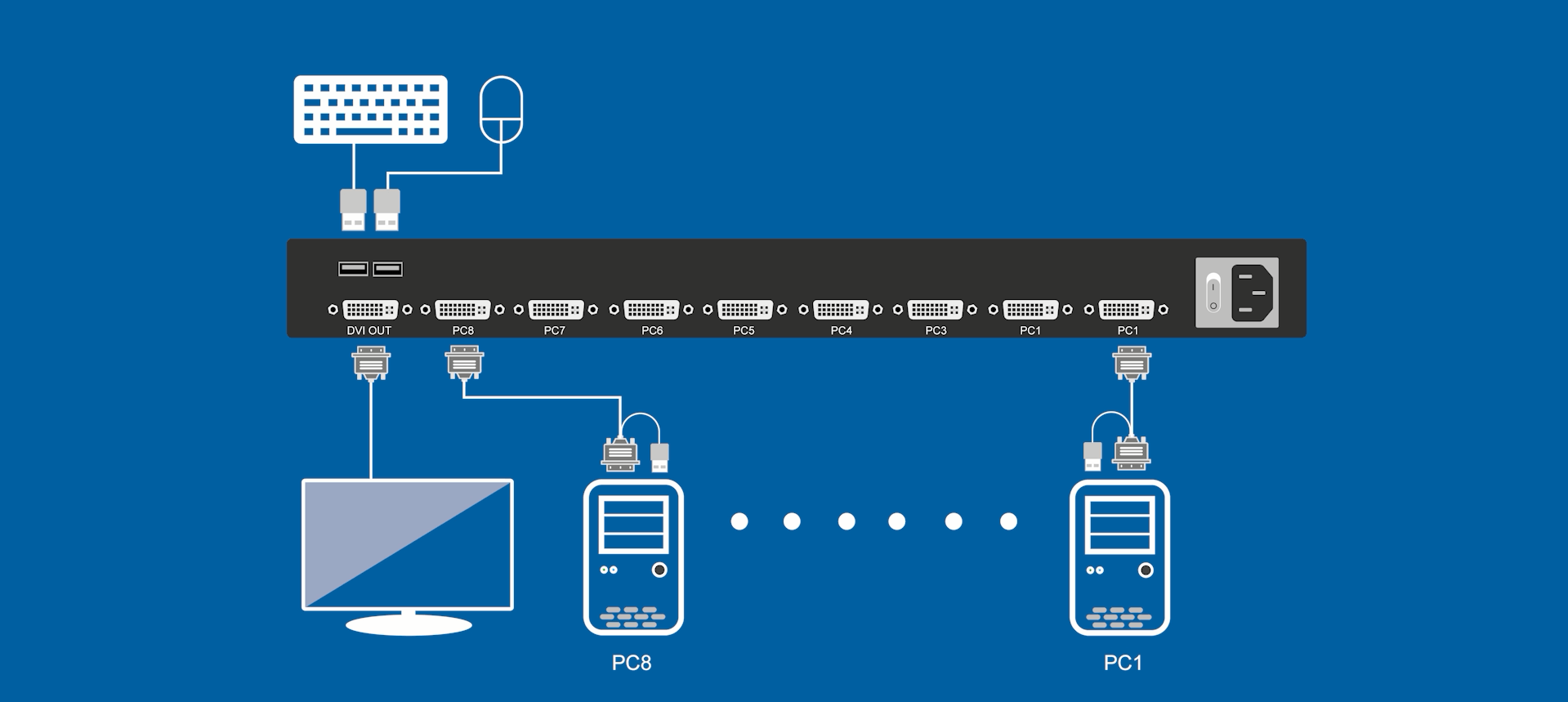

Connection Diagram
Product Specifications:
| Model | TR0119D / TR0819D / TR1619D | |
| Computer Connections | Direct | 1/8/16 |
| Max | 1/8/16 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD Type | SXGA TFT |
| View area | 19 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.2928(H) × 0.2928(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| DVI Signal | DVI-D | |
| Port Selection | pushbuttons, hotkeys, OSD | |
| Input power | 100V-240Vac, 50-60Hz, <1.5A | |
| Power consumption | 17W | |
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 12.5 kg | |
| Product dimension (W × D × H) | 448mm×505mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V—-72V DC | |
| Optional power input | 20-30VDC | |
