Description
Product ID: TR0118D / TR0818D / TR1618D
Description:

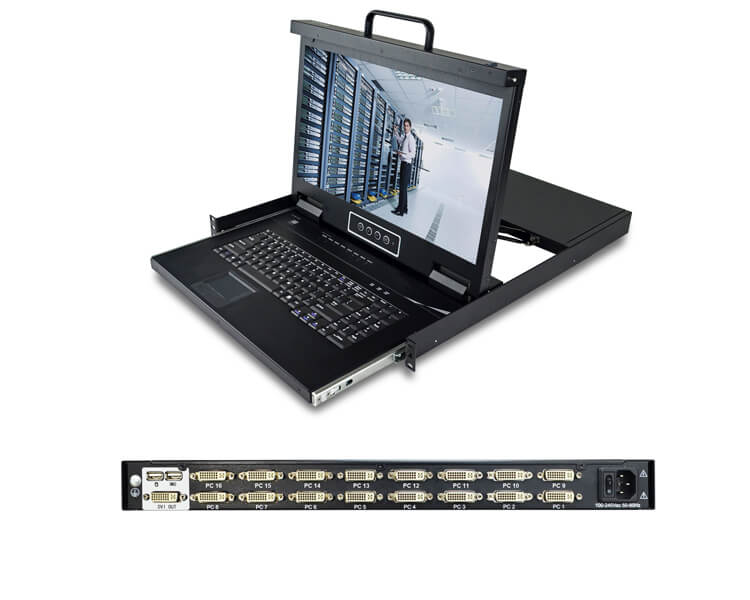

This 18.5” Rackmount LCD KVM switch provides users a complete all in one solution for all your server management in a compact 1U of rack space you can fit into cabinets with ease.
A premier 18.5” widescreen, touchpad and keyboard slide independently of each other via innovative double railing engineering making this console a clutter-free solution to a messy workstation.
You can connect to KVM switches or servers seamlessly with a standard DVI connector while also supporting PS/2 and other USB connections in crystal clear 1920x1080 screen resolution.
Experience the convenience of 18.5" Rackmount LCD KVM Console - 1U, DVI and order yours online today!
Product Features:
- Monitor, keyboard, and mouse in a 1U compact design.
- Integrated rack mount drawer with 18.5” TFT LCD monitor, keyboard/touchpad.
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse.
- Connect to KVM Switch or servers.
- Superior video quality –up to 1920 x 1080 @60 Hz
- Support Hot-pluggable
- Standard 99-key keyboard
- Multiplatform support – Windows, Linux, Mac, and Sun
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Standard rack mount kit and KVM cable included.
Connection Diagram:
Product Specifications:
| Model | TR0118D/TR0818D/TR1618D | |
| Computer Connections | 1/8/16 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 18.47” | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.213(H) × 0.213(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad | Eliminates the need for an external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
| Input power | 100V – 240Vac, 50 ~ 60Hz, <1.5A | |
| DVI Signal | DVI-D | |
| Power consumption | 28W | |
| Operating temperature | 0 – 50 ℃ | |
| Store temperature | -20 – 60 ℃ | |
| Humidity | 0 – 80% RH, non-condensing | |
| Net weight | 11 kg | |
| Product dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
