Description
Product ID: TR0117W
Description:

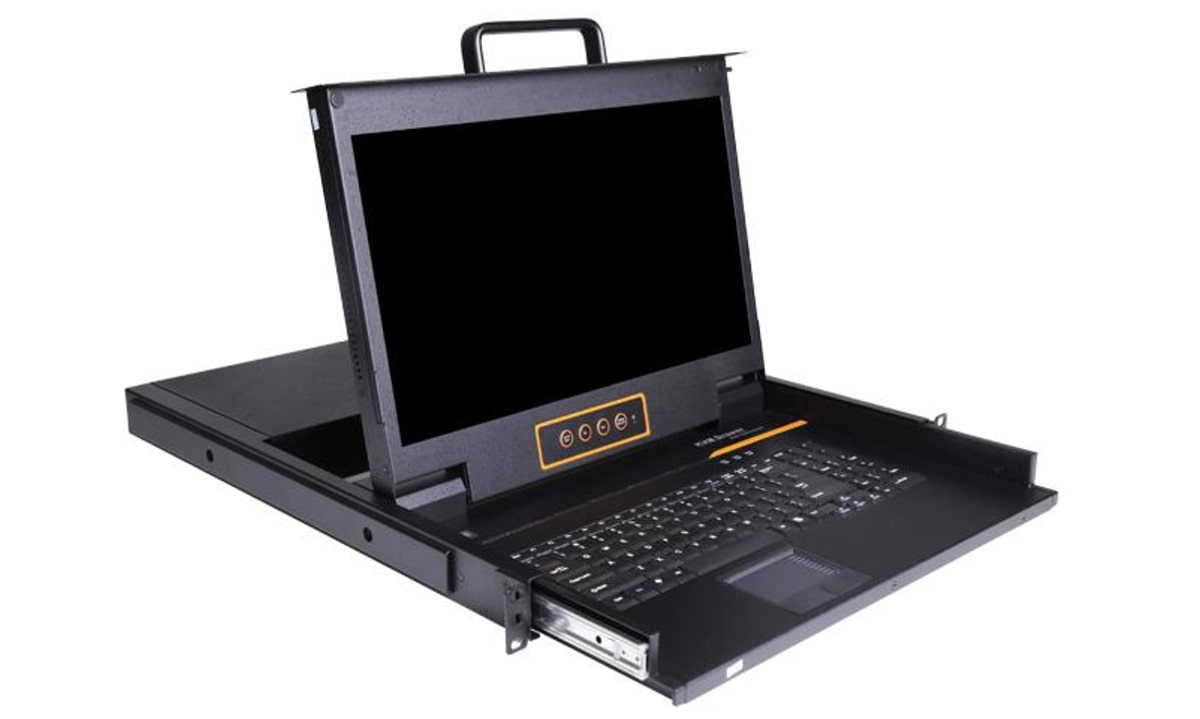

Free up your cluttered workspace with our conveniently compact 1U 17.3” HD Rack Mount LCD Console and save time, money, and space you didn’t think imaginable.
This rackmount LCD console provides streamlined control over your PC or several servers with an all-in-one device that makes your workload much more manageable. With a premium display of 1920x1080 high-resolution image quality, you can keep track of your servers in a clear-cut picture.
The LCD monitor, keyboard, and touchpad modules all slide independently from each other, so when this rackmount console is not in use, you can easily slide it into 1U of rack space and keep it stored safely with the durable lock latch.
You can fit this LCD console mount into 1U of rack space to give you more room to work and less time scrambling around. A wide 17.3” screen also gives you more viewing room and multitasking area for ultimate productivity.
Keep track of your PC or several servers with our 17.3“ HD rackmount LCD KVM console, and order yours online today!
Product Diagram
Product Features
-
The keyboard, mouse and 17.3” LCD monitor is integrated in a 1U compact design.
-

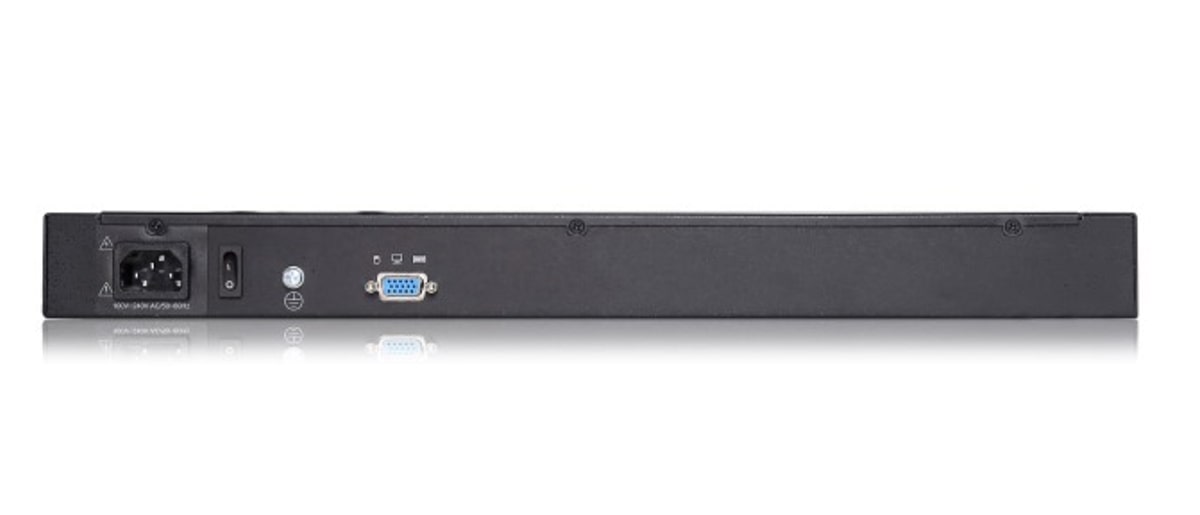

Standard VGA connector-Connect to a server or KVM switch via a standard VGA connector.
-
Compact steel construction and high-quality hand-protection sliding rails.
-
Supports both USB and PS/2 connected servers or KVMs.
Keyboard & Touchpad
-
Standard US keyboard
-
Full size 99 keys keyboard with integrated number pad.
-
High-Performance Touchpad.
-
Integrated touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse.
High Resolution
-
17.3” HD TFT LCD display supports HD resolution up to 1920 x 1080.
Wide Compatibility
-
Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
-
Supports server from Lenovo, HUA WEI, HP, IBM, Cisco, Dell, etc.
Specifications
| Model | TR0117W | |
| Computer Connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LED monitor | LED model | FHD TFT |
| View area | 17.3” | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 16.7 M | |
| Brightness | 400cd/m² ( T y p ) | |
| Contrast ratio | 600 : 1 ( T y p ) | |
| Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with trackball | Eliminates the need for an external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small number pad) |
|
| Input power | 100V-240Vac , 50~60Hz , <1.5A | |
| Power consumption | 13W | |
| Operating temperature | 0—40 ℃ | |
| Storage temperature | -20— 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 11.7 kg | |
| Product dimension (W × D × H) | 448mm×525.6mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V— -72VDC | |
