19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz
19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz
19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz
19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz
19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz
Roll over image to zoom in Click on image to zoom
19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz

19" / 17'' 1 Port Rackmount Single Rail KVM Console - 1U, VGA & DVI-D , Up To 1280X1024@60Hz

techraki
Style: 19" I Port Rackmount Single Rail KVM Console - DVI & VGA
Price:
$680.00

Description

Product ID:  TR0139S / TR0137S

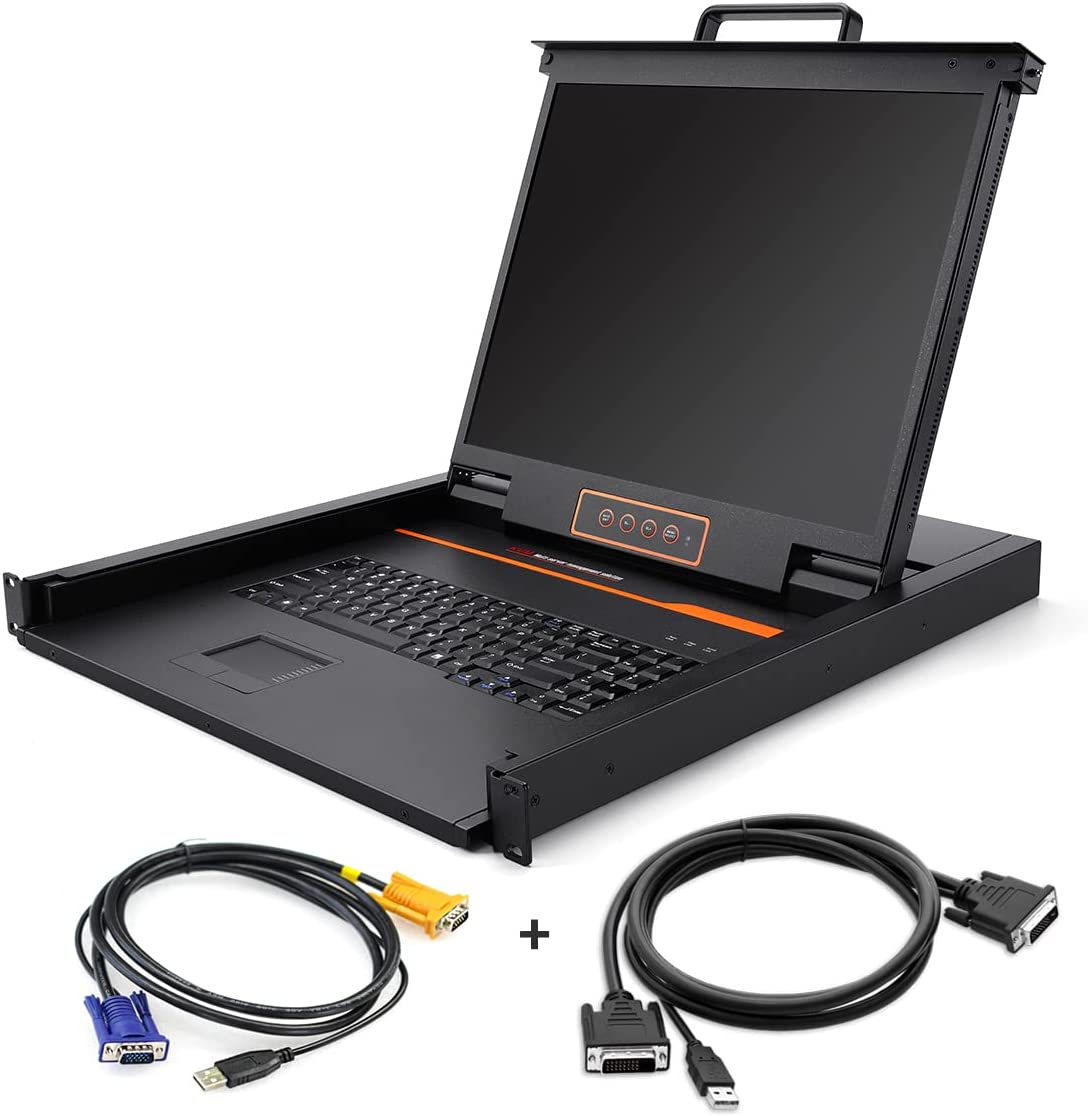

The Rack Mount KVM Console is a convenient and space-saving solution for managing your servers in a 19" or 17'' rackmount environment. This all-in-one unit combines a 19" or 17'' rackmount monitor and keyboard with a single port VGA & DVI-D input.

With a compact 1U form factor, this server rack mount monitor provides a clear and crisp display at a resolution of 1280X1024@60Hz. It includes 1 VGA and 1 DVI KVM cable, allowing you to connect and control multiple servers efficiently.

The rack mount console is compatible with all major operating systems and KVM Switches with a DVI or VGA monitor port and USB keyboard and mouse ports.

The package also includes 1 power cord and 2 brackets for easy installation and secure mounting within your server rack. This rack-mount KVM console offers a streamlined, organized solution for managing your server infrastructure.

Experience the convenience of 19" or 17'' Rackmount Single Rail KVM Console - 1U, DVI & VGA and order yours online today!







Product Features:

  • The rack-mount KVM console integrates a 17-inch or 19-inch LCD monitor, keyboard, and touchpad in a 1U rack space; It can control one computer from a monitor, keyboard, and mouse.

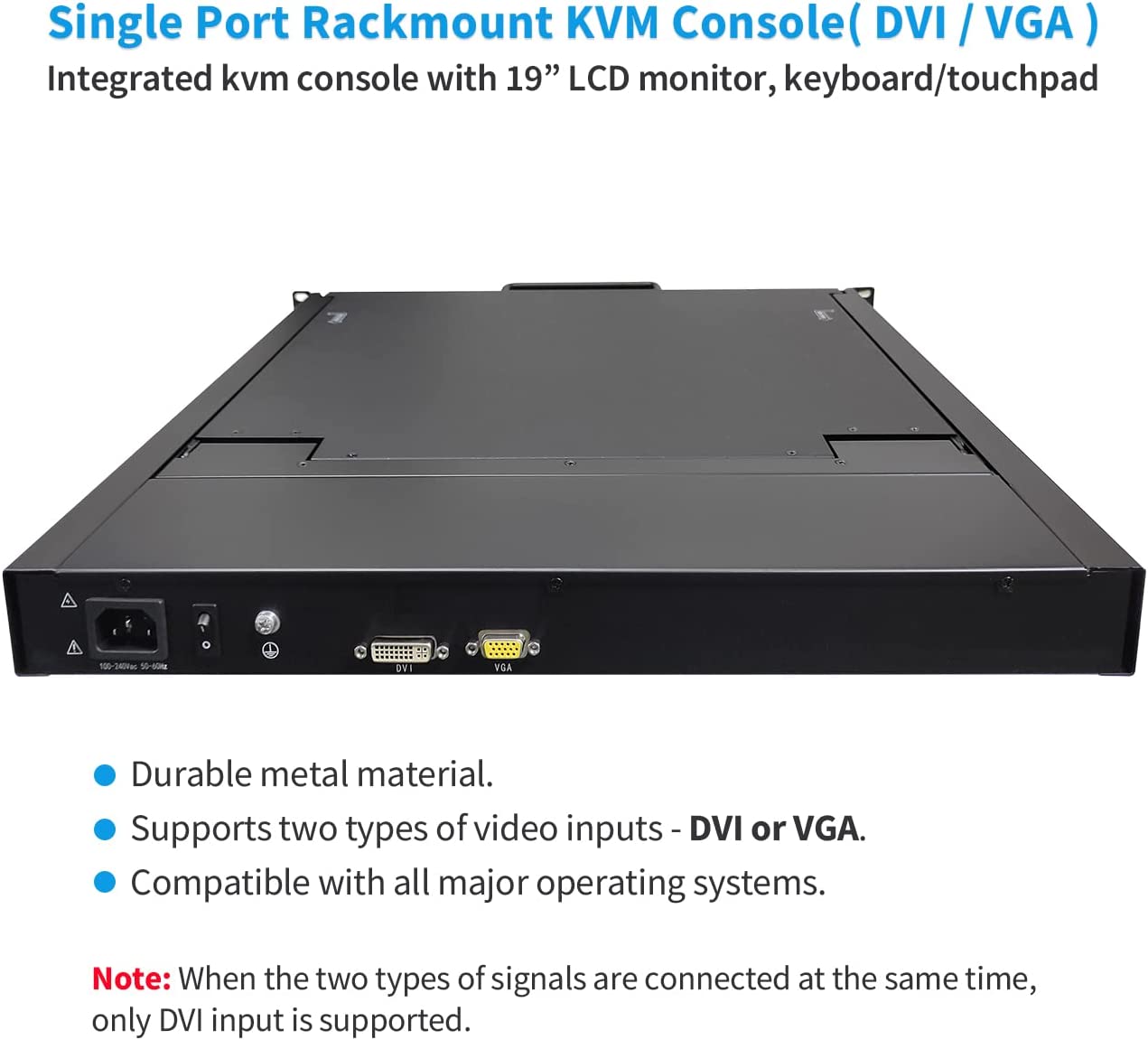

  • Includes both VGA/USB Cable and DVI/USB Cable. Allowing users to connect the console and the computer via any of the two types of video sources.
  • Full size 99 keys keyboard with integrated number pad
  • Support computers with USB and PS/2 keyboard and mouse.
  • Support 1280x1024@60Hz resolution，16.7M display colors, 1000:1 (T y p) contrast ratio, 250cd/m² (T y p) brightness.
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux.
  •  Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE & FCC, RoHS2.0 Compliant. We provide a 2-year warranty for this KVM console; please feel free to contact us if you have any questions.
Note: Products with electrical plugs are designed for use in the US or Britain. Outlets and voltage differ internationally, and this product may require an adapter or converter for use in your destination. Please consult customer service before purchasing.
Package Contents:
1x  LCD KVM Console ( TR0139 / TR0137 )
1x Power Cord (Regional)
2x Mounting Rails
1x USB+VGA KVM Cable (1.8m/6ft)
1x USB+DVI KVM Cable (1.8m/6ft)
1x Quick Start Guide

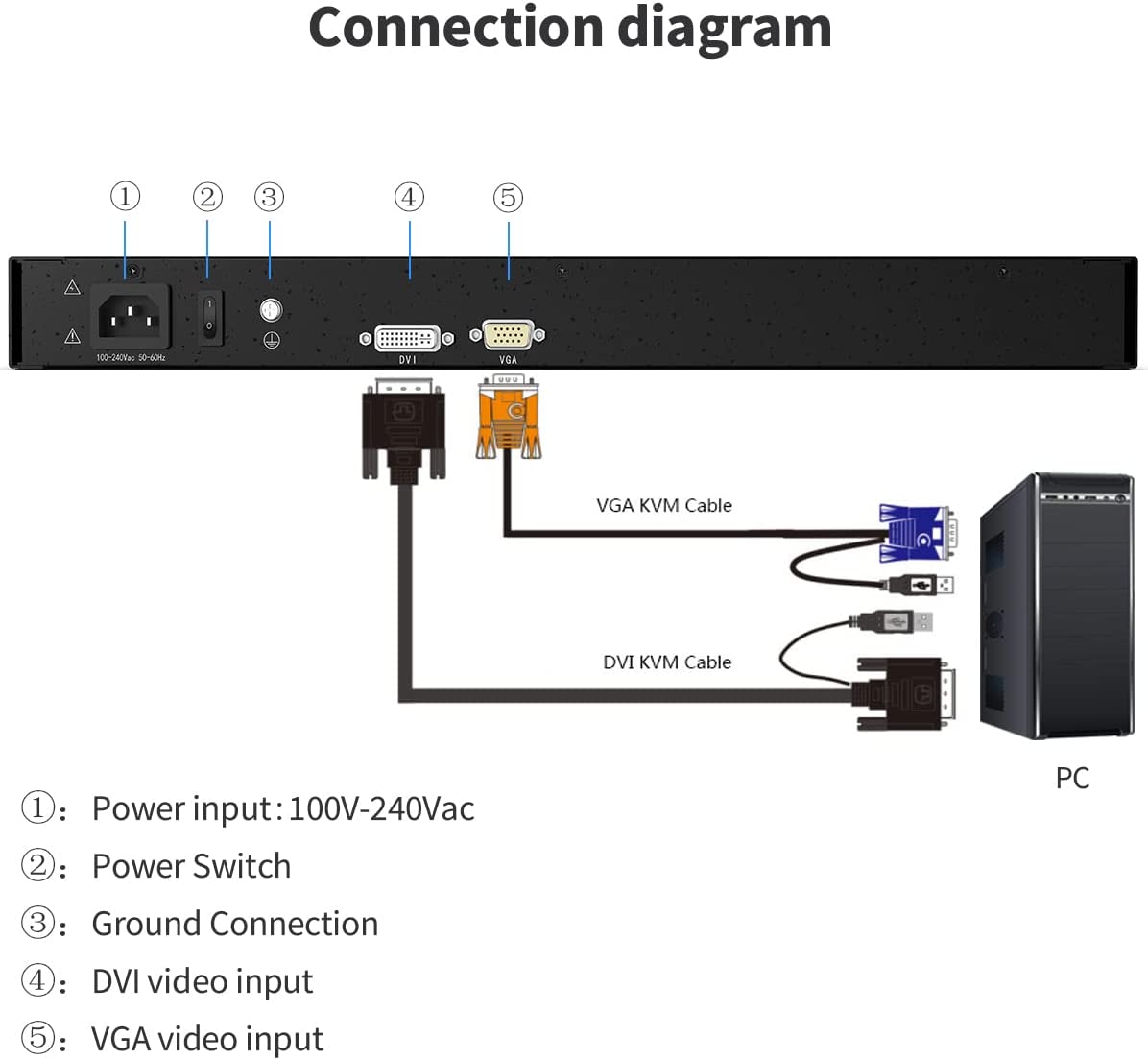

Connection Diagram:
Product Specifications:

Model TR0139S
Computer Connections Direct 1
Max 1
Port emulation

Keyboard,mouse

 PS/2, USB
LCD monitor LCD model SXGA TFT
View area 19″
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.2928(H) × 0.2928(W)
Mouse X/Y resolution >1000 points / inch, (40 points/mm)
Scroll wheel Support scroll wheel function
Keyboard

99 keys
(82 keys main keyboard +17 independent

small numeric keyboard)
Video Inputs DVI, VGA
Power input rating 100V-240Vac, 50-60Hz, <1.5A
Power consumption 17W
Operating temperature 0 ─ 50 ℃
Store temperature -20 ─ 60 ℃
Humidity 0~80% RH, non-condensing
N.W. 12 kg
Mounting distance

495~510mm (L=62mm)
695~710mm (L=262mm)
Mounting rails can be customized for

other mounting distance.
Product dimension (W × D × H) 448mm×505mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm



Model TR0137S
Computer Connections Direct 1
Max 1
Port emulation

Keyboard,mouse

 PS/2, USB
LCD monitor LCD model SXGA TFT
View area 17″
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.264(H) × 0.264(W)
Mouse X/Y resolution >1000 points / inch,(40 points/mm)
Scroll wheel Support scroll wheel function
Keyboard

99 keys
(82 keys main keyboard +17 independent

small numeric keyboard)
Video Inputs DVI, VGA
Power input rating 100V-240Vac , 50-60Hz , <1.5A
Power consumption 13W
Operating temperature 0 ~ 50 ℃
Store temperature -20 ~ 60 ℃
Humidity 0~80% RH, non-condensing
N.W. 11.7 kg
Mounting distance

460~790mm ( L=420mm)
Mounting rails can be customized for

other mounting distance.
Product dimension (W × D × H) 448mm×481mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V— -72Vdc
Optional power input 20-30Vdc
