Description
Product ID: TR0119S/TR0127S
Description:
A 19” /17'' screen displays a 1280x1024 high-resolution picture, full 99-key keyboard, and touchpad in a 1U compact housing, so you never miss a beat with every server you choose to connect with the console.
The streamlined design comes detailed with a premier quality monitor, a built-in keyboard, and an intelligent mouse pad that allows you to control multiple servers with very little workspace needed.
You can easily fit this console into 1U of rack space to keep your workstation completely clean and organized with a compact design that saves you the headache of limited space.
The VGA LCD KVM console features a single VGA port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The kvm switch with LCD monitor serves as the monitoring and managing console for standard KVM Switches.
Experience the convenience of central control with our 19" rackmount LCD KVM console and order yours online today!

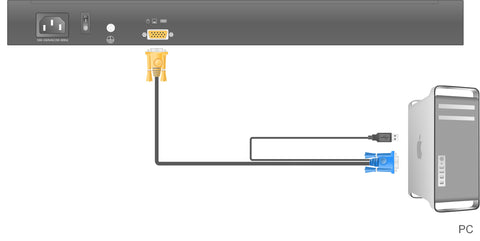

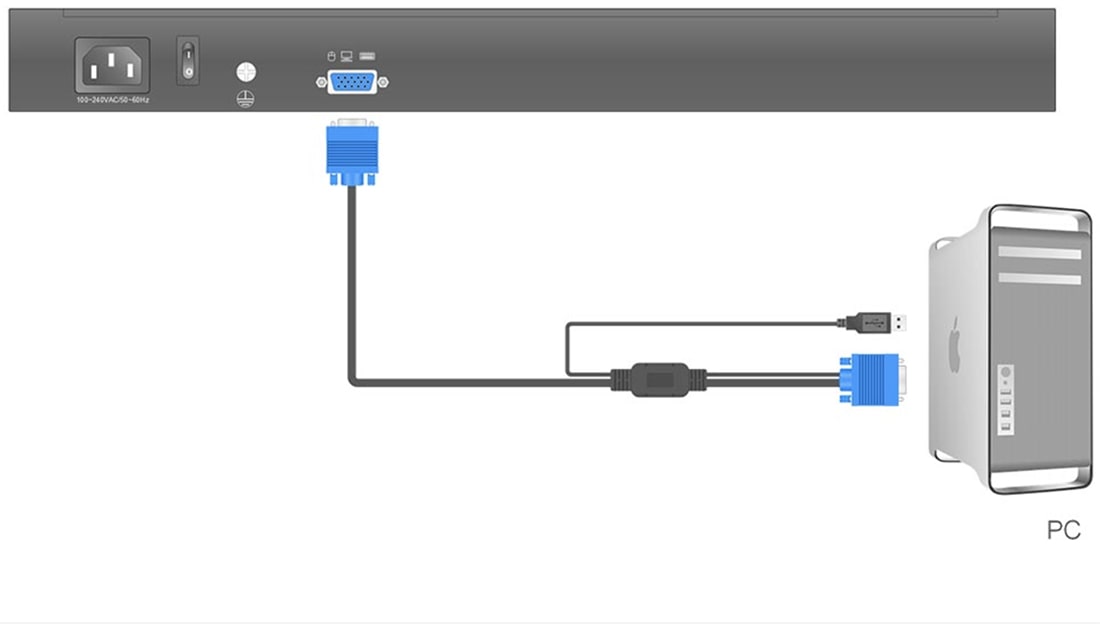

Product Diagram
Hardware Feature
- The keyboard, mouse and 19” /17'' LCD monitor are integrated into a 1U compact design.

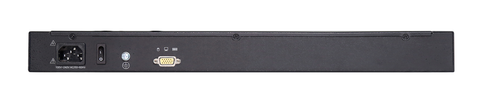

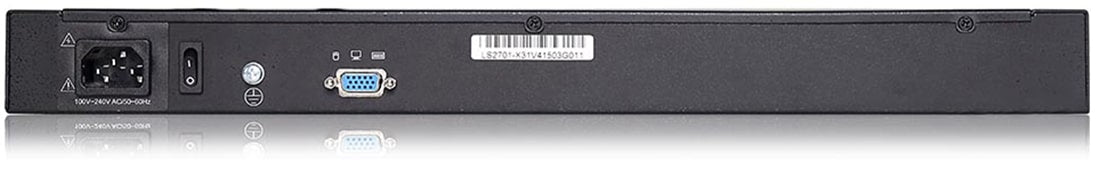

- Standard VGA connector-Connect to a server or KVM switch via a standard VGA connector.
- Quick release tabs-Insert or remove the device with ease.
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
- Support computers with USB and PS/2 port.
- Internal power supply.
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad.
High-Performance Touchpad
- Integrated touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse.
High Resolution
- 19” /17'' TFT LCD monitor with highlight, high definition, and high resolution
- Resolution is up to 1280 x 1024 @60Hz
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco, and Dell, etc.
Specifications
| Model | R0119S | |
| Computer Connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 19" | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.2928(H) × 0.2928(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Input power | 100V-240Vac, 50-60Hz, <1.5A | |
| Power consumption | 17W | |
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 12kg | |
| Product dimension (W × D × H) | 448mm × 505mm× 42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Model | TR0127S | |
| Computer Connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000: 1 (T y p) | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard + 17 independent small numeric keyboard) |
|
| Input power | 100V-240Vac, 50-60Hz, <1.5A | |
| Power consumption | 13W | |
| Operating temperature | 0— 50 ℃ | |
| Store temperature | -20 — 60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net weight | 11.7 kg | |
| Product dimension (W × D × H) | 448mm×481mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
