Description
Product ID: TR0858HT / TR1658HT / TR2458HT / TR3258HT
Description:
The 18.5-inch CAT5 LCD KVM over IP Switch integrates a 18.5” LCD monitor, keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.
The KVM Cat5 LCD KVM over IP Switch has a built-in 18.5” LCD monitor that supports resolution up to 1366 x 768@60Hz, up to 1920 x 1080@60Hz on the remote screen. The IP Switch provides VGA, DVI, HDMI, and DP adapter cables to link to computers/servers, support any combination of computers with different video inputs.
The Cat5 LCD KVM over IP Switch allows access and control up to 8 / 16 / 24 / 32 computers from a single console (keyboard, mouse, and monitor). Which features IP-based connectivity that allows local and remote operators to monitor and access the computers concurrently. It is the ideal solution for controlling up to 8 / 16 / 24 / 32 computers/servers locally, or remotely via LAN, WAN, or Internet.
The Cat5 LCD KVM over IP Switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 8 / 16 / 24 / 32 ports using an on-screen display (OSD), hotkey commands, or a remote toolbar. A local user and up to two remote users can each log on and access different ports simultaneously.
The remote control KVM allows 1 local and 2 remote operators to monitor and access the computers independently and simultaneously. With TCP/IP communications protocol, you can access to the connected servers from any computer on the LAN, WAN or Internet.
To help you control and manage an entire data center, the IP Switch comes with a Centralized Management Software – KCMS, allowing administrators to remotely manage and control all the devices on a network. The KCMS records all operations on servers accessed through the switch.
Experience the convenience of 18.5'' Rackmount LCD KVM over IP Switch - 1U, RJ-45 / CAT5, 1-Local / 2-Remote Access and order yours online today!
Product Features:
Hardware feature
- One 8/16/24/32 port CAT5 KVM switch is integrated into 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
- Standard CAT5 connector-Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
- Quick release tabs-Insert or remove the device with ease
- Dual power supply
- Two bus for IP kvm switch remote access
- External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Controls up to 8 / 16 / 24 / 32 computers from a single console
- Support 1 local user and 2 remote user, port share mode allows local and remote users to gain access to a server simultaneously
- Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
- Support servers with VGA/DVI/HDMI/DP port
- Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
- Supports a graphical interface for intuitive and convenient human-computer interaction- local resolution is up to 1366 x 768 60Hz
- Supports mouse synchronization mode-automatically synchronizes the local and remote mouse movements
- Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
- Keyboard and mouse emulation to ensure the normal booting
- Auto scan feature for monitoring user-selected computer
- Hot pluggable--add or remove computers without having to power down the switch
- Adaptive 10 / 100 / 1000 Mbps network
- WEB browser-based remote management
- Resolution for remote console is up to 1920x1080 60Hz
- BIOS-level access
- Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
- Full screen or scalable video display
- Remote users and local users can control the same server/computer synchronously
- Support AES / DES / 3DES encryption
- Support audit function-allows the administrator to audit the device through the system log and operation log
- Exit Macros support
- Configurable user and group permissions for server access and control
- Support firmware upgrade
- Support low-bandwidth real-time transmission, the bandwidth is less than 2M

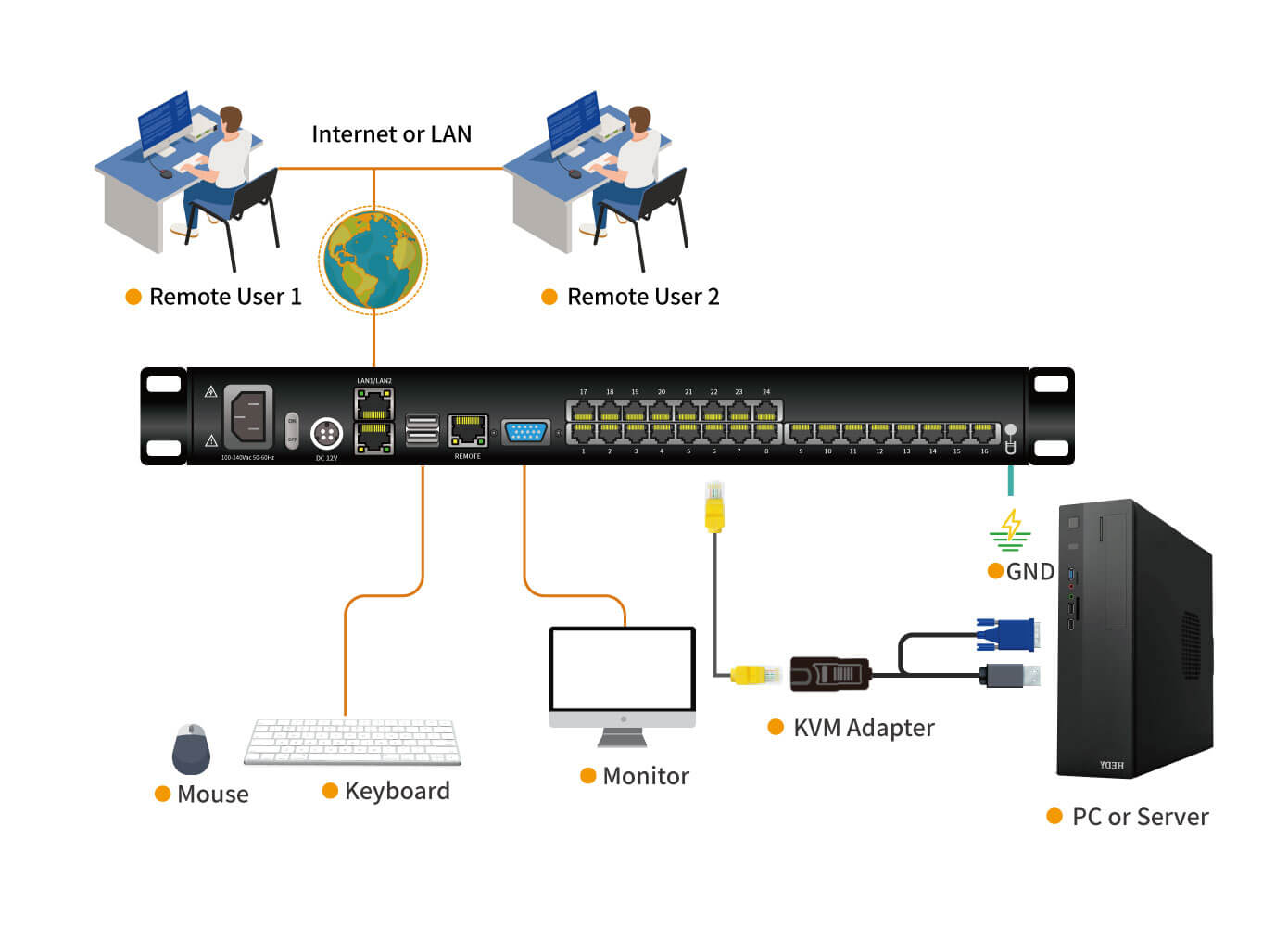

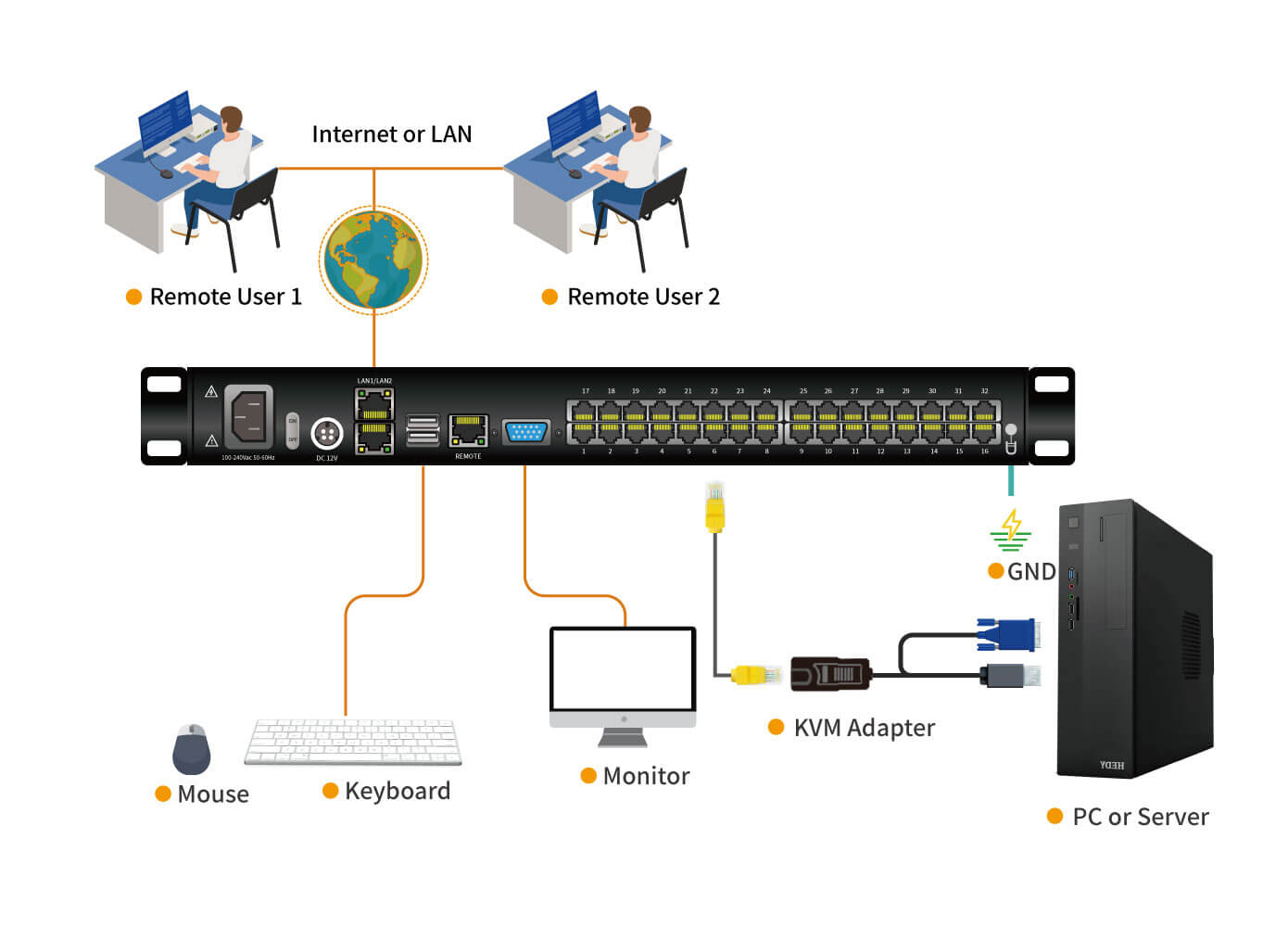

Connection Diagram:
Product Specifications:
| Model | TR0858HT / TR1658HT | |
| Computer Connections | Direct | 8 / 16 |
| Max | 8 / 16 | |
| Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
| LCD Monitor | Model | WXGA TFT |
| View Area | 18.51" | |
| Optimum Resolution | 1366x768@60Hz | |
| Color | 16.7 M (Typ) | |
| Brightness | 250 cd/m² (Typ) | |
| Contrast Ratio | 1000: 1 | |
| Pixel Pitch(mm) | 0.300(H) × 0.300(W) | |
| Mouse | X/Y Resolution | >1000 points / inch, (40 points/mm) |
| Scroll Wheel | Supports Scroll Wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
| Remote | Remote Control | KVM Control (ActiveX) |
| Management | Web | |
| Security | DES Encrypted | |
| Resolution | 1920×1080@60Hz | |
| Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
| Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
|
| Power Consumption | 29W / 31W | |
| Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20 —60 ℃ | |
| Humidity | 0~80% RH, non-condensing- | |
| Net Weight | 11.7kg | |
| Product Dimension (W × D × H) | 448mm × 560mm × 42.5mm | |
| Package Dimension (W × D × H) | 765mm × 615mm × 185mm | |
| Model | TR2458HT / TR3258HT | |
| Computer Connections | Direct | 24 / 32 |
| Max | 24 / 32 | |
| Port Selection | Keyboard, Mouse | Button, UI, Web, Hotkey |
| LCD Monitor | Model | WXGA TFT |
| View Area | 18.51" | |
| Optimum Resolution | 1366x768@60Hz | |
| Color | 16.7 M (Typ) | |
| Brightness | 250 cd/m² (Typ) | |
| Contrast Ratio | 1000: 1 | |
| Pixel Pitch(mm) | 0.300(H) × 0.300(W) | |
| Mouse | X/Y Resolution | >1000 points / inch, (40 points/mm) |
| Scroll Wheel | Supports Scroll Wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
| Remote | Remote Control | KVM Control (ActiveX) |
| Management | Web | |
| Security | DES Encrypted | |
| Resolution | 1920×1080@60Hz | |
| Power Input | 100V- 240Vac, 50-60Hz, <1.5A | |
| Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
|
| Power Consumption | 33W / 35W | |
| Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20 —60 ℃ | |
| Humidity | 0~80% RH, non-condensing | |
| Net Weight | 11.9kg | |
| Product Dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package Dimension (W × D × H) | 765mm × 615mm × 185mm | |
