Description
Product ID: TR0817W
Description:

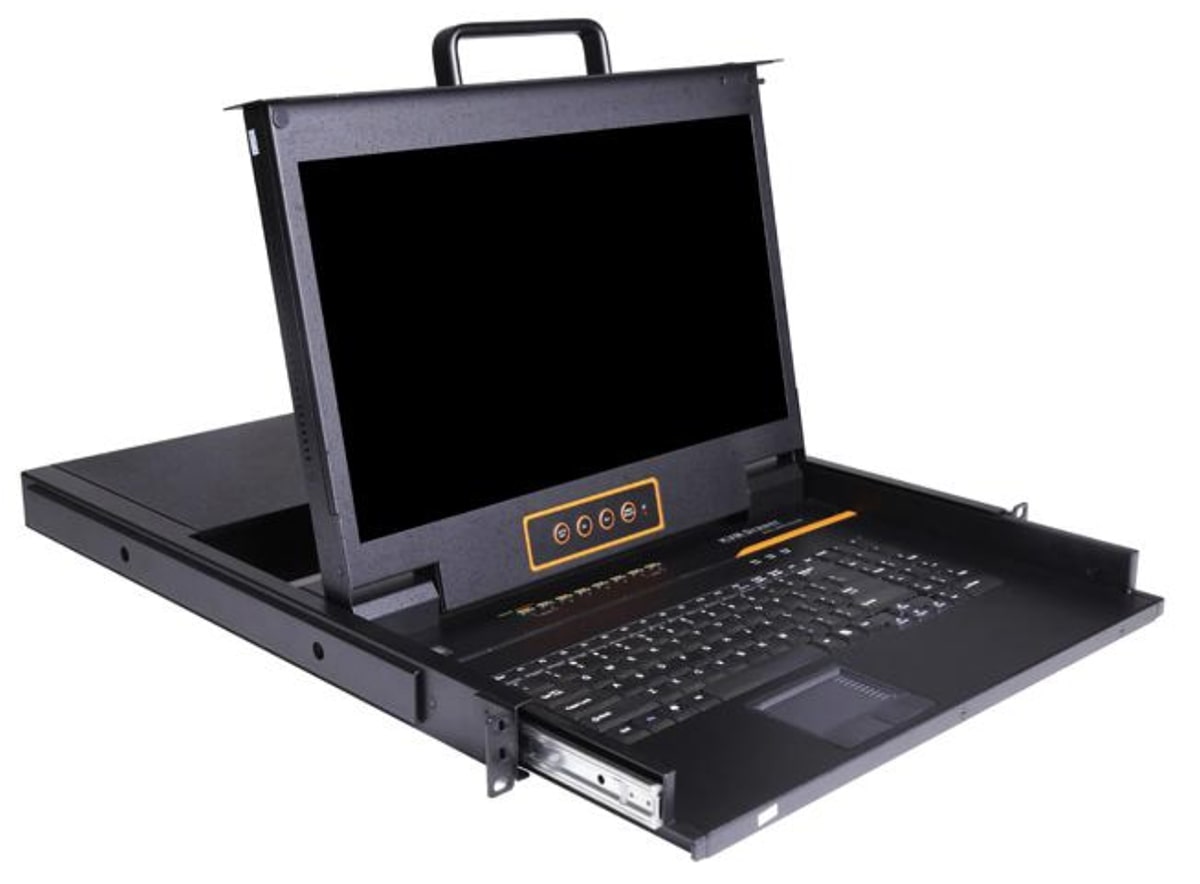

Our 17.3" 1080P HD LCD KVM switch integrates a touchpad, keyboard, and monitor panel with a KVM switch unit you can use for task monitoring of up to 8 different computers.
The convenience of the KVM switch console allows users to experience centralized control of multiple PCs from a single workstation. By cascading additional switches, you can free up your cluttered desk or server room and streamline PC management of up to 256 total computers.
To make things even better, the compact design of this unit fits easily into 1U of rack space that you can store in any rack cabinet for easy access at any time of the day.
Set up is simple and easy. Just plug in a standard VGA connector to your server or PC, power the console on, and that’s it! No need for additional software applications or tricky installation procedures, so you don’t stress out over simple complications.
Integrate up to 8 computers with the 17.3" 1080P HD LCD KVM switch and order yours online today!

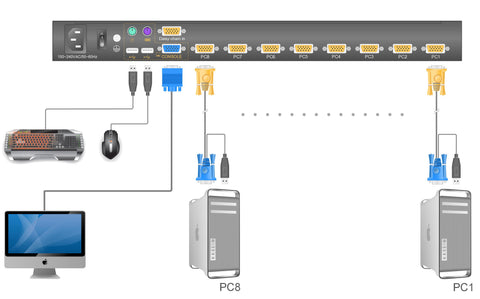

Connection Diagram
Hardware Features
-
8 port KVM switch is integrated with 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console.
-

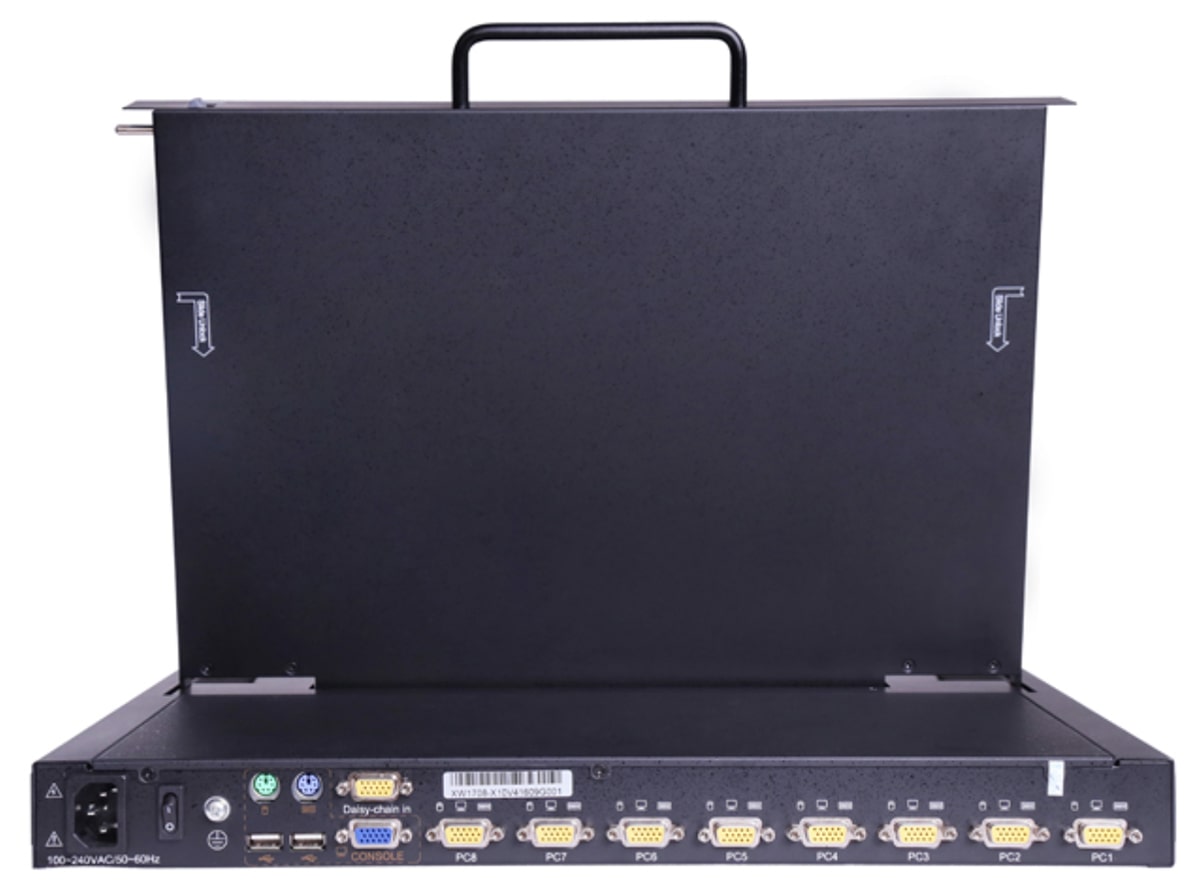

Standard VGA connector-Connect to a server or computer via a standard VGA connector
-
Quick release tabs-Insert or remove the device with ease
High-Performance Touchpad
- Integrated touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse
Keyboard
-
Standard US keyboard
-
Full size 99 keys keyboard with integrated number pad
Management Way
-
Convenient computer switching via front panel LEDs, OSD menu, and mouse
-
Auto scan feature for monitoring user-selected computers
-
Broadcast mode--operations simultaneously performed on all selected computers
-
Hot-pluggable --add or remove computers without having to power down the switch
-
Quickly choose your computer by naming the server or inputting the SN number of the server
-
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
-
17.3” TFT LCD monitor with the highlight, high definition, and high resolution
-
Resolution is up to 1920 x 1080 @60Hz
Security
-
Two-level password security--only authorized users to view and control computers; up to four users and an administrator with a separate profile for each
Cascade Features
-
Directly access and control up to 8 servers or computers with 17.3" widescreen 8 port LCD Console
-
By cascading to another 31 additional KVM switches, it can control up to 256 servers.
Wide Compatibility
-
Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
-
Supports servers from Lenovo, HUA WEI, HP, IBM, Cisco, Dell, etc.
Specifications
|
Computer connections |
Direct |
8 |
|
Max |
256 |
|
|
Port emulation |
Keyboard, mouse |
PS/2, USB |
|
LED monitor (widescreen) |
LED model |
FHD TFT |
|
View area |
17.3” |
|
|
Optimum resolution |
1920×1080@60Hz |
|
|
Display color |
16.7 M |
|
|
Brightness |
400cd/m²（ T y p ） |
|
|
Contrast ratio |
600 : 1 （ T y p ） |
|
|
Pixel pitch(mm) |
0.1989(H) × 0.1989(W) |
|
|
Mouse |
X/Y resolution |
>1000 points /inch,( 40 points/mm ) |
|
Trackball |
Eliminates the need for a separate, external mouse |
|
|
Keyboard |
99 keys |
|
|
Port selection |
Front panel pushbuttons, hotkeys, OSD menu |
|
|
Input power |
100V~ 240Vac , 50~60Hz , <1.5A |
|
|
Power consumption |
20.5W |
|
|
Operating temperature |
0—40 ℃ |
|
|
Store temperature |
-20— 60 ℃ |
|
|
Humidity |
0—80% RH, non condensing |
|
|
Net weight |
11.2kg |
|
|
Product dimension (W × D × H) |
448mm×525.6mm×42.5mm |
|
|
Package dimension (W × D × H) |
765mm×615mm×185mm |
|
|
Optional power input |
-36V— -72V DC |
|
