Description
Product ID: TR0817
Description:
With the access of up to 8 different computers, an extra rear port to manage the KVM console, and premium 1280x1024 screen resolution, you’ll have the ability to control numerous screens with an all in one console that offers centralized power.
Innovative movements in the tech industry have given us the ability to combine an 8-port analog KVM switch with an LCD panel to gift you complete control, with more configuring, of up to 256 different computers!

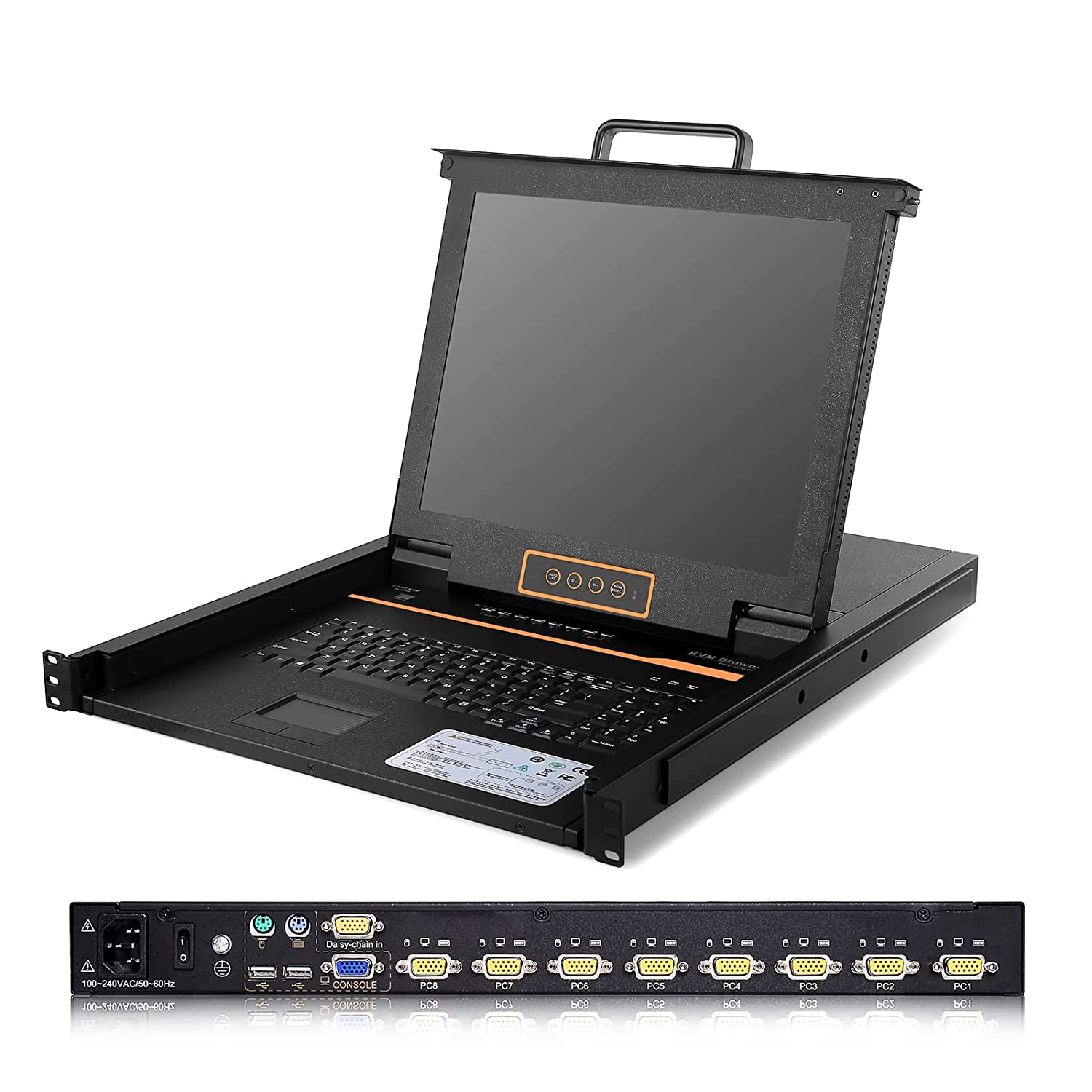

This console comes fully loaded with a high-resolution LCD monitor, a premier durable keyboard, and an easy touch mouse pad that you can control different computers from with the convenient design of a laptop.
If you didn’t think you could have control of 8 fully loaded computers with one monitor then order our 8 port 17'' display LCD KVM console online today and experience it for yourself!
About this item

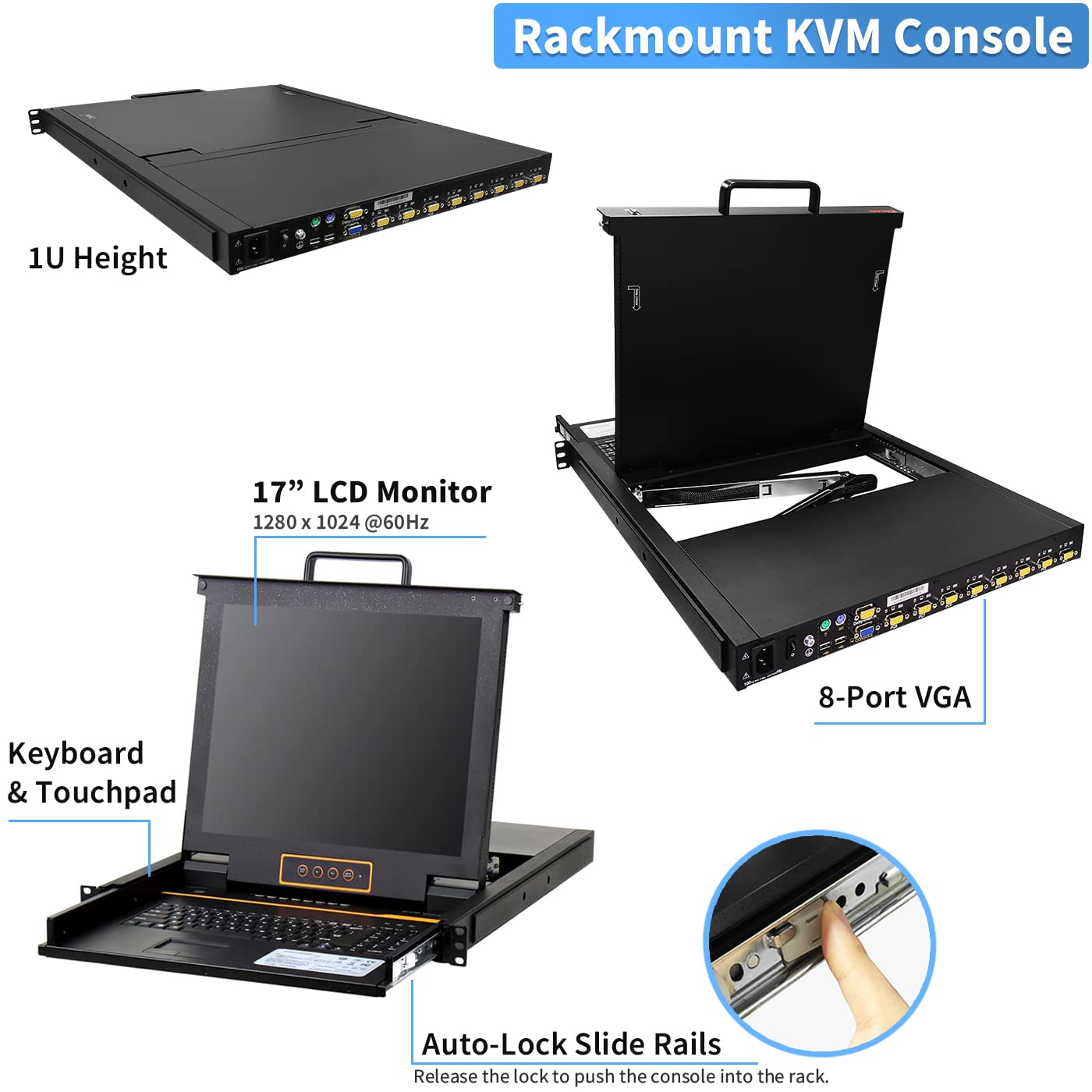

- 【Rackmount VGA KVM Console】 Integrated 17" LCD monitor, keyboard, touchpad and 8-port VGA KVM switch in a single console that occupies only 1U height of rack space. It allows you to control 8 computers with only a single keyboard, mouse and monitor.

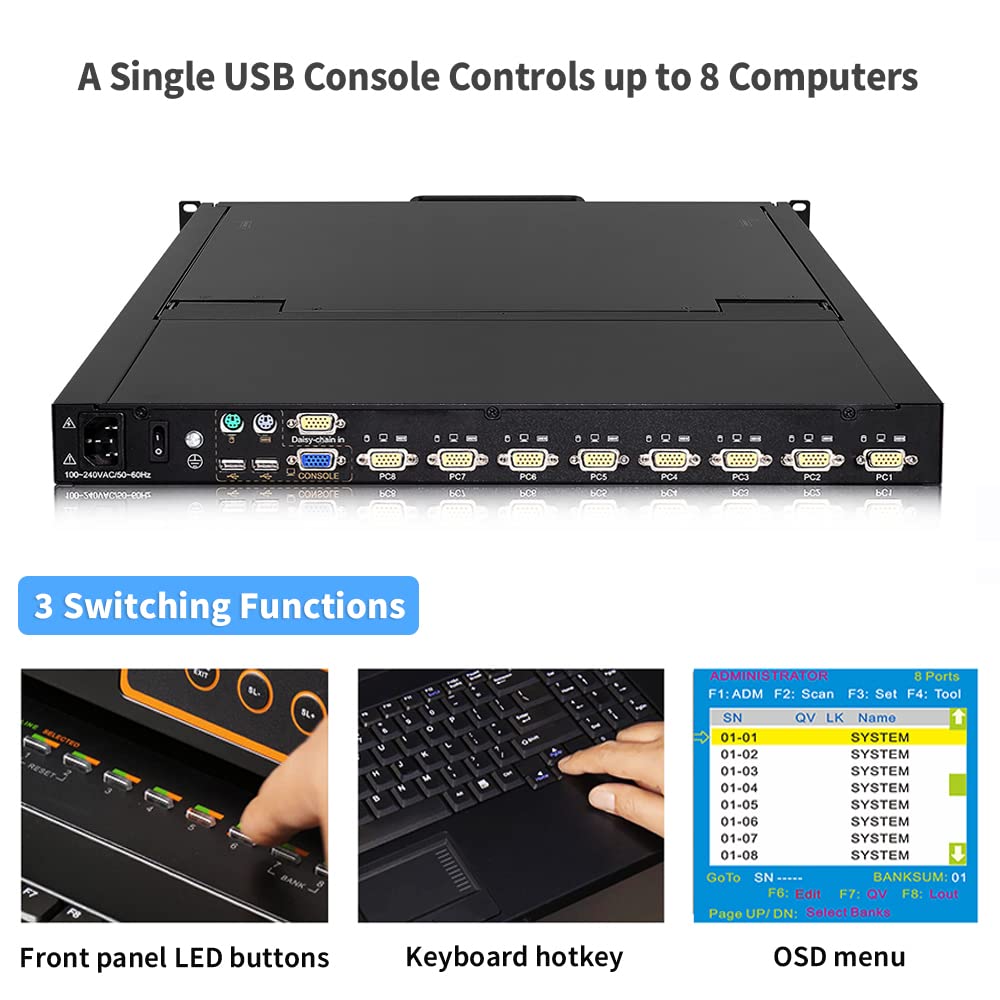

- 【3 Switch Modes】 Easily switches between computers via push buttons with LED indicating the active computer, keyboard hotkeys or on-screen-display (OSD).
- 【1280x1024@60Hz Resolution】16.7M Display Colors, 1000:1 Contrast Ratio, 5 ms response time, 85/85/80/80 (L/R/U/D) Viewing Angle. Support DDC and EDID function.
- 【Dimension and Package】The drawer design is suitable for 1U rack mount in the server room. Dimension:17.6×22.9×1.67 inches [448×581×42.5mm];Mount depth:22" [56cm] to 35.4" [90cm].
- 【Compliance and 2-year warranty】Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE & FCC, RoHS2.0 Compliant.We provide 2-year warranty for this KVM console. Feel free to contact us through Amazon if you have any questions.

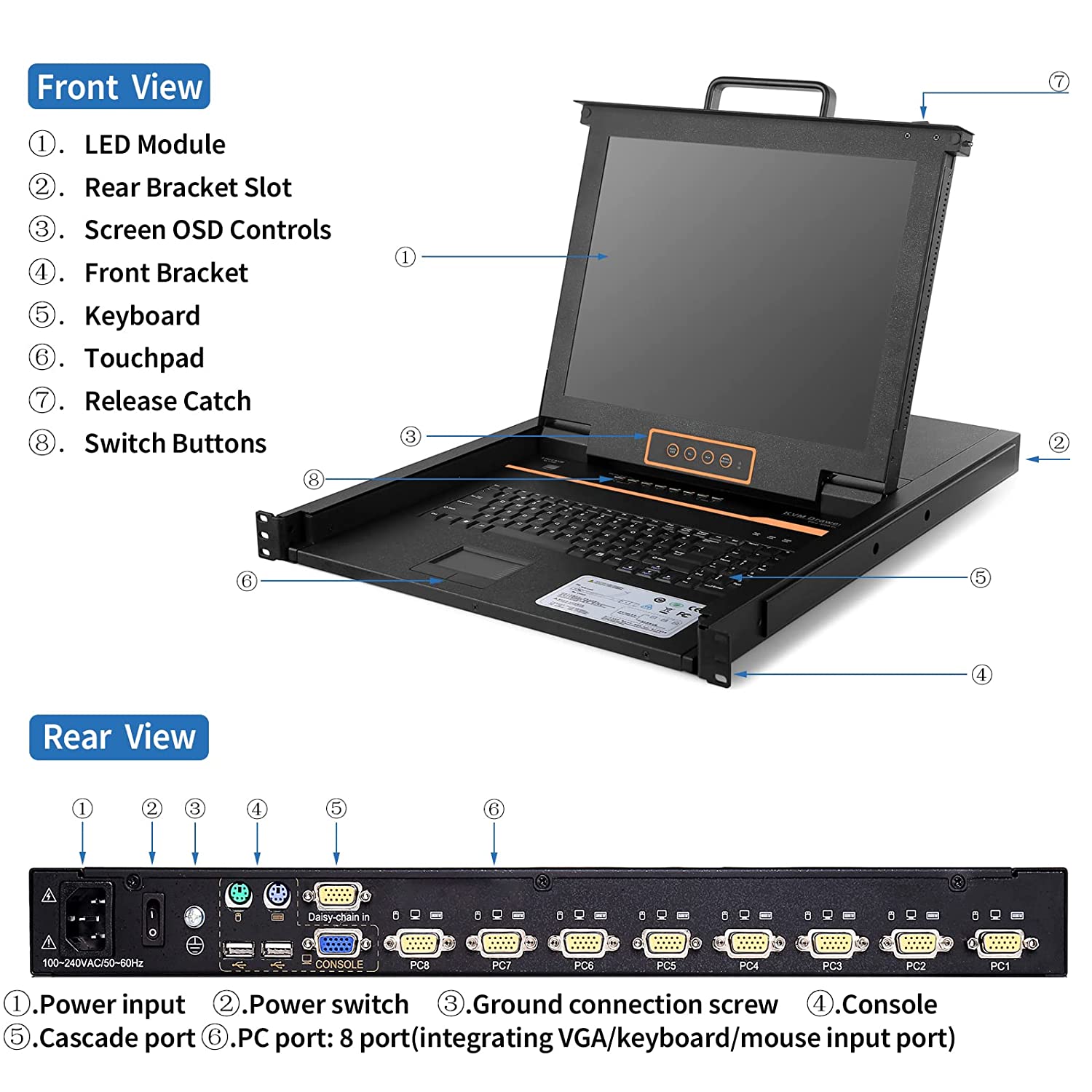

Hardware Feature
- One 8 port KVM switch is integrated into 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
- Standard VGA connector-Connect to a server or computer via a standard VGA connector
- Quick release tabs-Insert or remove the device with ease
High-Performance Touchpad
- Touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse
Keyboard
- Standard US keyboard
- Full size 99 keys keyboard with integrated number pad
Management Way
- Convenient computer switching via front panel LEDs, OSD menu and mouse
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot-pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
- 17” TFT LCD monitor with a highlight, high definition, and high resolution
- Resolution is up to 1280 x 1024 @75Hz
Cascade Feature
- Directly access and control up to 8 servers
- By cascading to another 31 switches, as many as 256 servers can be controlled
Security
- Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco, and Dell, etc

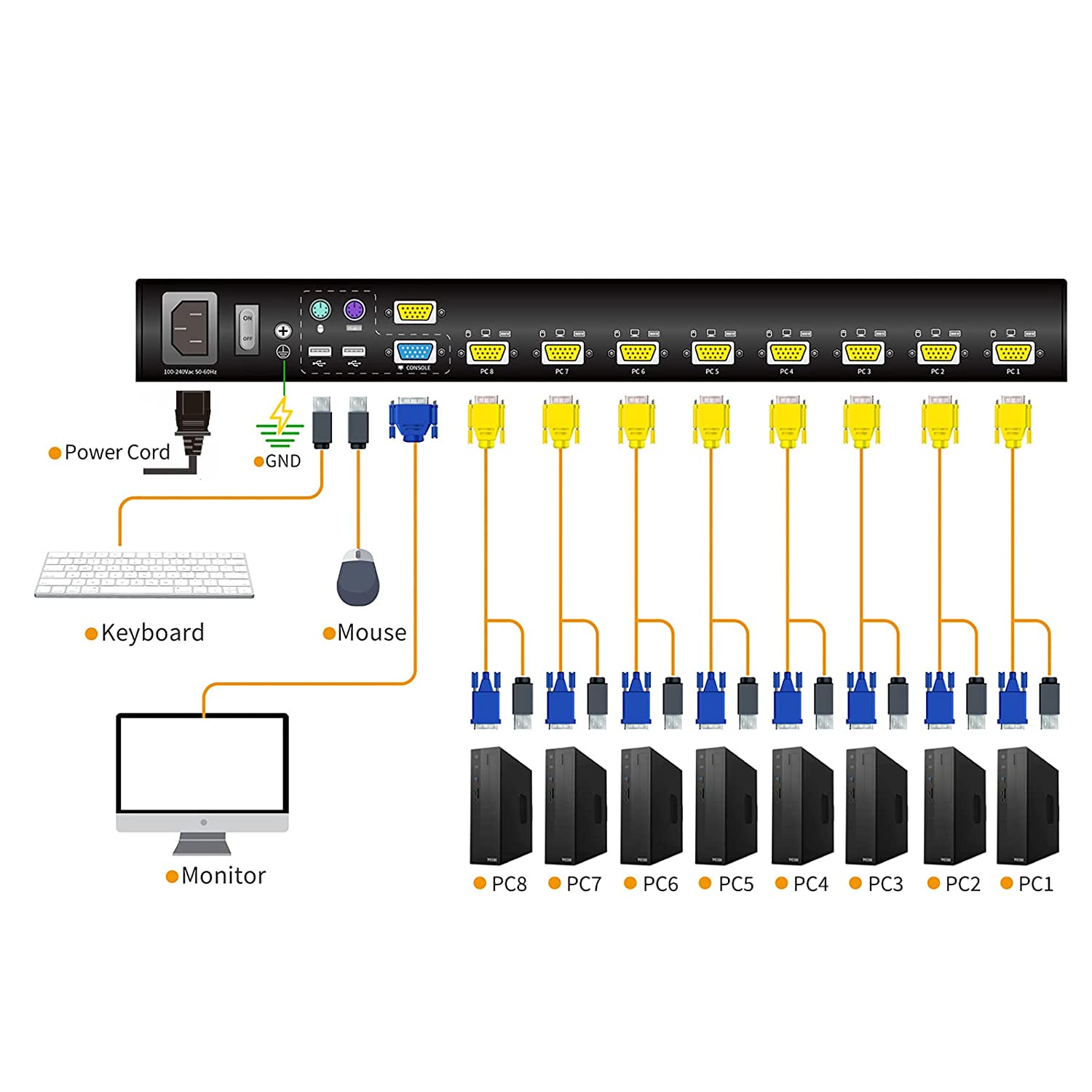

Connection Diagram
Specifications
| Model | TR0817 | |
| Computer connections | Direct | 8 |
| Max | 256 | |
| Port simulation | Keyboard, mouse | PS/2，USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17 "/17.3"/18.5"/19" | |
| Resolution |
17" 1280×1024@60Hz 17.3" 1920 x 1080@60Hz 18.5 1920 x 1080@60Hz 19" 1280 x 1024@60Hz |
|
| Display color | 16.7 M | |
| Brightness | 250cd/m² (T y p) | |
| Contrast ratio | 1000 : 1 (T y p) | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points /inch,( 40 points/mm ) |
| Touchpad with trackball | Eliminates the need for a separate, external mouse | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small number pad) | |
| Port selection | Front panel pushbuttons, hotkeys, OSD menu | |
| Input power | 100V~ 240Vac , 50~60Hz , <1.5A | |
| Power consumption | 17W | |
| Operating temperature | 0~40 ℃ | |
| Store temperature | -20~ 60℃ | |
| Humidity | 0~80% RH, non condensing | |
| Net weight | 13.3kg | |
| Product dimension (W × D × H) | 448mm×581mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V ~ -72V DC | |
