Description
Product ID: TR1617
Description:

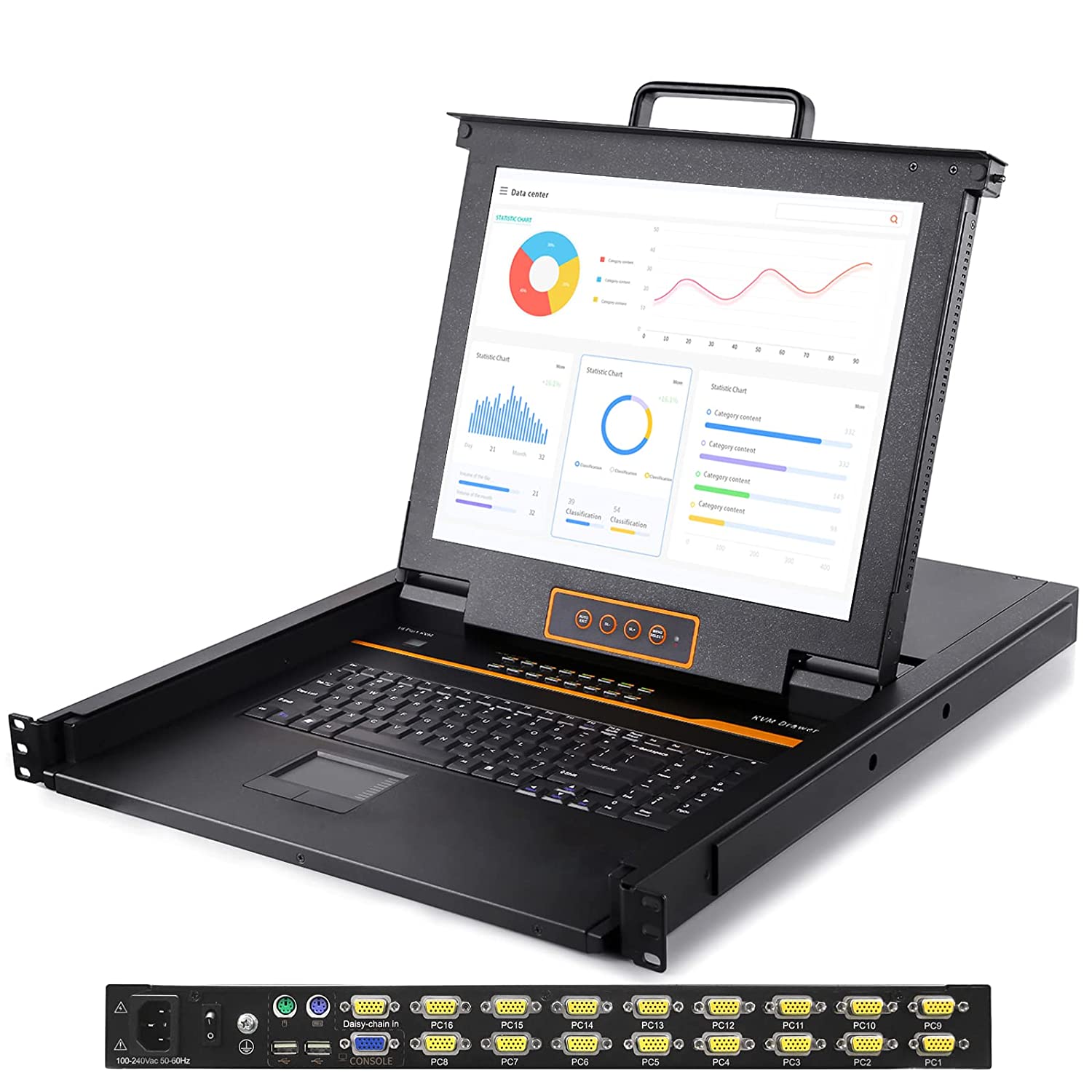

Our 16 port 17'' display LCD KVM console gives you complete access to 16 different computers with the amazing convenience of a lightweight laptop design that’s incredibly compact and keeps everything you need right in front of you.
By integrating the LCD KVM console to the 16 port analog switch you can control up to 512 total computers when configuring additional switches!
The compact design allows you to fit the console in 1U of rack space that will dramatically free up room and save you time, money, and headaches of a cluttered mess.
The high-grade LCD monitor displays 1280x1024 screen resolution for a crystal clear image that won’t let you miss a single detail and is 17” wide so you can optimize productivity by multitasking.
Experience the incredible convenience of control over multiple screens in our 16 port 17'' display LCD KVM console and order yours online today!
About this item

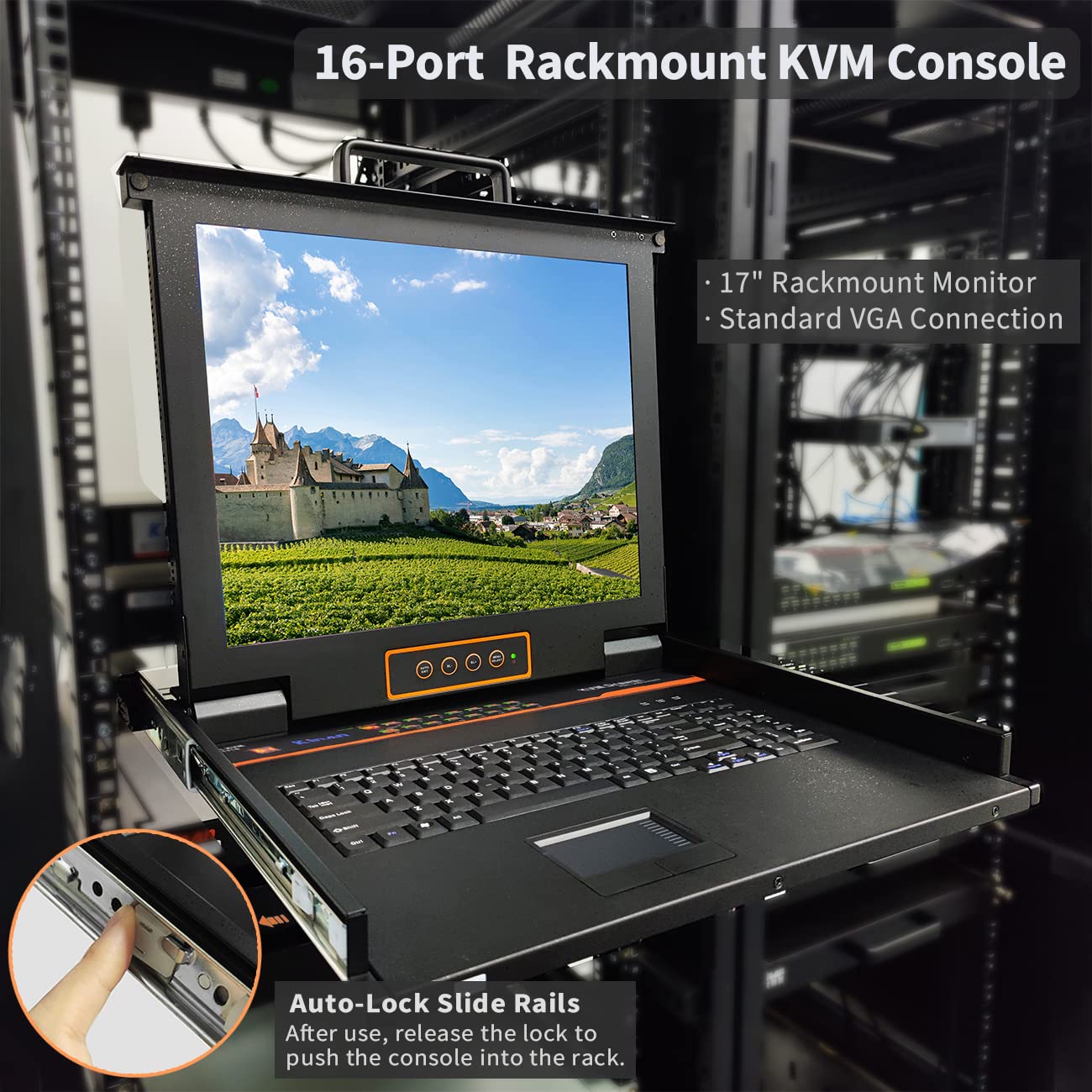

- 【 16-Port Rackmount KVM Console 】 Integrated 17" LCD monitor, keyboard, touchpad and 16-port VGA KVM switch in a single console that occupies only 1U height of rack space. It is designed to access, manage and control 16 computers from a single keyboard, mouse and monitor.
- 【1280x1024@60Hz Resolution】The 17-Inch TFT LCD monitor supports 1280x1024@60Hz resolution，16.7M display colors, 1000:1 (T y p) contrast ratio, 250cd/m² (T y p) brightness,Supports DDC.

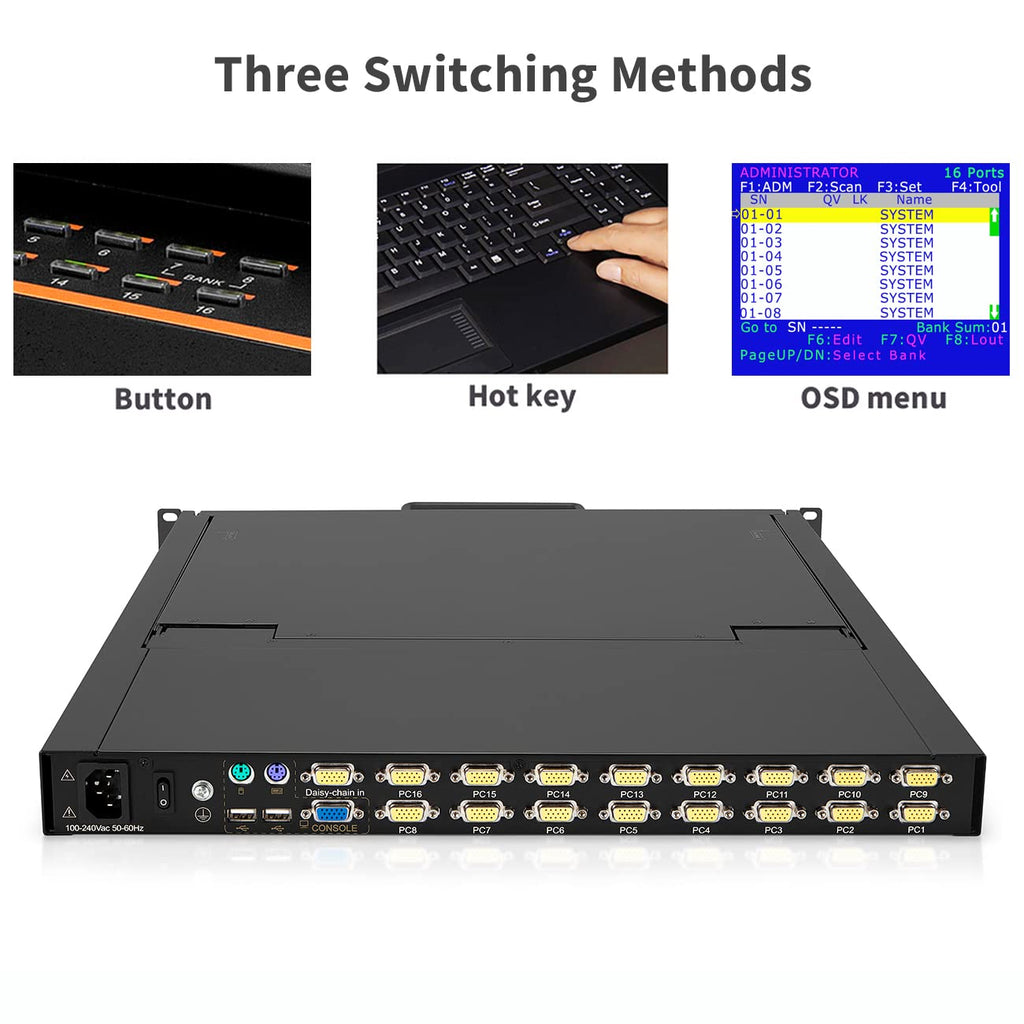

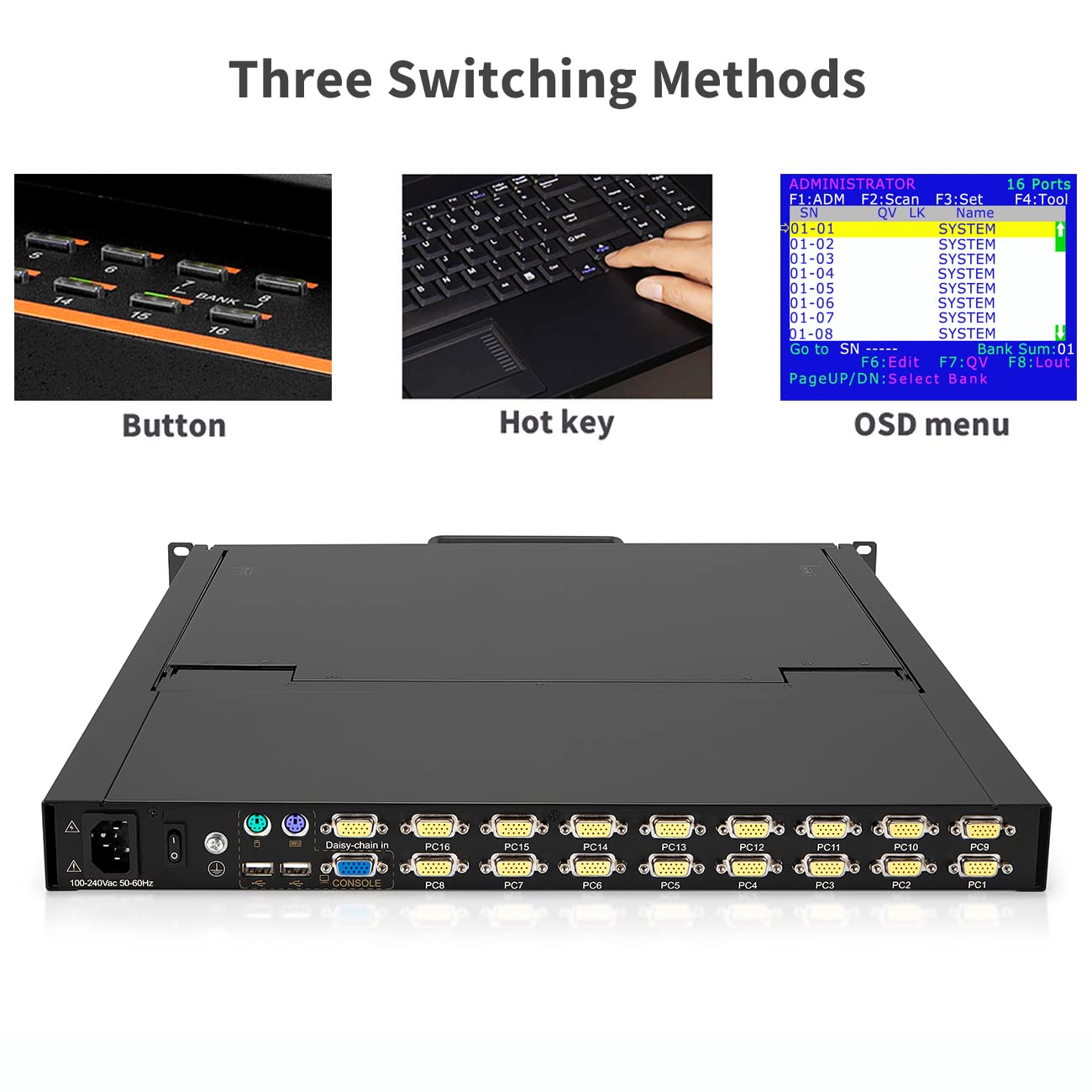

- 【Three switching Functions 】 Easily switches between computers via push buttons with LED indicating the active computer, keyboard hotkeys or on-screen-display (OSD).

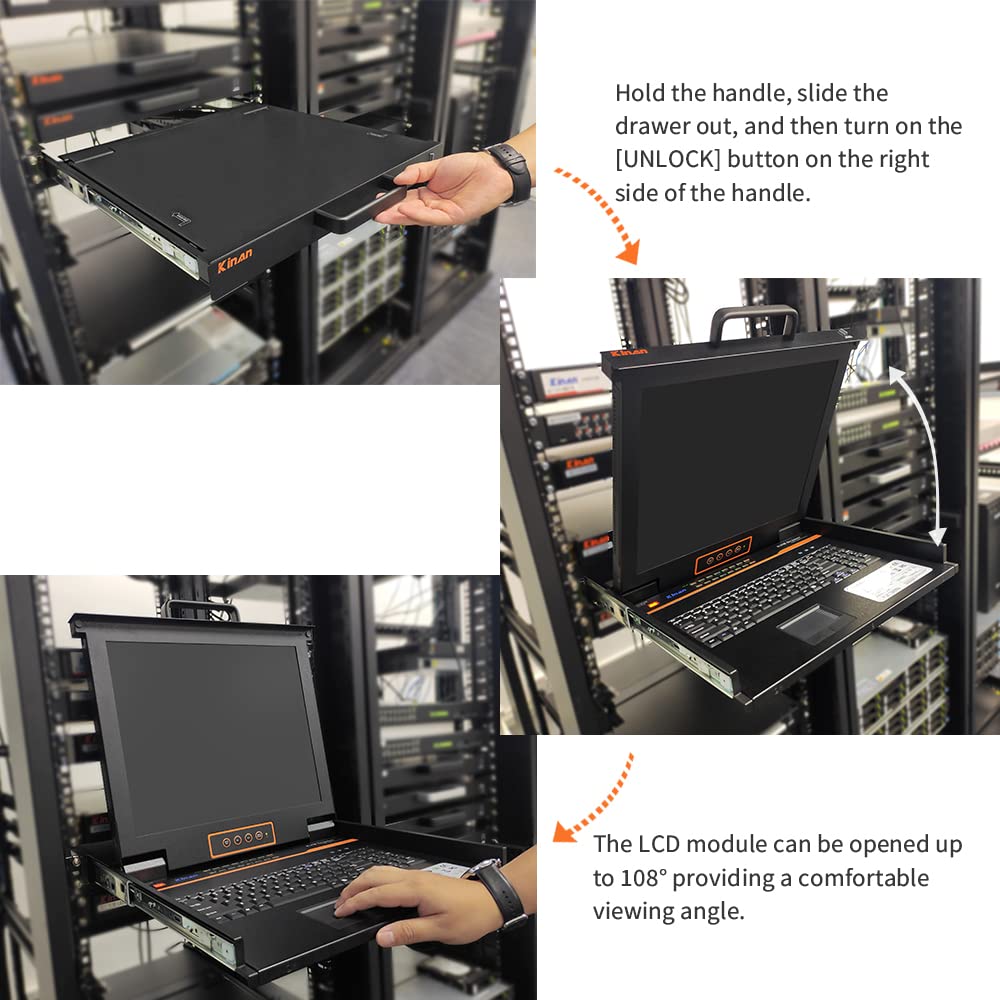

- 【 1U Drawer Design 】 Product dimension (W×D×H):17.6×22.9×1.67 inches [448×581×42.5mm]. [Mount depth]: 22" [56cm] to 35.4" [90cm].
-
【 2-Year Warranty 】Company- ISO9001:2015 and ISO14001:2015 registered. / Compliance - UL, CE & FCC, RoHS2.0 Compliant. Warranty- 2 years warranty is provided.Feel free to contact us via Amazon with any questions.

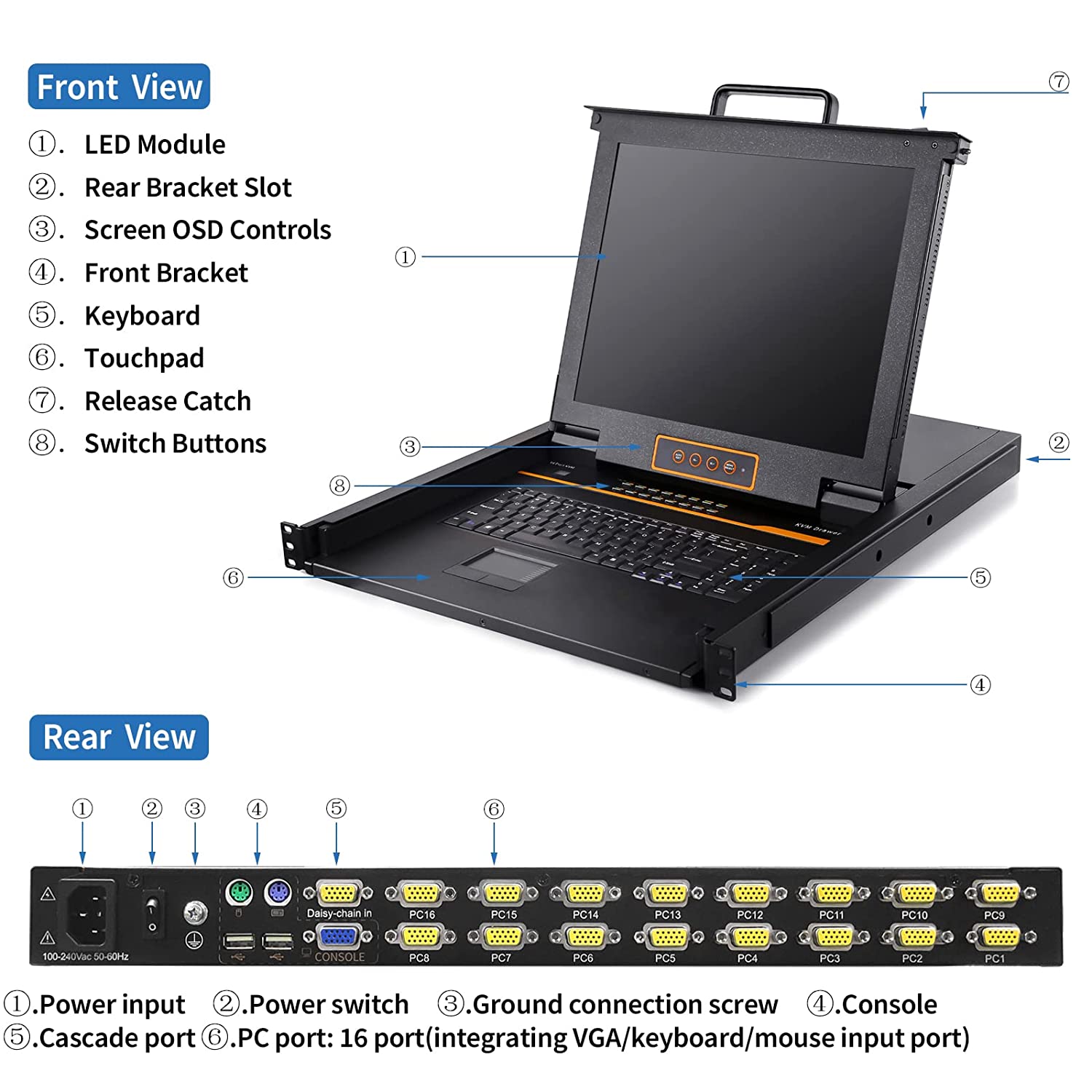

Product Diagram
Hardware feature
- One 16 port KVM switch is integrated into 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
- Standard VGA connector-Connect to a server or computer via a standard VGA connector
- Quick release tabs-Insert or remove the device with ease
High-Performance Touchpad
- Touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse
Keyboard
- Standard US keyboard
- Full size 99 keys keyboard with integrated number pad
Management Way
- Convenient computer switching via front panel LEDs, OSD menu and mouse
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot-pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
- 17” TFT LCD monitor with a highlight, high definition, and high resolution
- Resolution is up to 1280 x 1024 @75Hz
Cascade Feature
- Directly access and control up to 16 servers with single 17 Inch 16 ports combo LCD KVM Console
- By cascading to another 31 switches, as many as 512 servers can be controlled
Security
- Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each

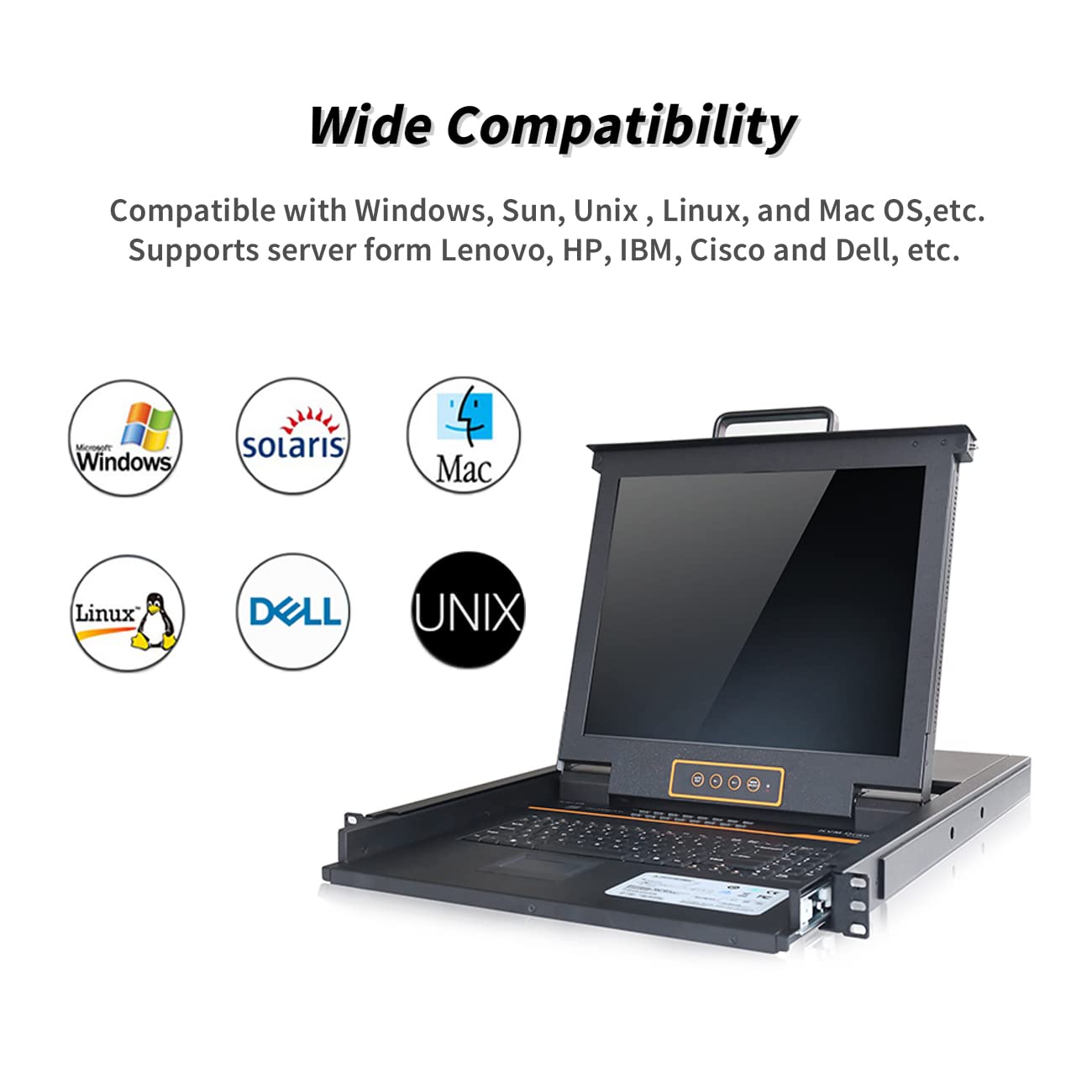

Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco, and Dell, etc.
|
Computer connections |
Direct |
16 |
|
Max |
512 |
|
|
Port simulation |
Keyboard, mouse |
PS/2，USB |
|
LCD monitor |
LCD model |
SXGA TFT |
|
View area |
17 " |
|
|
Resolution |
1280×1024@60Hz |
|
|
Display color |
16.7 M |
|
|
Brightness |
250cd/m² (T y p) |
|
|
Contrast ratio |
1000 : 1 (T y p) |
|
|
Pixel pitch(mm) |
0.264(H) × 0.264(W) |
|
|
Mouse |
X/Y resolution |
>1000 points /inch,( 40 points/mm ) |
|
Touchpad with trackball |
Eliminates the need for a separate, external mouse |
|
|
Keyboard |
99 keys (82 keys main keyboard +17 independent small number pad) |
|
|
Port selection |
Front panel pushbuttons, hotkeys, OSD menu |
|
|
Input power |
100V~ 240Vac , 50~60Hz , <1.5A |
|
|
Power consumption |
23W |
|
|
Operating temperature |
0~40 ℃ |
|
|
Store temperature |
-20~ 60℃ |
|
|
Humidity |
0~80% RH, non-condensing |
|
|
Net weight |
13.7kg |
|
|
Product dimension (W × D × H) |
448mm×581mm×42.5mm |
|
|
Package dimension (W × D × H) |
765mm×615mm×185mm |
|
|
Optional power input |
-36V~ -72V DC |
|
