Description
Product ID: TR1617W
Description:

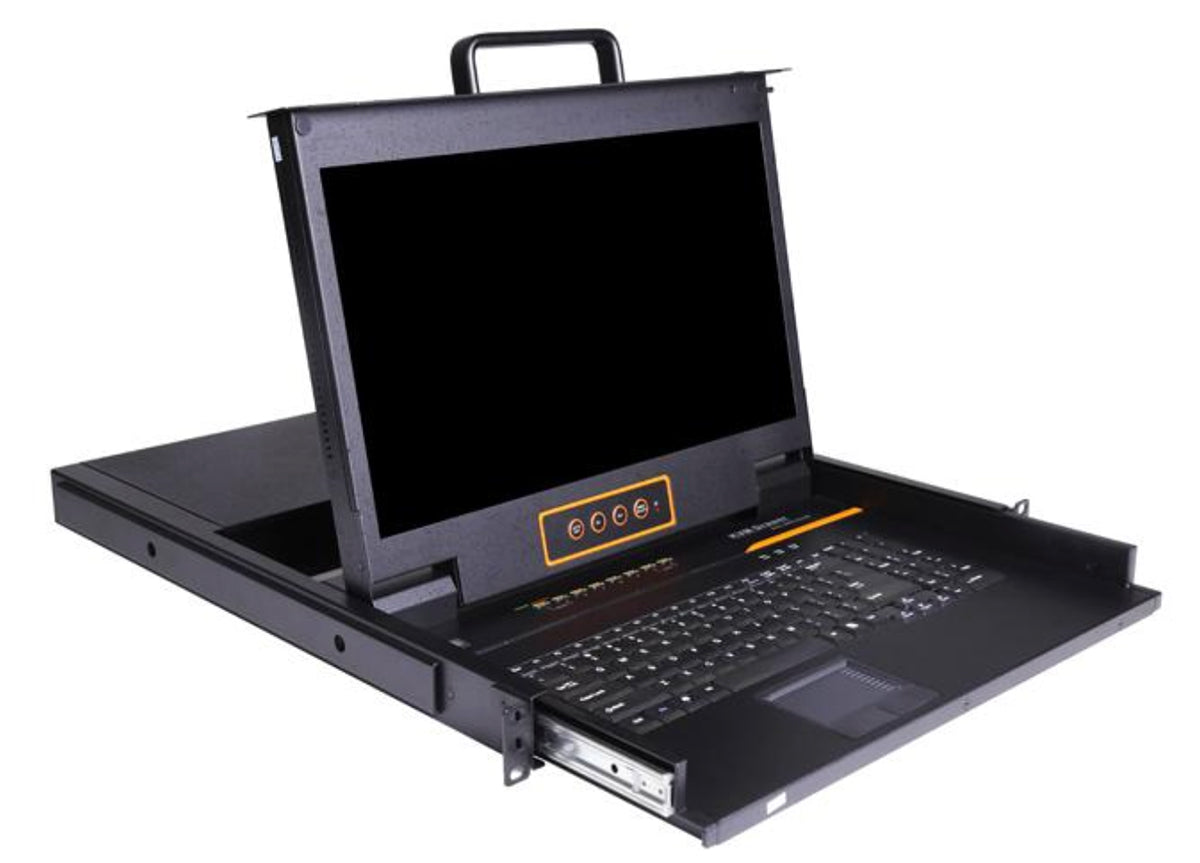

If you’re looking for a streamlined way to manage up to 16 different computers from a single workstation, then our 16 port 17.3" 1080P HD LCD KVM switch is just what you need.
By integrating a KVM analog switch with an HD LCD panel monitor, you can maintain control of 16 PCs at once using a single KVM console that can easily fit into 1U of rack space.
Even more, you can daisy chain additional switches to the console and control a whopping total of 512 computer systems with centralized power!
Going in and out of PCs is a breeze. You can either press the front panel buttons, use the mouse, or OSD menu to switch computers for easy access you’ve never had before.
Displaying in premier 1080p video resolution and a wide 17.3” monitor, you’ll have a crystal clear image over all your daily management tasks.
Manage all your daily tasks with control over 16 computers in our 16 port 17.3" 1080P HD LCD KVM switch and order yours online today!
Diagram
Product Features
-
16 port KVM switch is integrated with 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console.
-

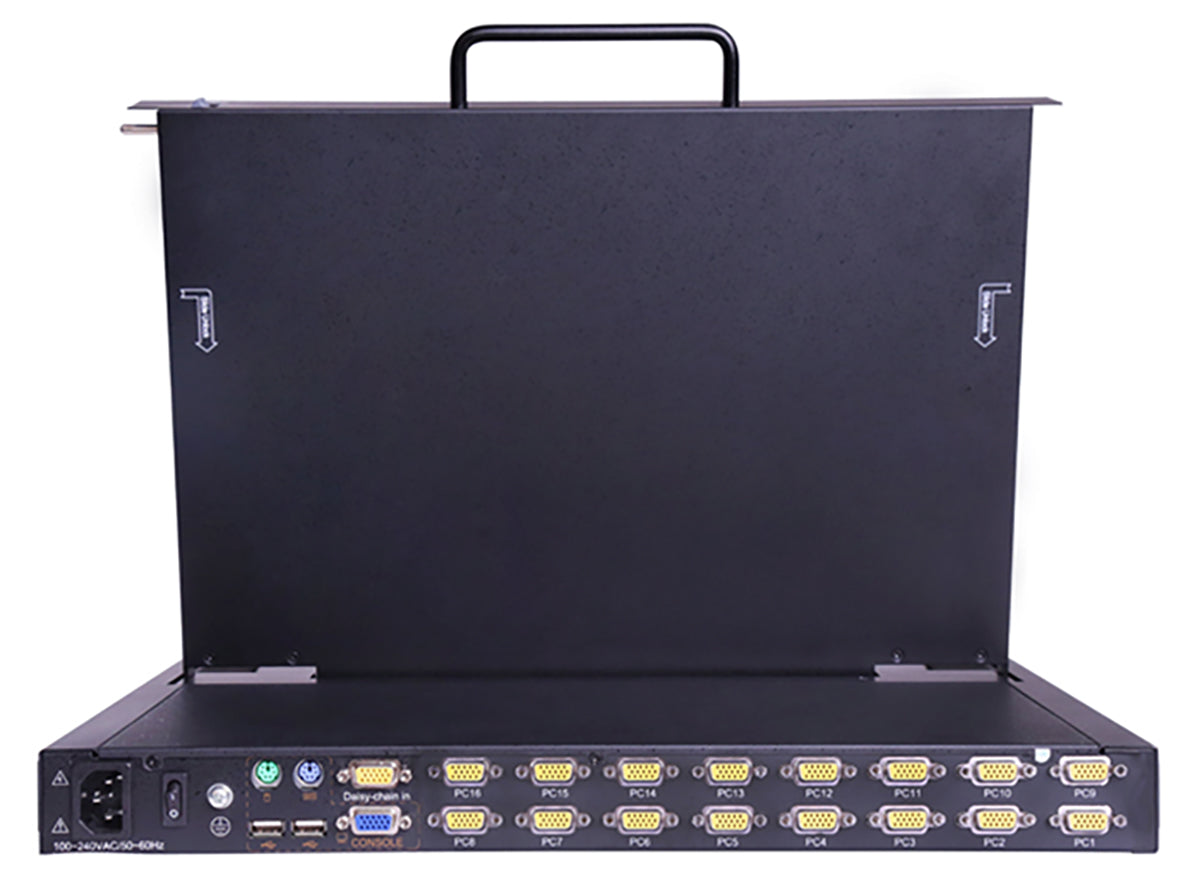

Standard VGA connector-Connect to a server or computer via a standard VGA connector
-
Quick release tabs-Insert or remove the device with ease
High-Performance Touchpad
-
Integrated touchpad with scroll wheel functionality- Eliminates the need for a separate, external mouse
Keyboard
-
Standard US keyboard
-
Full size 99 keys keyboard with integrated number pad
Management Way
-
Convenient computer switching via front panel LEDs, OSD menu, and mouse
-
Auto scan feature for monitoring user-selected computers
-
Broadcast mode--operations simultaneously performed on all selected computers
-
Hot-pluggable --add or remove computers without having to power down the switch
-
Quickly choose your computer by naming the server or inputting the SN number of the server
-
On-Screen Display (OSD) adjustments-Adjust the on-screen image,
including:auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
-
17.3” TFT LCD monitor with a highlight, high definition, and high resolution
-
Resolution is up to 1920 x 1080 @60Hz
Security
-
Two-level password security--only authorized users to view and control computers; up to four users and an administrator with a separate profile for each
Cascade Features
-
Directly access and control up to 16 servers or computers with single TR1617W
-
By cascading to another 31 additional KVM switches, it can control up to 512 servers.
Wide Compatibility
-
Multi-platform Support-Compatible with Windows, Sun, Unix, and Linux
-
Supports servers from Lenovo, HUA WEI, HP, IBM, Cisco, Dell, etc.
