Description
The 12G-SDI to HDMI 2.0 Converter is a broadcast-grade interface converter engineered specifically for the professional video industry. Powered by an advanced FPGA video processing engine, it seamlessly converts a single 12G-SDI input into one HDMI 2.0 output.
Additionally, it features integrated audio de-embedding, extracting embedded audio into a standard 6.35mm (1/4") analog audio output. This enables direct connectivity to professional audio processors or headphones for real-time monitoring.
Converter Applications / Target Use Cases
- This device is widely utilized across a variety of high-performance visual environments, including:
- Broadcast & Live Production: TV program editing and post-production, live broadcasting, and newsroom media centers.
- Medical Imaging: 4K endoscopic visual systems and medical teaching/demonstration setups.
- Pro AV & Staging: Large-scale multimedia display systems, digital signage, live stage performances, and AV entertainment hubs.
- Enterprise & Security: Sports venues, high-definition video conferencing, and mission-critical security surveillance systems.

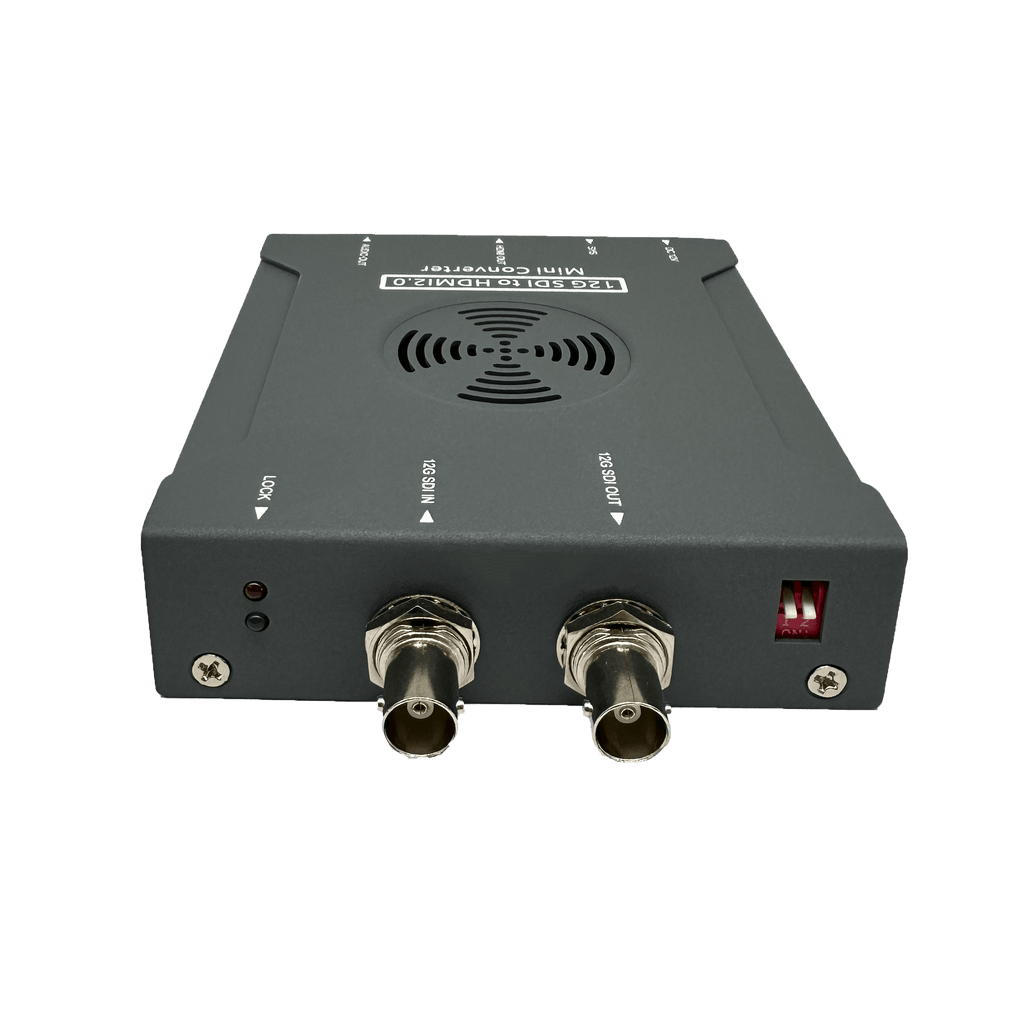

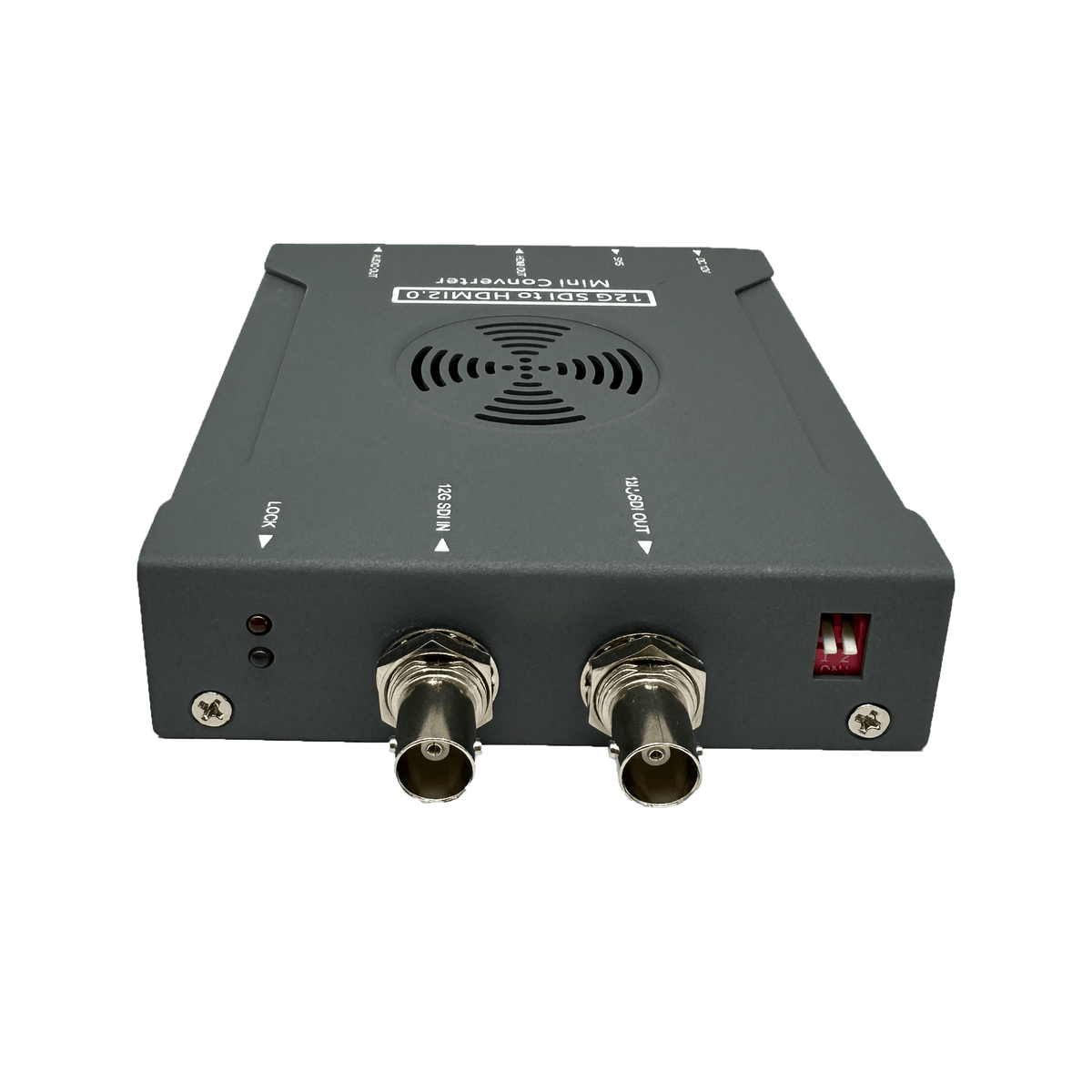

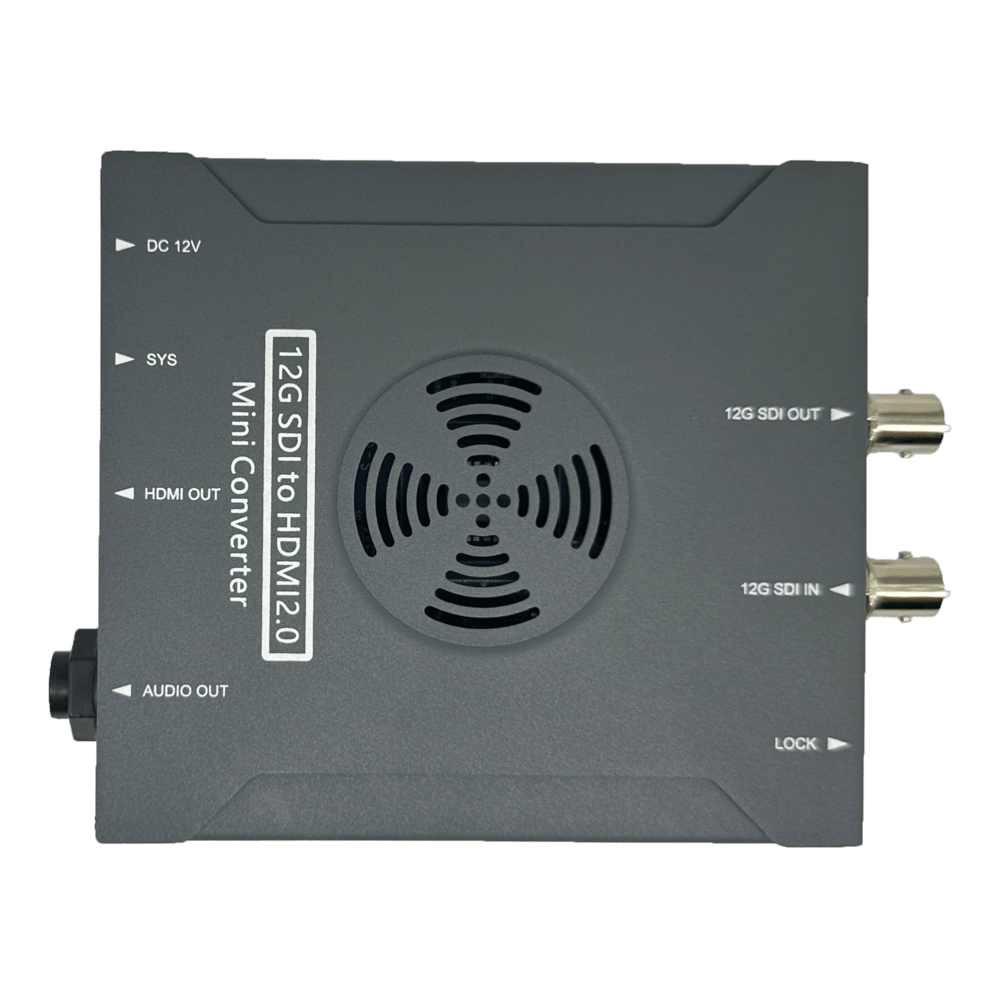

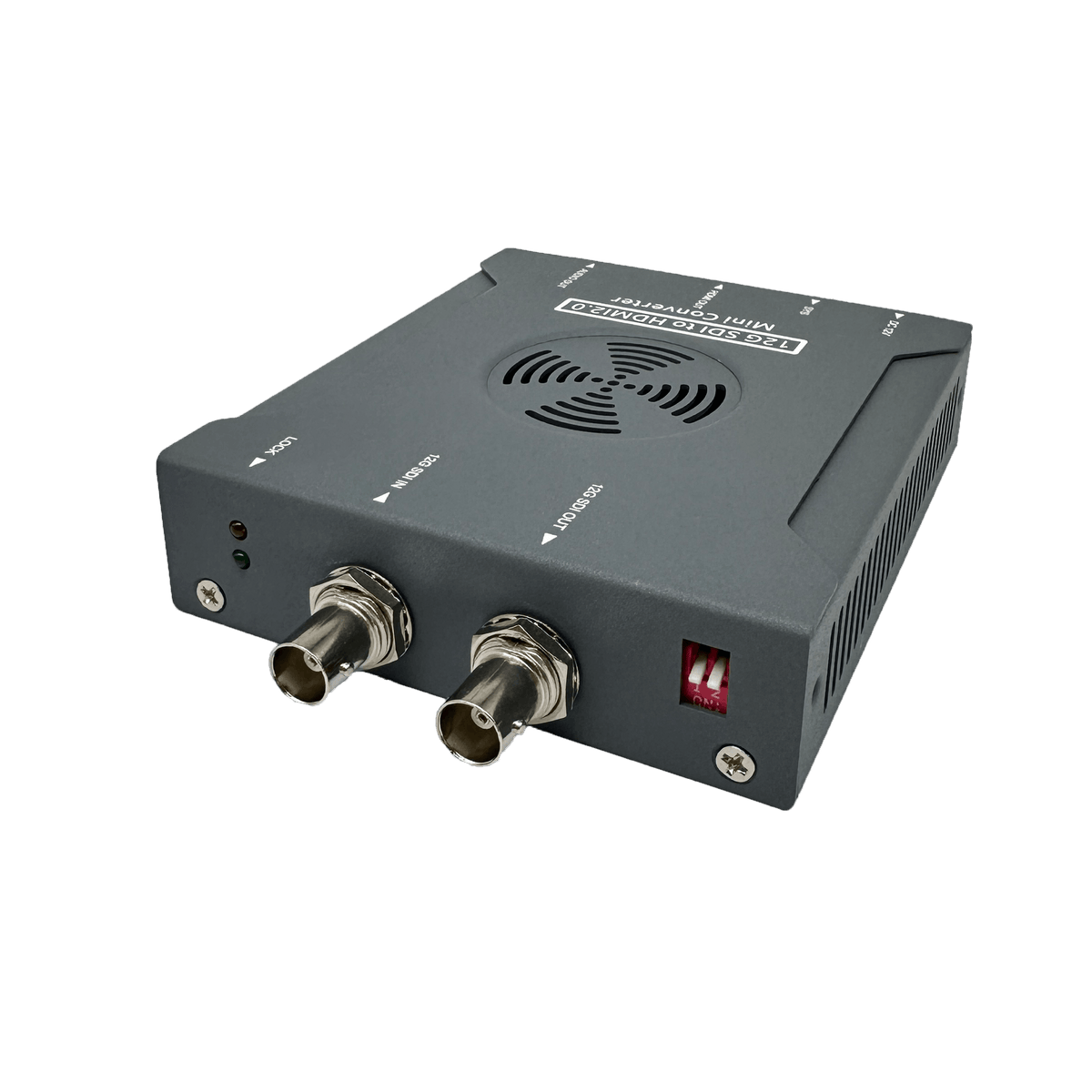

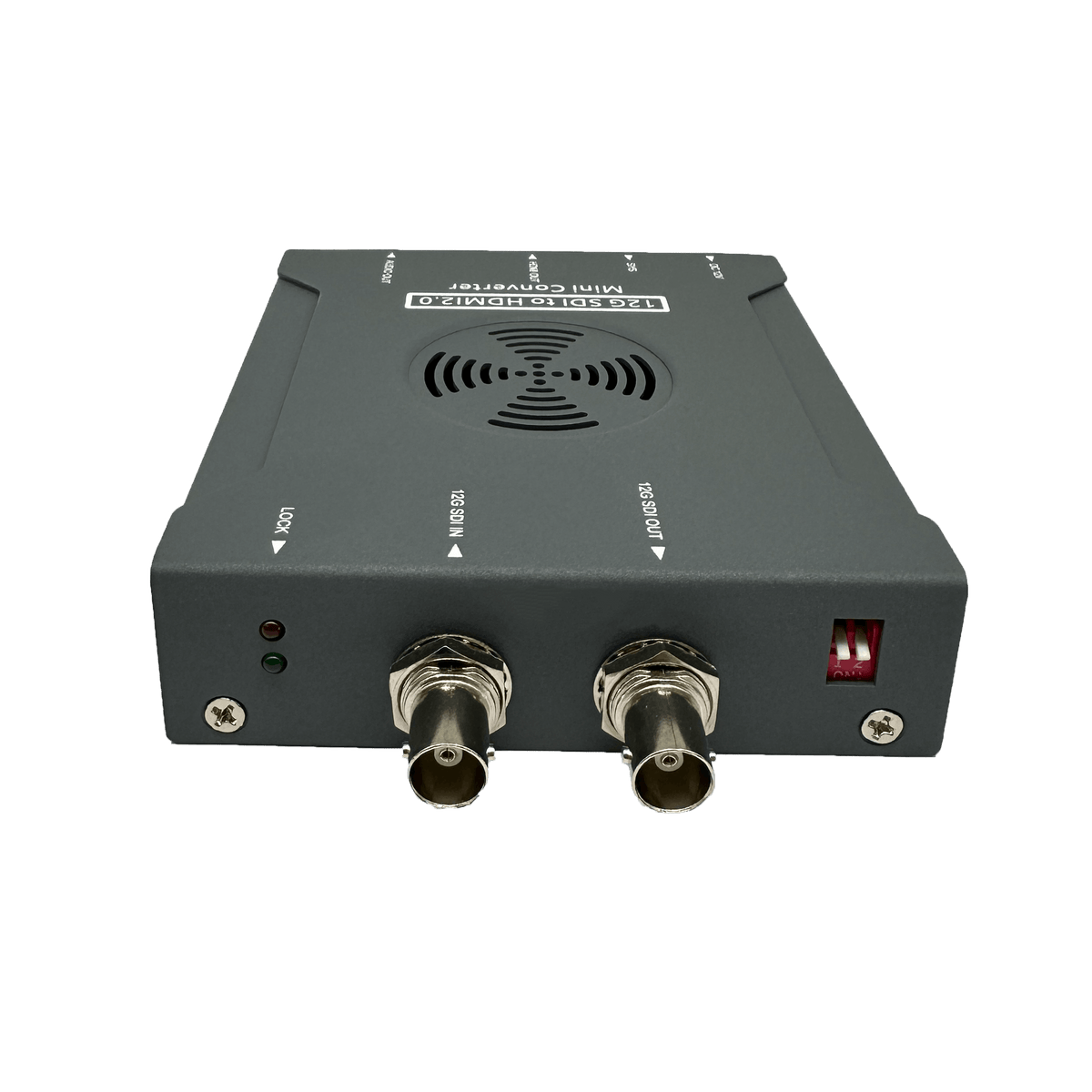

Converter Product Interface:
|
Video input: 12GSDI
Video output: HDMI2.0/12GSDI looped out
Audio output: 6.5MM
Power input: DC 12V 1A
Upgrade port: SYS
|
Converter Product Features
- 12GSDI input. The maximum resolution is 2160P60HZ
- Supports 1-road 12GSDI loopout
- Supports 1 road HDMI2.0 output
- Supports 1 road unembedded 6.5MM un-embedded output
- Supports HDMI2.0 cable balancing
- Supports embedded audio
- Supports SDI clock recovery
- Supports sound and image synchronization
- Supports remote upgrade
- Supports the plug-and-play function and hot swap
- Supports LED light status display
- Support OEM
- Supports customization of special functions
Product Specification
| Input interface | 12GSDI 75-5Ω |
| Input resolution | Maximum support 2160P60HZ, input adaptive |
| SDI rate | 143Mbps～11.8Gb/s |
| SDI standard | SMPTE 292M、SMPTE 372M、SMPTE 424M、SMPTE ST-2081、SMPTE ST-2082 |
| Quiver |
≤ 0.2UI
|
| Output Interface |
HDMI2.0/12GSDI
|
|
Output resolution
|
2160p60/2160p50/2160p30/2160p25HZ;
1080p60/1080p50/1080p30/1080i60/1080i50HZ;720p60/720p50HZ
|
|
Video bandwidth
|
18Gbps
|
|
HDMI color space
|
YUV4：2：2;RGB4:4:4
|
|
Signal amplitude
|
800mVр-р
|
|
Audio interface
|
6.5MM analog audio interface
|
|
Audio sampling rate
|
48KHZ
|
|
Operating temperature
|
0℃～+50℃
|
|
Working humidity
|
20% ~ 70%RH does not coagulate
|
|
Storage temperature
|
-20℃～+70℃
|
|
Storage humidity
|
0% ~ 90%RH does not coagulate
|
|
Power source
|
DC12V1A
|
|
Power
|
3W
|
|
Size
|
Length * Width * Height 110*99*25MM
|
|
Weight
|
Equipment host 0.35KG; Complete package 0.75KG
|
